40739
208- to 240-volt two-burner countertop electric hot plate
The Vollrath® electric hot plate is powerful, compact and convenient.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

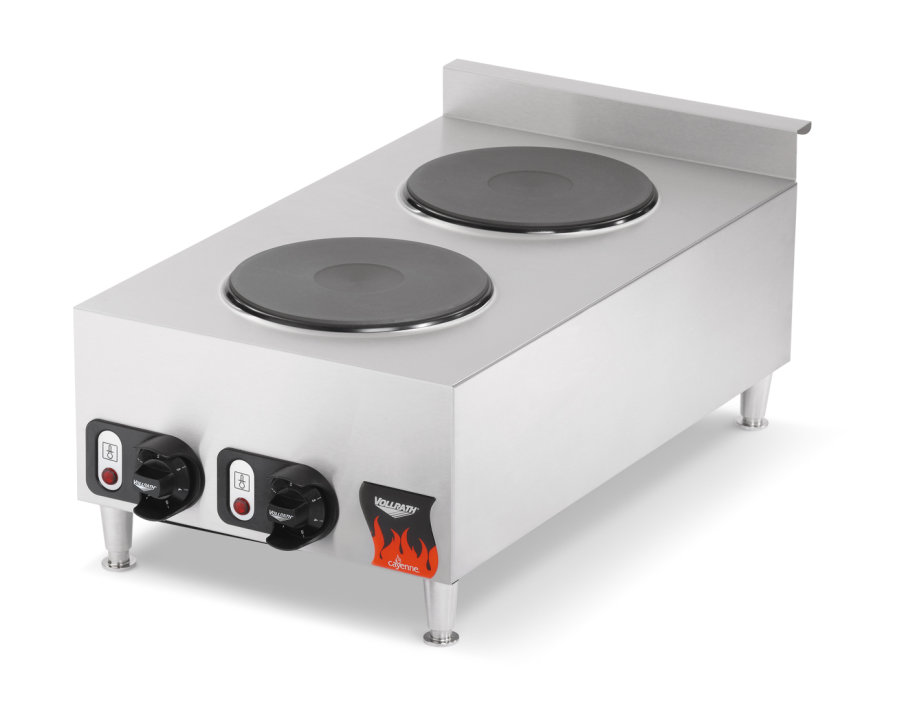

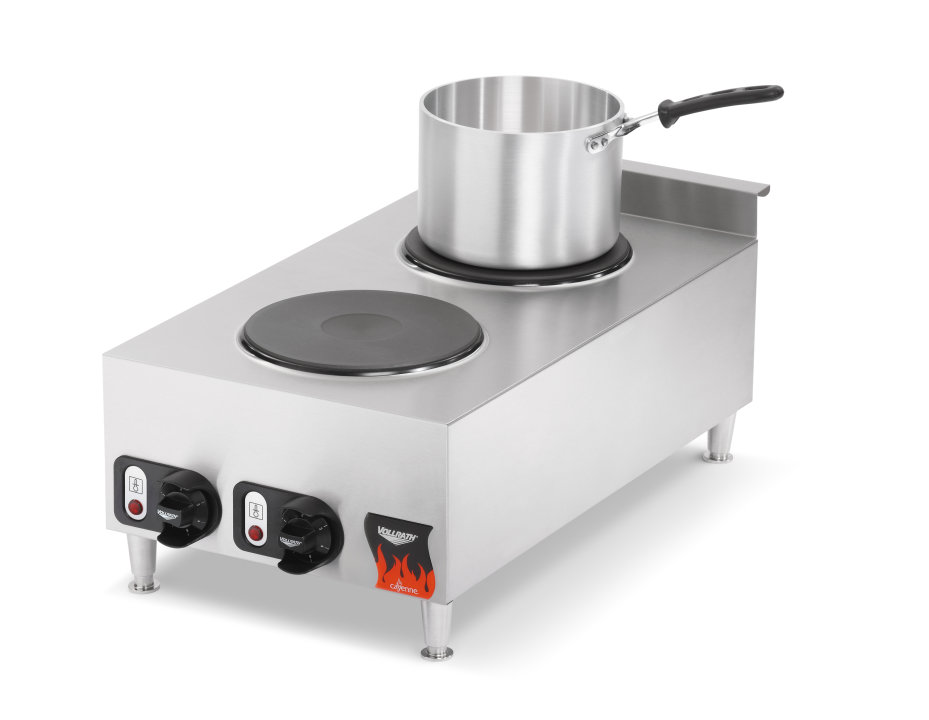

208- to 240-volt two-burner countertop electric hot plate
The Vollrath® electric hot plate is powerful, compact and convenient. This narrow unit features front and back solid plate burners that save space and heat quickly. Featuring individual controls for each burner, this unit allows you to cook multiple foods at one time. The body of this unit is made of durable stainless steel, and the heavy-duty legs are adjustable, providing height flexibility based on preference. A rear safety skirt protects the internal components, and the flat surface is easy to clean, saving you valuable time.
Designed for a variety of foods, stews, and sauces
Durable stainless steel body is built to last
All units ship with cord and plug installed
9-inch solid plate burners heat quickly and are easy to clean
Legs adjust from 4 to 5½ inches, allowing height flexibility based on your preference
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | STA8002 |
| UPC | 029419720248 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 15 x 27.375 x 11.375 |
| (W) Width (IN) | 15 |
| (D) Depth (IN) | 27.37 |
| (H) Height (IN) | 11.37 |
| (DI) Diameter | 8.6875 |
| (HB) Height of Body (IN) | 9 |
| Overall Dimensions (CM) | 38.1 x 69.5 x 28.9 |
| (W) Width (CM) | 38.1 |
| (D) Depth (CM) | 69.5 |
| (H) Height (CM) | 28.9 |
| (DI) Diameter (CM) | 22 |
| (HB) Height of Body (CM) | 22.9 |
Electrical
| Name | Value |
|---|---|
| Amps | 14.4 - 16.7 |
| Cord Length (IN) | 36 |
| Cord Length (CM) | 91.4 |
| Hz | 60 |
| Plug | NEMA 6-30P |
| Voltage | 208-240 |
| Watts | 3000-4000 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Electrical Components |
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 12 |
| Case Height | 17.375 |
| Case Length | 32 |
| Case Lot Cube (ft.) | 3.86 |
| Case Lot Weight (lbs.) | 35.9 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| POWER CORD SAA8024 (NEMA6-30P) | XSAA8030 | $231.30 |
| CONTROL PANEL FASCIA - BLACK | XAA0009 | $31.70 |
| GRIDDLE ELECTRIC LEG | XFTA0010 | $58.80 |
| STOVE PLT ELEMENT STA8002 240V | XSTA0001 | $225.00 |
| PILOT LIGHT 220V (RED) | XAA0002 | $18.10 |
| CABLE RESTRAINT COA8005 | XCOA5012 | $73.80 |
| VOLLRATH CONTROL KNOB STA8002 | XSTA0006 | $18.40 |
| CONNECTOR BLOCK FTA8036/COA800 | XFTA0002 | $28.30 |
| REGULATOR SWITCH STA8002 | XSTA0003 | $25.90 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
