69507

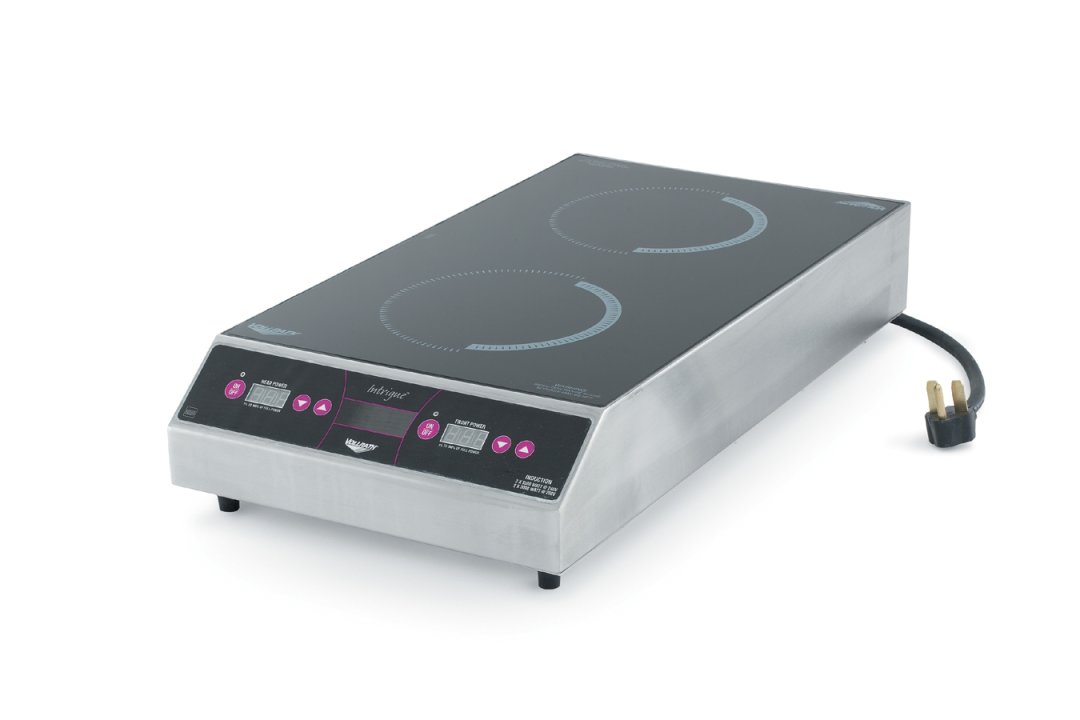

208- to 240-volt 3500-watt Ultra-Series countertop front-to-back dual-hob induction range
Designed for large-volume and heavy-duty usage, the Ultra-Series countertop dual-hob induction range by Vollrath packs an impressive amount of power into a small footprint.
This device complies with Part 18 of the FCC Rules
This symbol represents products that are certified to meet safe levels of radiofrequency radiation based on FCC regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
208- to 240-volt 3500-watt Ultra-Series countertop front-to-back dual-hob induction range
Designed for large-volume and heavy-duty usage, the Ultra-Series countertop dual-hob induction range by Vollrath packs an impressive amount of power into a small footprint. There are 100 power settings for precise heating and control, and the induction technology provides fast, efficient heat. Built for constant use, this induction range features continuous-duty circuitry that allows for non-stop cooking. Smooth digital controls are easy to use and prevent accidental temperature adjustments, helping you achieve superior results with ease. The timer shuts the unit off at the end of the cycle, and a slew of built-in safety features help ensure safe operation. With the smooth top and streamlined design, this sleek induction range looks great in any kitchen.
Designed for large-volume and heavy-duty usage
Front-to-back dual-hob design saves space
Induction technology offers fast, efficient heat
100 power settings for precise heating and control
Continuous-duty circuitry allows non-stop cooking
1-180 minute timer shuts unit off at end of cycle
Hot-surface warning, 3-hour shutoff, and empty pan auto-shutoff safety features extend the life of the unit
Sleek digital controls are easy to use and prevent accidental adjustments
Fits pans with a bottom diameter of 12 inches or less
6-foot cord and plug
Made in the USA
NSF-certified
UL Listed
Maximum pan diameter is provided as a guideline for achieving maximum performance. Other factors impact performance including pan construction material, the density and volume of the food in the pan, ambient temperature and food temperature.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419398072 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 15.875 x 29.75 x 5.812 |
| (W) Width (IN) | 15.87 |
| (D) Depth (IN) | 29.75 |
| (D2) Secondary Depth (IN) | 26.75 |

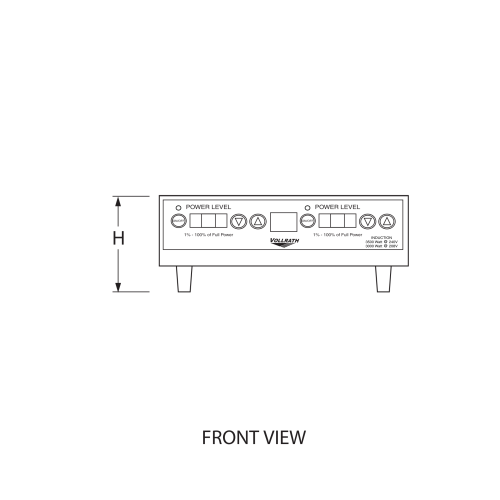

| (H) Height (IN) | 5.81 |
| (MPD) Maximum Pan Bottom Diameter (IN) | 12 |
| (HB) Height of Body (IN) | 4.875 |
| Overall Dimensions (CM) | 40.4 x 75.6 x 14.8 |
| (W) Width (CM) | 40.4 |
| (D) Depth (CM) | 75.6 |
| (D2) Secondary Depth (CM) | 67.9 |
| (H) Height (CM) | 14.8 |
| (MPD) Maximum Pan Bottom Diameter (CM) | 30.5 |
| (HB) Height of Body (CM) | 12.4 |
Electrical
| Name | Value |
|---|---|
| Amps | 29.2 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Hz | 50/60 |
| kW | 3.0 - 3.5 per hob |
| Plug | NEMA 6-50P |
| Voltage | 208-240 |
| Watts | 3500 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 35.5 |
| Case Height | 10 |
| Case Length | 21.5 |
| Case Lot Cube (ft.) | 4.42 |
| Case Lot Weight (lbs.) | 45.0 |
Product Parts
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
