69504F
Discontinued208- to 240-volt 3500-watt Ultra-Series fajita skillet heater induction range
The Vollrath® Ultra-Series fajita skillet heater induction range creates the perfect sizzle for your fajitas.
This device complies with Part 18 of the FCC Rules
This symbol represents products that are certified to meet safe levels of radiofrequency radiation based on FCC regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
*Note: These units are specifically designed for heating skillets to sizzle temperatures from room temperature, where the skillets are heated, then finished foods are plated, and oil or water is added to create the fajita sizzle effect. They are not designed for use in other applications or to directly cook the food.

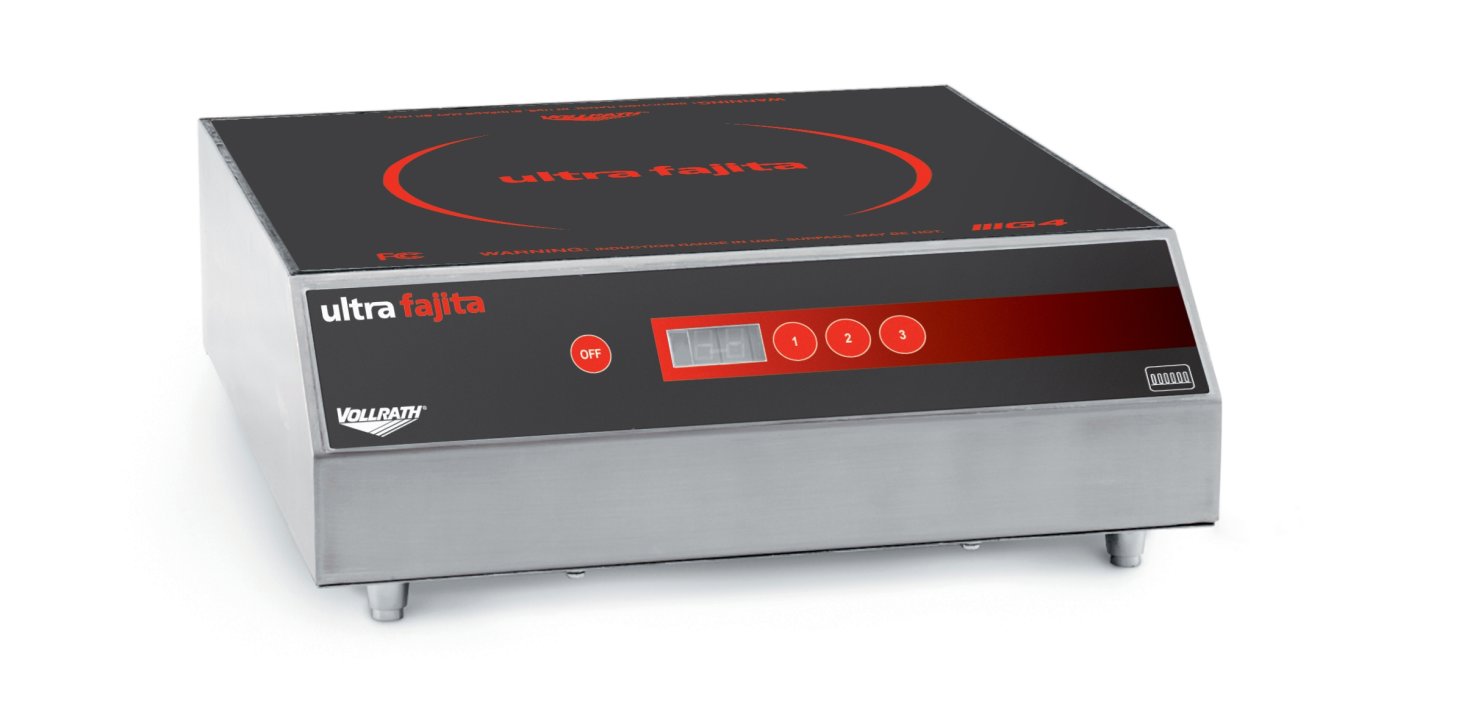

208- to 240-volt 3500-watt Ultra-Series fajita skillet heater induction range
The Vollrath® Ultra-Series fajita skillet heater induction range creates the perfect sizzle for your fajitas. This impressive unit has three preprogrammed temperature settings for increased versatility and promises precise, high-quality results every time. The one-touch digital controls keep things simple while providing fast heat. Several safety features extend the life of the unit and improve the overall experience. The durable stainless steel body is built to last, and the ceramic top is easy to clean. Rubber feet prevent movement and improve stability. Designed to heat induction-ready skillets to sizzling temperatures, simply plate your cooked food and add oil or water to create the desired effect.
Designed to create the perfect sizzle for your fajita dishes
Digital, one-touch controls are easy to use
Hot-surface warning, small article detection, and empty pan auto-shutoff safety features extend the life of the unit
Ranges will work with the two standard fajita skillet styles and will heat room temperature pans to proper sizzle temperatures*
Fits pans with a bottom diameter of 14 inches or less
Three preset temperature settings provide 3000 to 3500 watts of power: Setting 1: 80 seconds, 450°F - 550°F; Setting 2: 30 Seconds, 300°F - 350°F; Setting 3: 60 Seconds, 400°F - 500°F
Maximum pan diameter is provided as a guideline for achieving maximum performance. Other factors impact performance including pan construction material, the density and volume of the food in the pan, ambient temperature and food temperature.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419839124 |

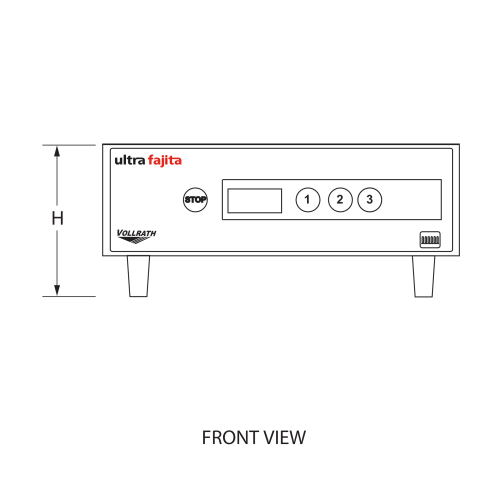

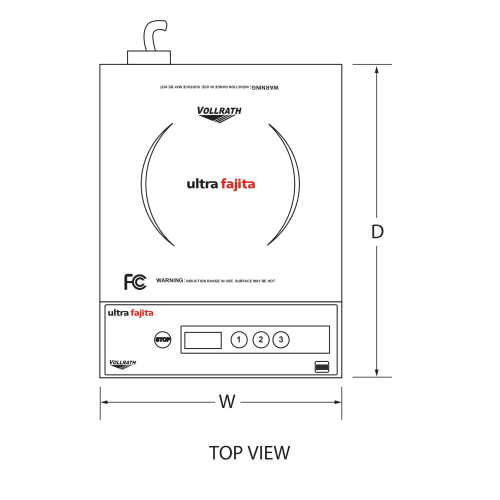

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 15.875 x 18.5 x 5.75 |
| (W) Width (IN) | 15.87 |
| (D) Depth (IN) | 18.5 |
| (H) Height (IN) | 5.75 |
| (H2) Secondary Height (IN) | 4.75 |
| (DCS) Cooking Surface Depth (IN) | 15 |
| (HB) Height of Body (IN) | 4.75 |
| Overall Dimensions (CM) | 40.3 x 47 x 14.6 |
| (W) Width (CM) | 40.3 |
| (D) Depth (CM) | 47 |
| (H) Height (CM) | 14.6 |
| (H2) Secondary Height (CM) | 12.1 |
| (DCS) Cooking Surface Depth (CM) | 38.1 |
| (HB) Height of Body (CM) | 12.1 |
Electrical
| Name | Value |
|---|---|
| Amps | 14.6 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 182.8 |
| kW | 3.0 - 3.5 |
| Plug | NEMA 6-20P |
| Voltage | 208 - 240 |
| Watts | 3000 - 3500 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 24 |
| Case Height | 10 |
| Case Length | 20 |
| Case Lot Cube (ft.) | 2.78 |
| Case Lot Weight (lbs.) | 26.0 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| LED VOLLRATH UNITS | 250312-1 | $32.90 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
Customer Questions
Be the first to ask a question
