40710-C
DiscontinuedDouble-well 208- to 240-volt 15-lb medium-duty Cayenne® countertop deep fryer - Canada
The double-well 15-lb Cayenne countertop deep fryer by Vollrath efficiently prepares a variety of fried foods while saving precious counter space.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

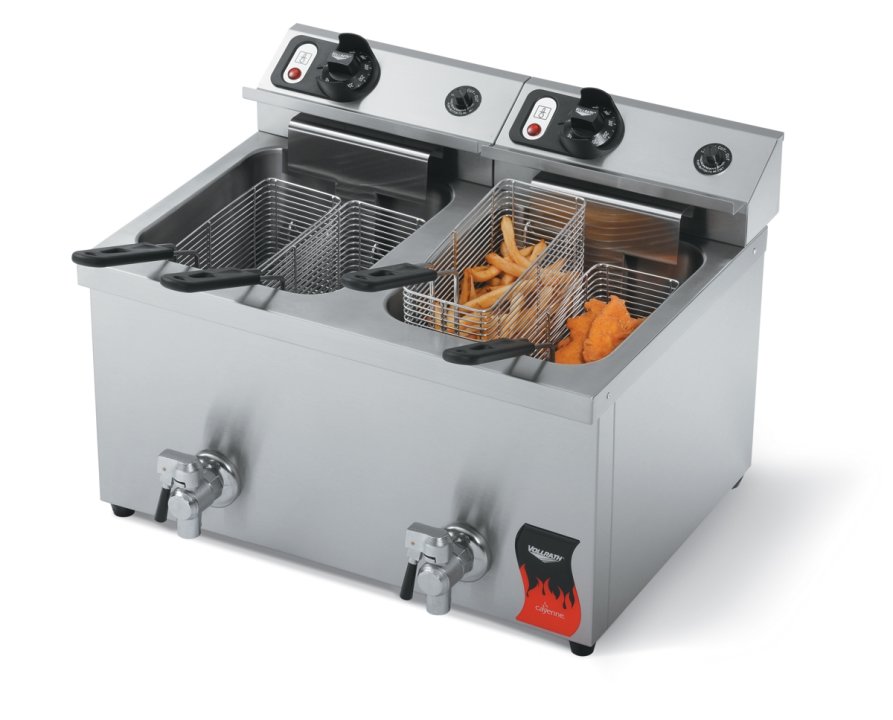

Double-well 208- to 240-volt 15-lb medium-duty Cayenne® countertop deep fryer - Canada
The double-well 15-lb Cayenne countertop deep fryer by Vollrath efficiently prepares a variety of fried foods while saving precious counter space. This fryer is thermostatically controlled to 374°F and has quick heating and recovery times, making this unit suitable even for frozen foods. A designated cold zone keeps oil fresh longer, improving quality and taste. This double-well unit increases volume and variety while keeping food and flavors separate. Two nickel-plated steel fryer baskets have Kool-Touch® handles for your safety and comfort. Nonskid rubber feet prevent the unit from moving during use and maintain stability. Thanks to its compact size, this unit fits nicely on any countertop.
Fry chicken, french fries, seafood and more quickly
Fully welded oil tank and front-mounted drainage valve make cleaning easy and efficient
Double-well unit features two separate power cords and requires two receptacles
Microswitch safely shuts off unit when element box is removed
Automatic shutoff feature at 446°F maintains safety of operation
Thermostatic controls maintain a temperature of 374°F for more accurate heating
Two 4- x 10- x 4-inch fryer baskets fit a variety of products
Non-skid rubber feet prevent slipping
Includes one small night cover per well.
Includes two small baskets per well.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FFA8130-C |
| UPC | 671080380421 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 23 x 19.75 x 16 |
| (W) Width (IN) | 23 |
| (D) Depth (IN) | 19.75 |
| (D2) Secondary Depth (IN) | 18.5 |
| (H) Height (IN) | 16 |
| (HB) Height of Body (IN) | 11.5 |
| Overall Dimensions (CM) | 59.4 x 50.2 x 40.6 |
| (W) Width (CM) | 59.4 |
| (D) Depth (CM) | 50.2 |
| (D2) Secondary Depth (CM) | 47 |
| (H) Height (CM) | 40.6 |
| (HB) Height of Body (CM) | 29.2 |
| Size | Medium |
Electrical
| Name | Value |
|---|---|
| Amps | 12.6 - 14.6 per well |
| Cord Length (IN) | 60 |
| Cord Length (CM) | 150 |
| Plug | NEMA 6-20P |
| Voltage | 208-240 |
| Watts | 2630-3500 per well |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Number of Wells | 2 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 22.25 |
| Case Height | 19 |
| Case Length | 25.5 |
| Case Lot Cube (ft.) | 6.24 |
| Case Lot Weight (lbs.) | 46.4 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| MICRO SWITCH FFA5110/8115/8130 | XFFA5010 | $36.30 |
| POWERCORD 220V (NEMA6-15P) | XAA0006 | $45.60 |
| CONTROL PANEL FASCIA - BLACK | XAA0009 | $31.70 |
| PARTICLE SIEVE | XFFA0014 | $30.80 |
| NIGHT COVER FFA80115/FFA8130 | XFFA8027 | $141.50 |
| THERMOSTAT | XFFA8103 | $134.10 |
| C/T FRYER PART- ELEMENT BOX CO | FFEB400C | $794.20 |
| C/T FRYER PART- ELEMENT BOX CO | FFEB400 | $637.10 |
| FAUCET O RING FFA8115/FFA8130 | XFFA8015 | $10.80 |
| CABLE RESTRAINT (FMA SKA FFA) | XAA0012 | $11.70 |
| RELAY SWITCH FFA8115/FFA8130 # | XFFA8030 | $169.80 |
| SAFETY THERMOSTAT FFA8115/FFA8 | XFFA8008 | $61.40 |
| ELEMENT FFA8115/FFA8130 (#1) 3 | XFFA8001 | $188.70 |
| PILOT LIGHT 220V (RED) | XAA0002 | $18.10 |
| VOLLRATH CONTROL KNOB FFA7110/ | XFFA0004 | $18.70 |
| SAFETY CUT OUT PLASTIC CAP FF | XFFA0013 | $8.10 |
| FAUCET FIBRE WASHER FFA8115/FF | XFFA8013 | $7.20 |
| DRAIN VALVE FFA8115/FFA8130 (# | XFFA8002 | $205.60 |
| DRAIN VALVE HANDLE FFA8115/FFA | XFFA8102 | $67.30 |
