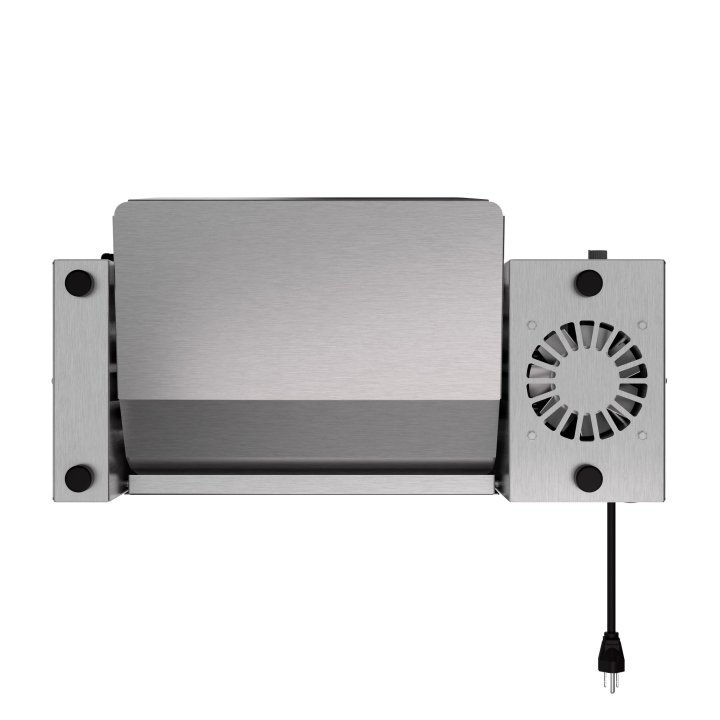

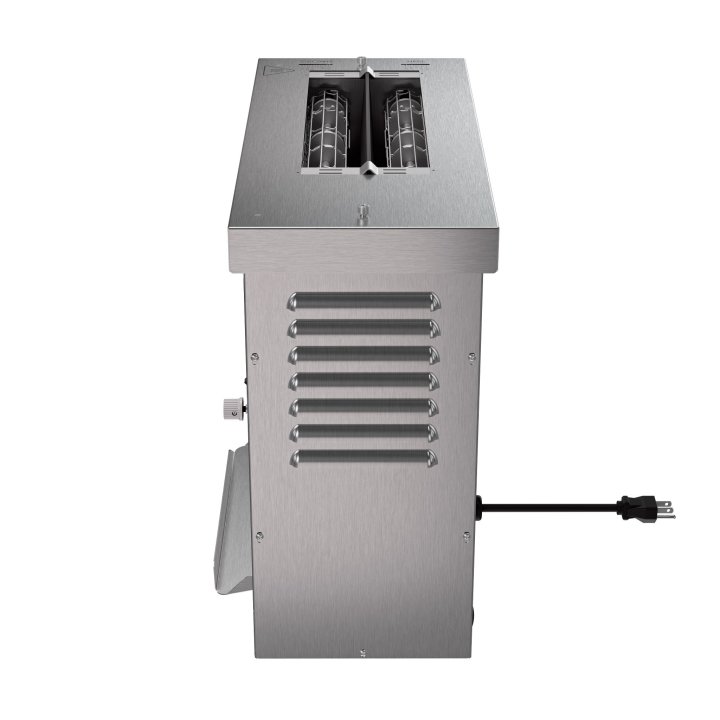

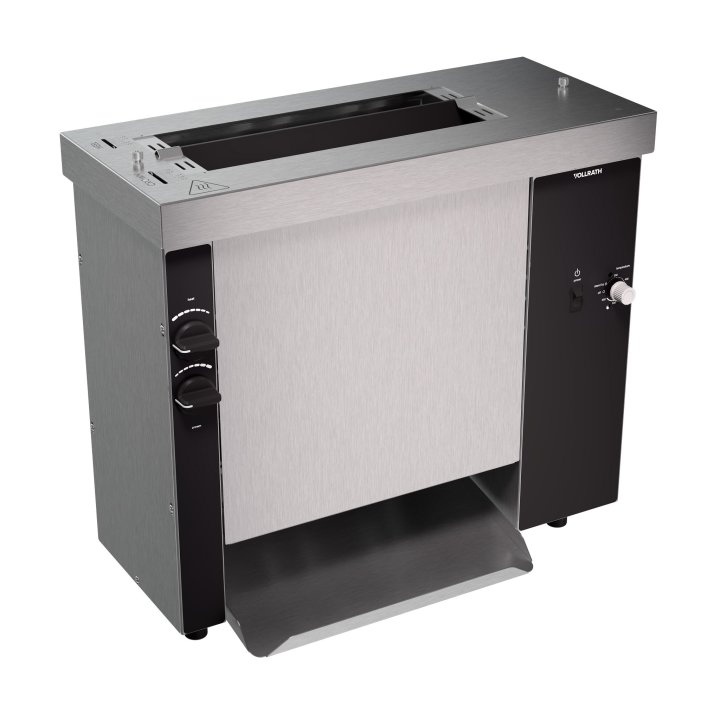

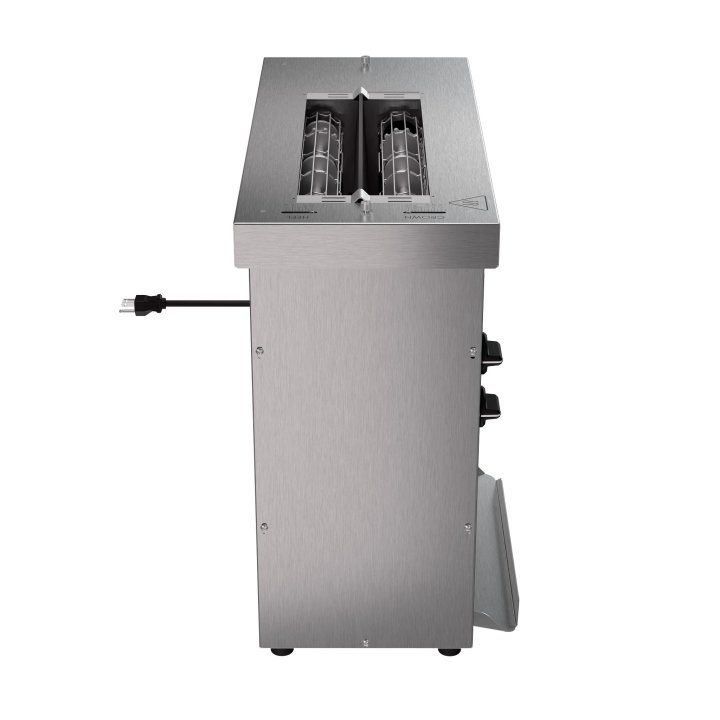

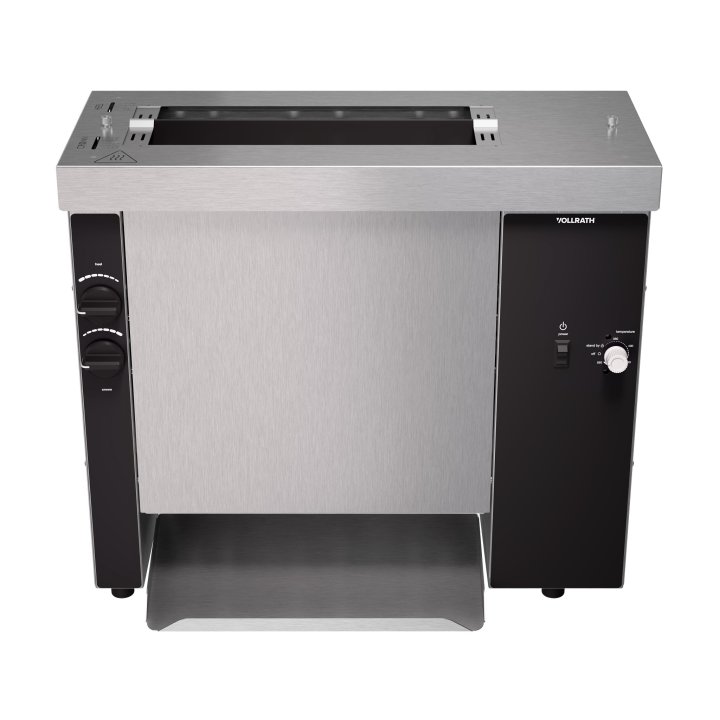

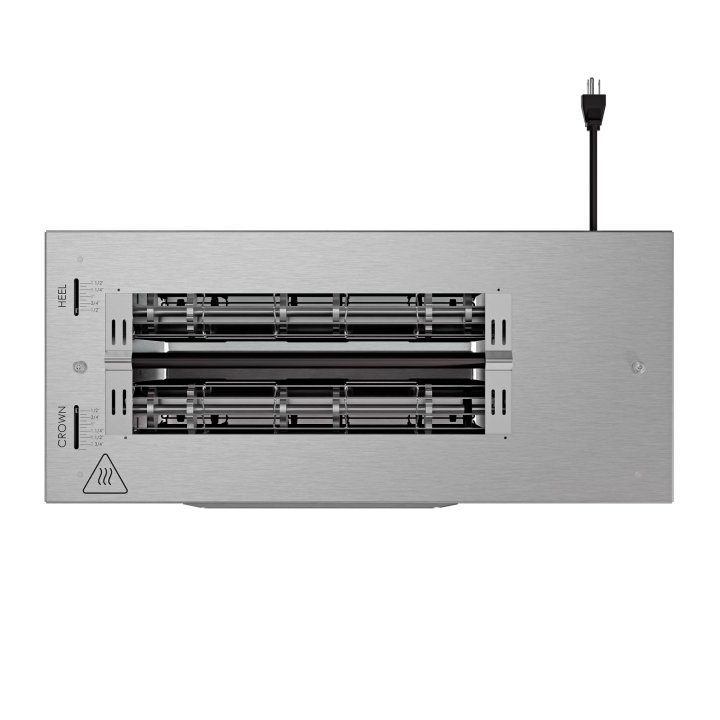

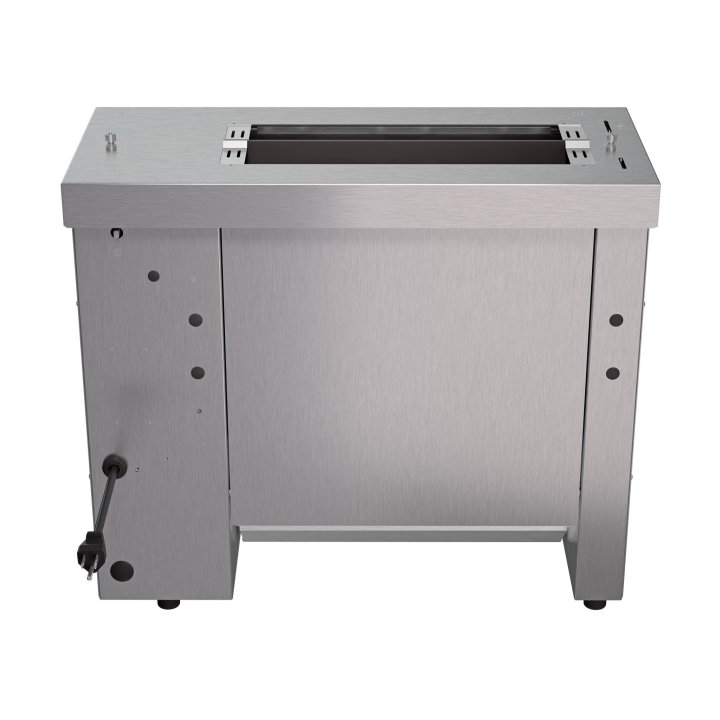

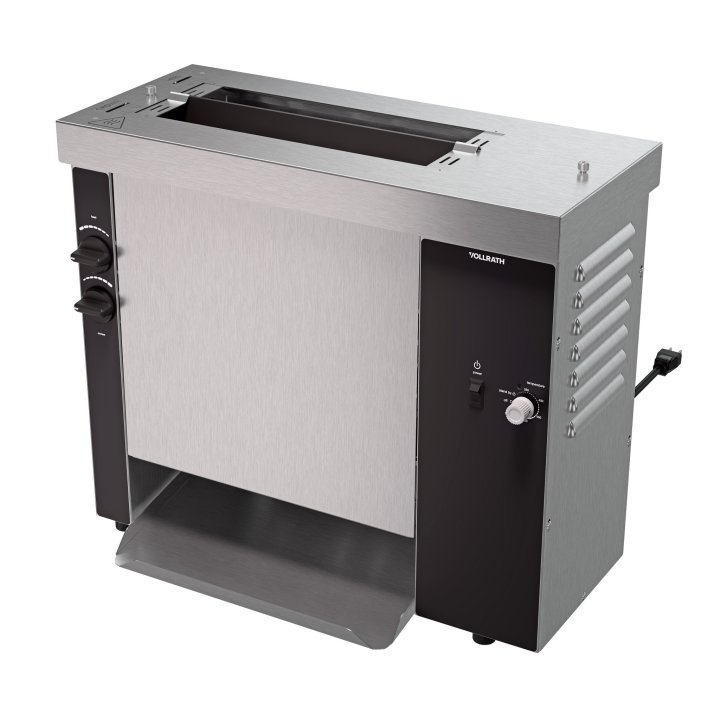

VCBT2-120-35
120-volt vertical contact bun toaster with 35-second fixed speed
The Vollrath vertical contact bun toaster is powerful heat in a compact design.
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
120-volt vertical contact bun toaster with 35-second fixed speed
The Vollrath vertical contact bun toaster is powerful heat in a compact design. Simply drop the buns in the feeder, and the aluminum dual-sided heater platen browns them evenly on both cut sides, creating a smooth sealed barrier that stands up to burgers and juicy sandwich fillings. Adjustable precision heat control ranges from 350 to 550 degrees Fahrenheit, and the adjustable crown and heel controls accommodate buns up to 1¾ inches thick. Perfect for chain restaurants or any foodservice operation, this countertop toaster frees your flat top for cooking. With a two-year parts warranty that’s among the best in the industry, it fits seamlessly into any professional kitchen.
Toasts and seals buns to eliminate sogginess
120 volts of power for quick, even toasting
35-second fixed speed keeps up with busy operations
Wire belt guides buns through toaster from feeder to chute
Includes two release sheets for nonstick movement
Durable stainless steel design is easy to clean, no tools required
Optional accessories include bun feeder, butter wheel, and belt wraps
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | CBT15 |
| UPC | 198594143750 |

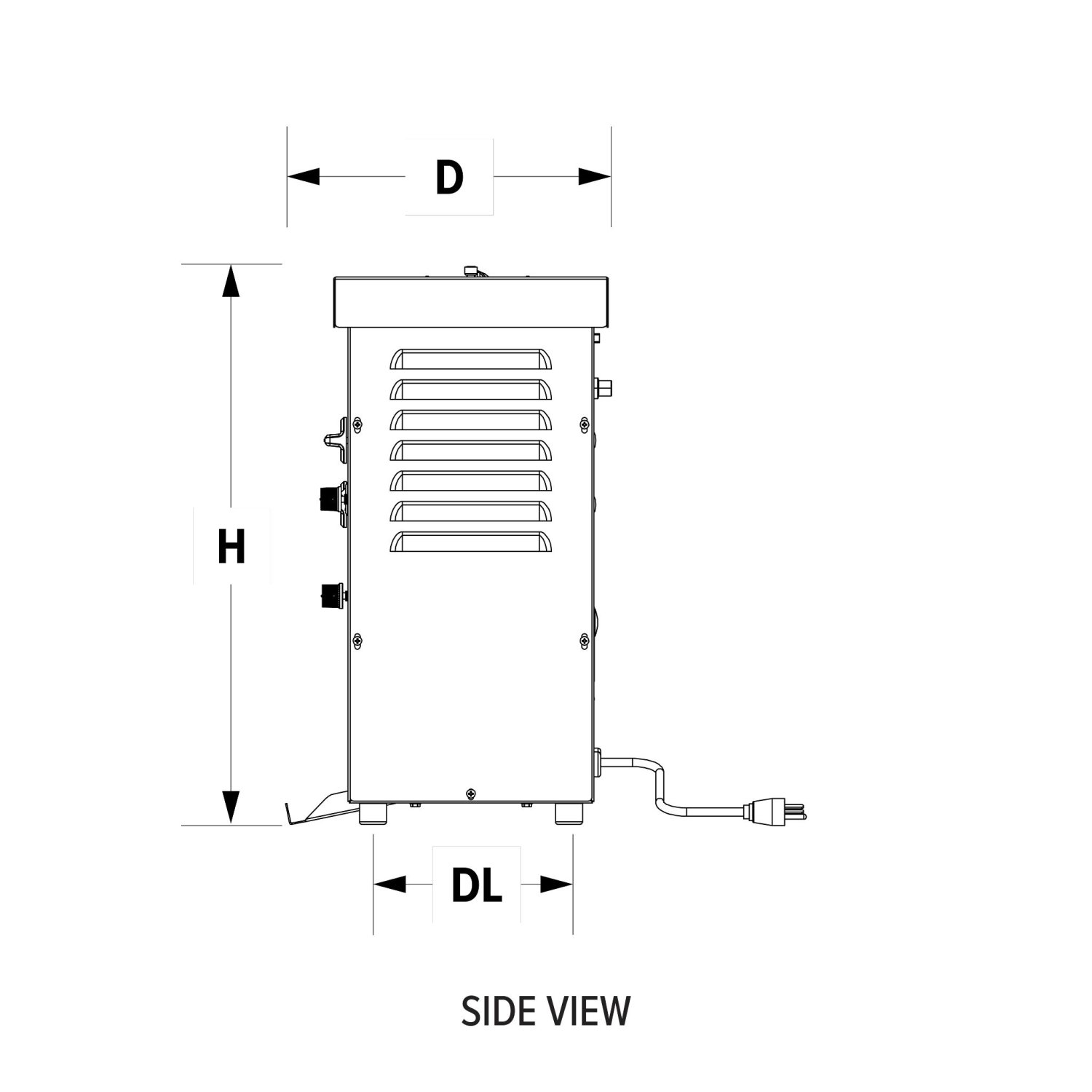

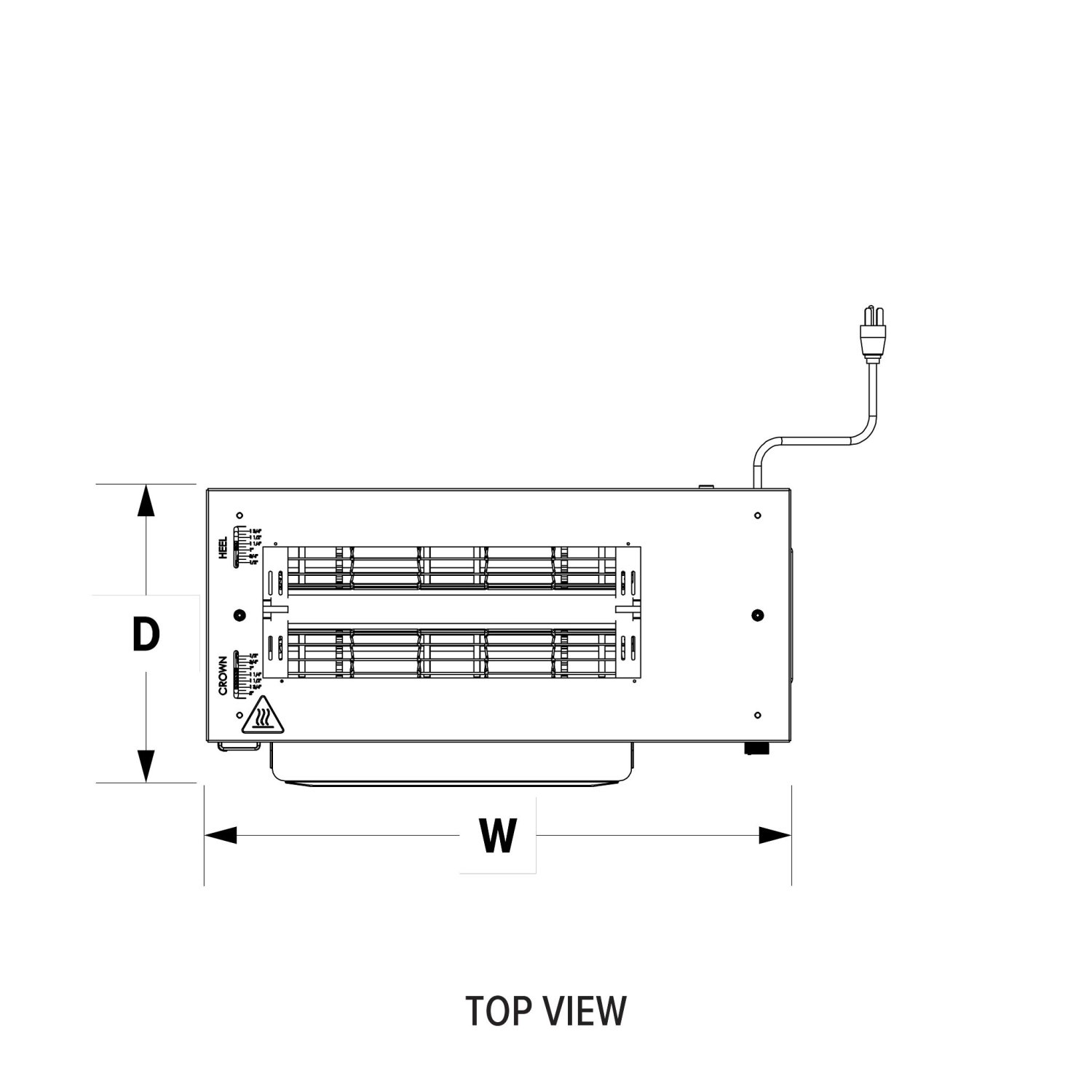

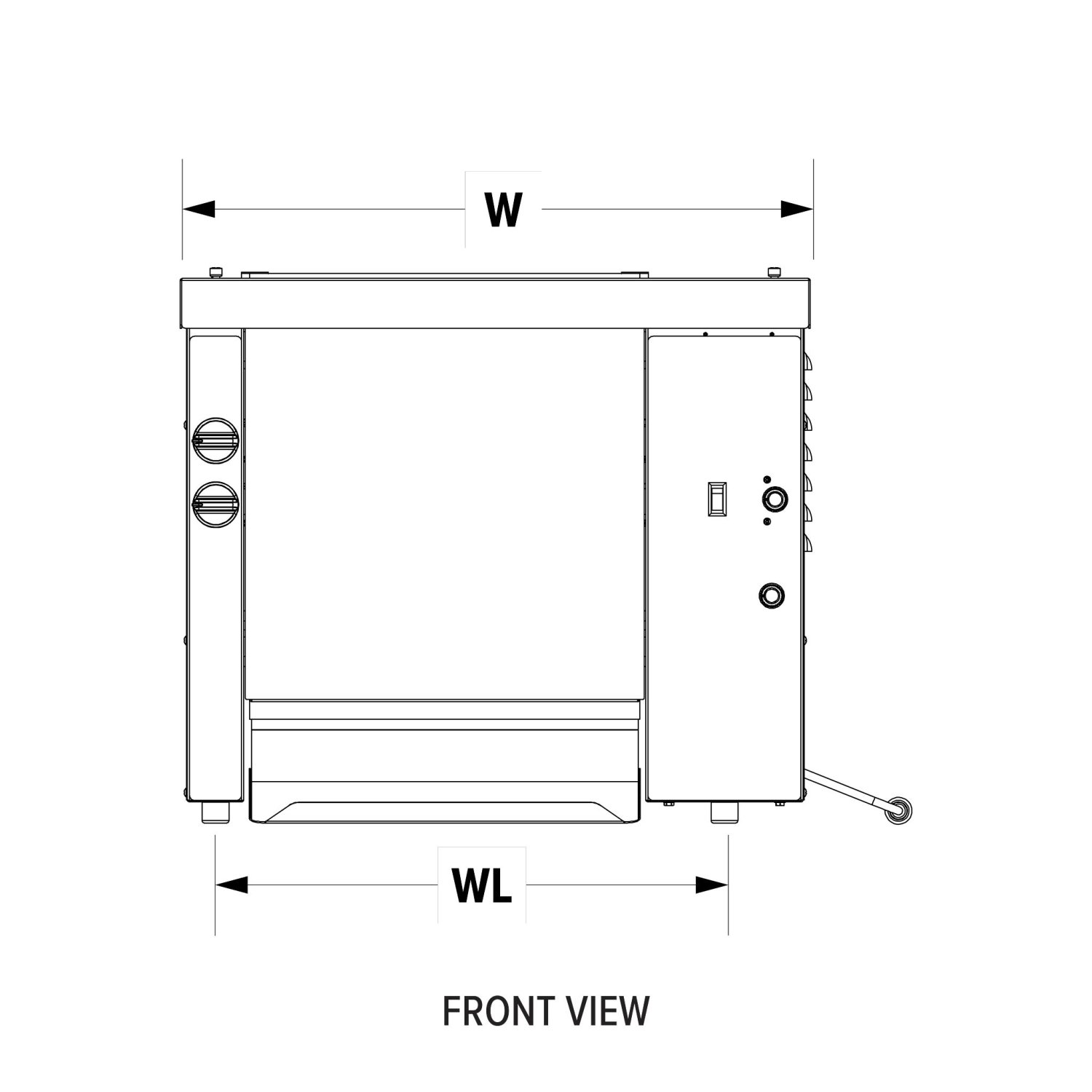

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 22.94 |
| (D) Depth (IN) | 11.44 |
| (H) Height (IN) | 20.25 |
| (WL) Width between legs | 18.94 |
| (DL) Depth between legs | 7.25 |
| (W) Width (CM) | 58.3 |
| (D) Depth (CM) | 29 |
| (H) Height (CM) | 51.4 |
| (WL) Width between legs (CM) | 48 |
| (DL) Depth between legs (CM) | 18.4 |
Electrical
| Name | Value |
|---|---|
| Amps | 12 |
| Plug | 5-15P & R |
| Voltage | 120 |
| Watts | 1440 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 76 |
| Weight (KG) | 34.47 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 28.3 |
| Case Height | 26.8 |
| Case Length | 15.5 |
| Case Lot Cube (ft.) | 6.8 |
| Case Lot Weight (lbs.) | 84 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $14.50 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $17.90 |
| 14 Ga Straight Strain Relief | B400320 | $8.00 |
| CORDSET 14AWG SJTOW | 17847-1 | $42.10 |
| BEARING SPRING LOADED | B401353 | $60.90 |
| 68C RESET SWITCH | B405028 | $36.90 |
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $10.40 |
| CORD POWER 14/3 60" 5-15 PLUG | B401052 | $68.60 |
| MOTOR FAN | B401209 | $127.80 |
| TERMINAL BLOCK 5 POSITION | B401033 | $18.80 |
| 11-TOOTH SPROCKET | B401301 | $46.40 |
| SPROCKET 25B17-3/8 | B401303 | $45.30 |
| BEARING ASSEMBLY 3/8" | B201101 | $24.80 |
| MOTOR FAN | B401211 | $97.80 |
| Control Knob | 351788-06-1 | $7.60 |
| ROD, VCT4 CONTACT TOASTER | B401700 | $20.20 |
