CT2H-23025002

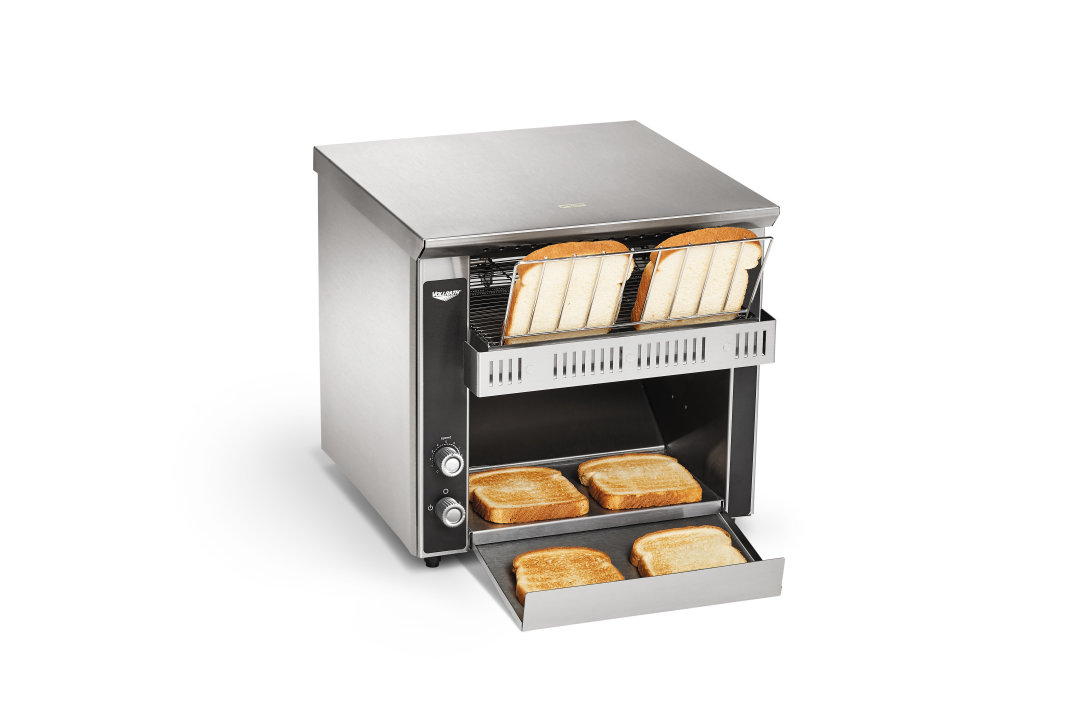

DiscontinuedCT2H-23025002 International Conveyor Toasters
Vollrath Conveyor Toasters feature industry-leading design technology and are made in the USA. Forced convection and energy-efficient quartz heaters provide consistent toasting of bread products.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
International Conveyor Toasters
Vollrath Conveyor Toasters feature industry-leading design technology and are made in the USA. Forced convection and energy-efficient quartz heaters provide consistent toasting of bread products.
Forced convection toasting promotes uniform results and energy efficiency.
Energy efficient, fast reacting, quartz heaters.
Standby mode saves up to 75 percent energy during slow periods when unit is not in use and allows unit to quickly return to full power.
Variable speed control to achieve desired color.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JT1H |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 14.5 x 16.5 x 14.187 |
| (W) Width (IN) | 14.5 |
| (D) Depth (IN) | 16.5 |
| (H) Height (IN) | 14.18 |
| (WL) Width between legs | 12.437 |
| (DL) Depth between legs | 11.312 |
| Product Opening Dimensions (IN) | 1 - 2.125 |
| (DB) Depth of Body (IN) | 14.75 |
| Conveyor Width (IN) | 10.5 |
| Overall Dimensions (CM) | 36.8 x 41.9 x 36 |
| (W) Width (CM) | 36.8 |
| (D) Depth (CM) | 41.9 |
| (H) Height (CM) | 36 |
| (WL) Width between legs (CM) | 31.6 |
| (DL) Depth between legs (CM) | 28.7 |
| Product Opening Dimensions (CM) | 2.5 - 7.6 |
| (DB) Depth of Body (CM) | 37.5 |
| Conveyor Width (CM) | 26.7 |
Electrical
| Name | Value |
|---|---|
| Amps | 7.6 |
| Hz | 50/60 |
| Plug | Schuko |
| Domestic / International | Europe |
| Voltage | 220 - 240 |
| Watts | 1900 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Food Type | Standard Breads, Specialty Breads, Buns, Bagels |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $14.50 |
| SPROCKET 25B17-8MM | B401300 | $32.70 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $17.90 |
| 14 Ga Straight Strain Relief | B400320 | $8.00 |
| CONTROL SPEED 500 OHM | B200906 | $86.30 |
| JT1H SWING SHUTTER | B300131 | $21.50 |
| SILVER PUSH-ON KNOB | B405018 | $9.80 |
| TERMINAL BLOCK 5 POSITION | B401033 | $18.80 |
| TRAY SLIDE OUT | B300115 | $28.00 |
| SHAFT DRIVE 10.5" | B401340 | $83.10 |
| MOTOR DRIVE 230/240V 50 HZ R | B401206 | $228.70 |
| GUARD FAN | B401220 | $10.40 |
| SHAFT IDLER 10.625" CT2 | B401344 | $95.00 |
| FRONT BEARING SPRING-LOADED | B401352 | $28.90 |
| 2PK HEAT ELEM 11-3/8 | 59893 | $314.40 |
| CURVED FRONT CT2/CT2H | B300133 | $31.30 |
| RESET SWITCH | B401100 | $49.70 |
| BEARING ASSEMBLY 5/16 | B201100 | $29.10 |
| SWITCH ROTARY POWER SAVER | B401103 | $68.60 |
| BELT WIRE CONVEYOR 10.5"X25" | B204272 | $237.50 |
| CHAIN DRIVE LADDER 19" | B401384 | $45.00 |
| LEGS BLACK 1" 1/4-20 | B400300 | $19.00 |
| CORD WARNING LABEL | B401404 | $0.40 |
| SIDE PANEL CT2H | B300123 | $47.40 |
| 1 1/4" SNAP BUSHING | B400330 | $0.70 |
| CT2 RESET LABEL | B401093 | $6.20 |
| MOTOR FAN | B401211 | $97.80 |
| BEARING, TEFLON 5/16 | B401355 | $9.20 |
| LABEL 1 X 11.845 | B405004 | $9.70 |
| SPRING .038" DIA 1.500" LENGTH | B400261 | $3.70 |
| CT2H CONTROL LABEL | B401109 | $24.20 |
| TERMINAL BLOCK 2 POSITION | B401034 | $6.80 |
