120-volt JT1BH bun or bagel conveyor toaster
120-volt JT1BH bun or bagel conveyor toaster
120-volt JT1BH bun or bagel conveyor toaster

CT2BH-120400

120-volt JT1BH bun or bagel conveyor toaster

  • 2 Year Parts
  • 1 Year Labor
  • Made in USA
  • Underwriter Laboratories

    This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$1371.36 MSRP Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$2,285.60 List Price List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

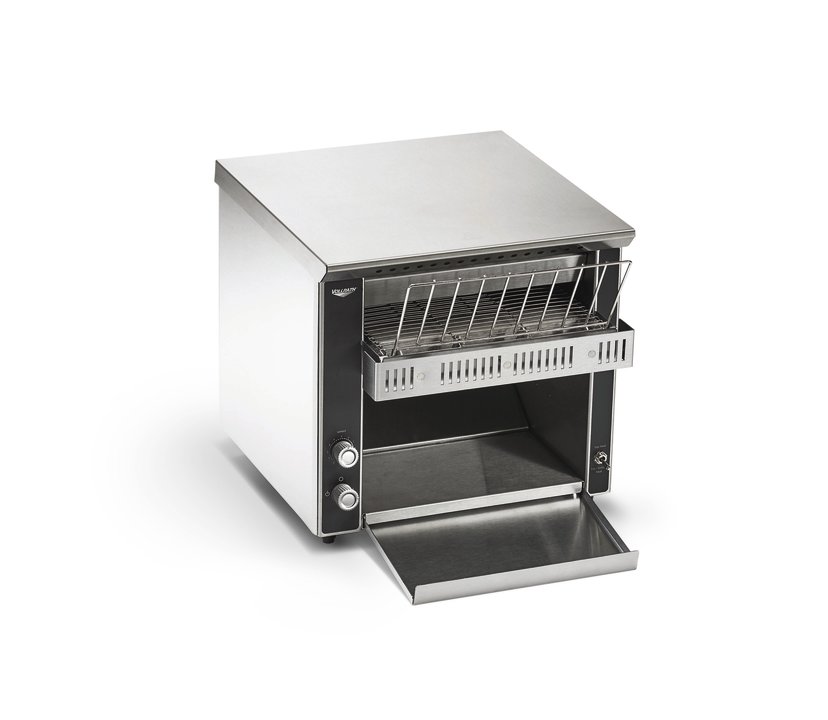

This Vollrath® JT1BH bun or bagel conveyor toaster is consistent, reliable and energy-efficient. Powerful quartz heating elements respond quickly, while forced convection ensures consistent toasting. The variable-speed control and the one- or two-sided heat switch help you achieve desired results. Standby mode reduces energy use up to 75 percent during slow periods and quickly returns the unit to full power when needed. The 2 1/8-inch product opening fits a variety of items, making this toaster ideal for bread, buns, bagels and more. The 10 1/2-inch-wide conveyor can fit up to 400 items per hour. The durable stainless and aluminized steel exterior is built to last, and heavy-duty legs allow leveling adjustments to provide maximum stability on any countertop.

  • Designed for bread slices, bun halves, and bagel halves
  • Variable-speed control and one- or two-sided toasting switch help you achieve desired results
  • Forced convection ensures even toasting
  • Quartz heating elements respond quickly and save energy
  • Durable stainless and aluminized steel is built to last
  • Maintenance-free drive system simplifies operation and servicing
  • 10 1/2-inch-wide conveyor fits up to 400 items per hour
  • 2 1/8-inch product opening easily fits buns, bagels, and other high-clearance items
  • Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.

Product Specifications

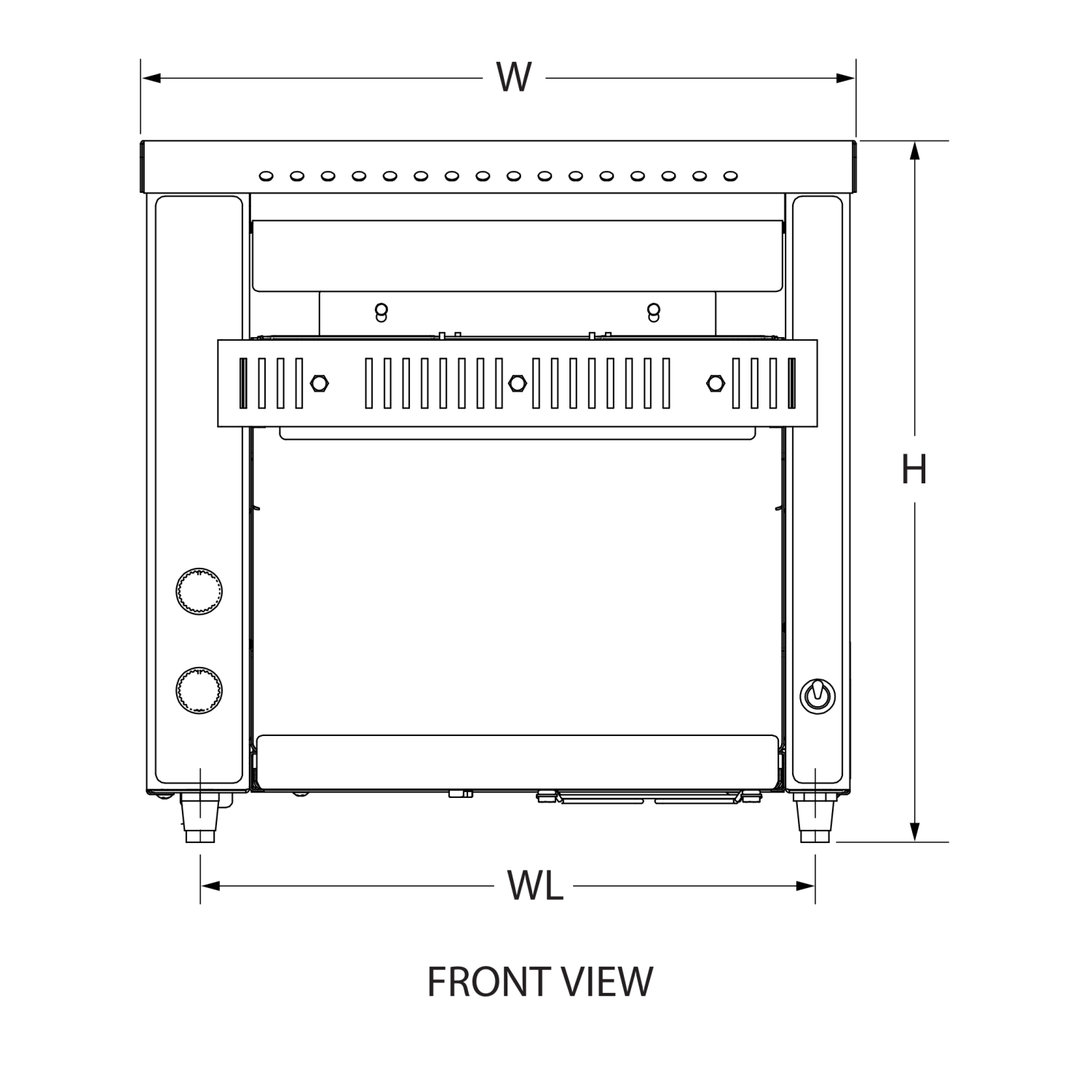

Engineering front view

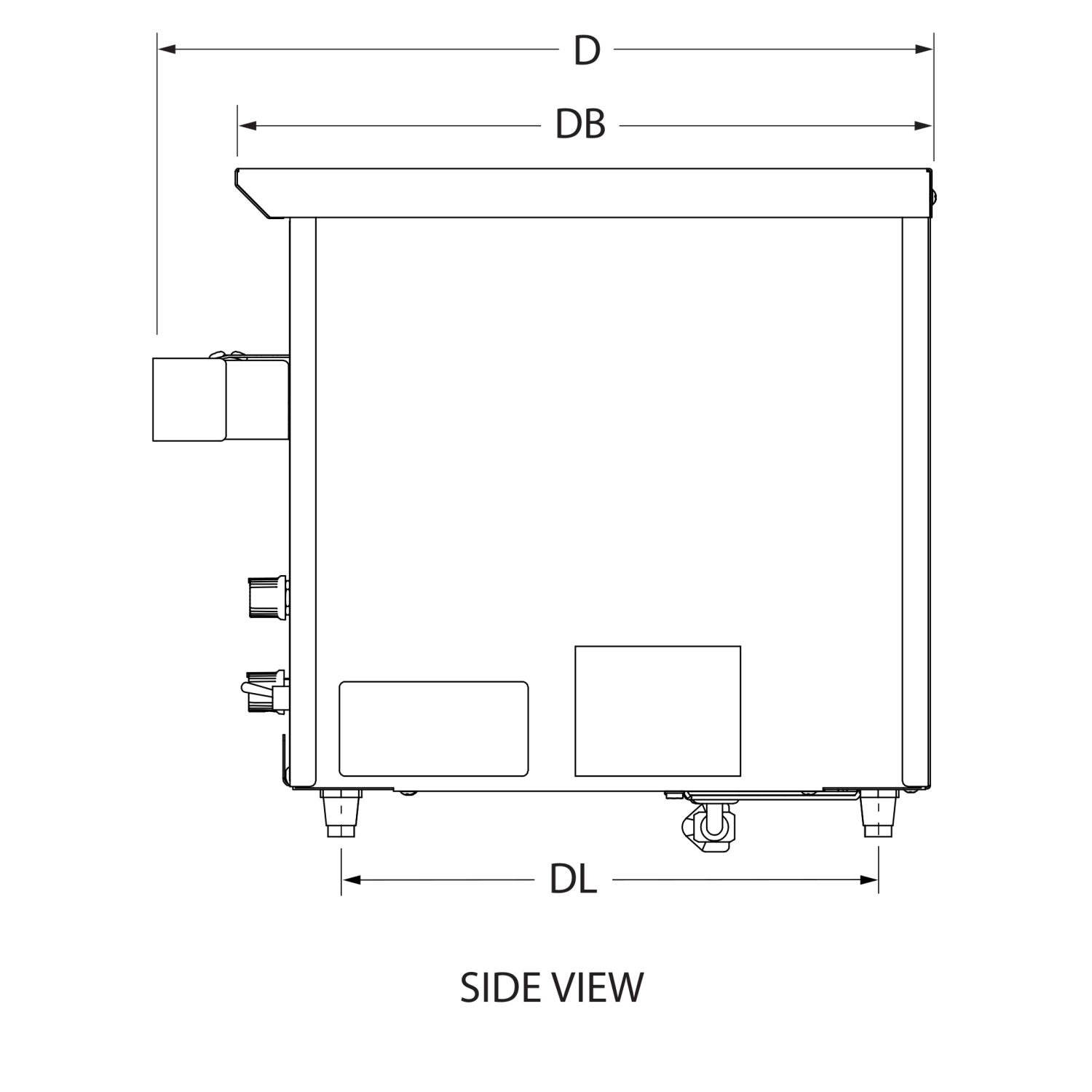

Engineering side view
Model Information
Name Value
Model JT1BH
UPC 671080705699
Unit Dimensions
Name Value
Overall Dimensions (IN) 14.5 x 16.5 x 14.125
(W) Width (IN) 14.5
(D) Depth (IN) 16.5
(H) Height (IN) 14.12
(WL) Width between legs 12.437
(DL) Depth between legs 11.312
Product Opening Dimensions (IN) 2.125
(DB) Depth of Body (IN) 14.75
Conveyor Width (IN) 10.5
Overall Dimensions (CM) 36.8 x 41.9 x 35.9
(W) Width (CM) 36.8
(D) Depth (CM) 41.9
(H) Height (CM) 35.9
(WL) Width between legs (CM) 31.6
(DL) Depth between legs (CM) 28.7
Product Opening Dimensions (CM) 7.6
(DB) Depth of Body (CM) 37.5
Conveyor Width (CM) 26.7
Electrical
Name Value
Amps 13.3
Cord Length (IN) 54
Cord Length (CM) 140
Hz 60
Plug NEMA 5-15P
Voltage 120
Watts 1600
Construction
Name Value
Construction Material Multi-Metal
Countertop or Drop-In Countertop
Material Type Metals
Food Type Standard Breads, Specialty Breads, Buns, Bagels
Case Lot Measurement
Name Value
Case Lot 1
Case Width 19.5
Case Height 16
Case Length 22
Case Lot Cube (ft.) 3.97
Case Lot Weight (lbs.) 39.75
Product Parts
Name Part # Price
CORD FAN HP-75.24-A B401060 $13.80
SPROCKET 25B17-8MM B401300 $31.10
SILVER PUSH-ON KNOB W/SET SCRW B405019 $17.00
14 Ga Straight Strain Relief B400320 $7.60
JT1H SWING SHUTTER B300131 $20.49
SILVER PUSH-ON KNOB B405018 $9.30
CONTROL SPEED 250 OHM CT2 B200902 $66.40
CORD POWER 14/3 60" 5-15 PLUG B401052 $65.30
MOTOR FAN B401209 $121.70
TERMINAL BLOCK 5 POSITION B401033 $17.90
GUARD FAN B401220 $9.90
TRAY SLIDE OUT B300115 $26.62
2PK HEAT ELEM 11-3/8 60V 400W 59843 $155.30
MOTOR DRIVE 120V REVERSED 346 B401202 $224.60
CT2BH RIGHT SIDE LABEL W/HOLE B405005 $22.36
HEYCO 1" SNAP BUSHING 2140 B400334 $0.73
SPRING .038" DIA 1.500" LENGTH B400261 $3.50
SHAFT IDLER 10.625" CT2 B401344 $91.30
FRONT BEARING SPRING-LOADED B401352 $27.50
BEARING ASSEMBLY 5/16 B201100 $27.70
SHAFT DRIVE 10.5" B401340 $79.90
SWITCH TOGGLE ON/ON 15A B401116 $79.90
CHAIN DRIVE LADDER 19" B401384 $43.30
CURVED FRONT CT2/CT2H B300133 $29.85
RESET SWITCH B401100 $47.30
BELT WIRE CONVEYOR 10.5"X25" B204272 $226.20
LEGS BLACK 1" 1/4-20 B400300 $18.10
BEARING, TEFLON 5/16 B401355 $8.84
CORD WARNING LABEL B401404 $0.42
SWITCH ROTARY POWER SAVER B401103 $65.30
CT2H CONTROL LABEL B401109 $23.09
SIDE PANEL CT2H B300123 $45.55
1 1/4" SNAP BUSHING B400330 $0.62
CT2 RESET LABEL B401093 $5.93
