GGMDT-24

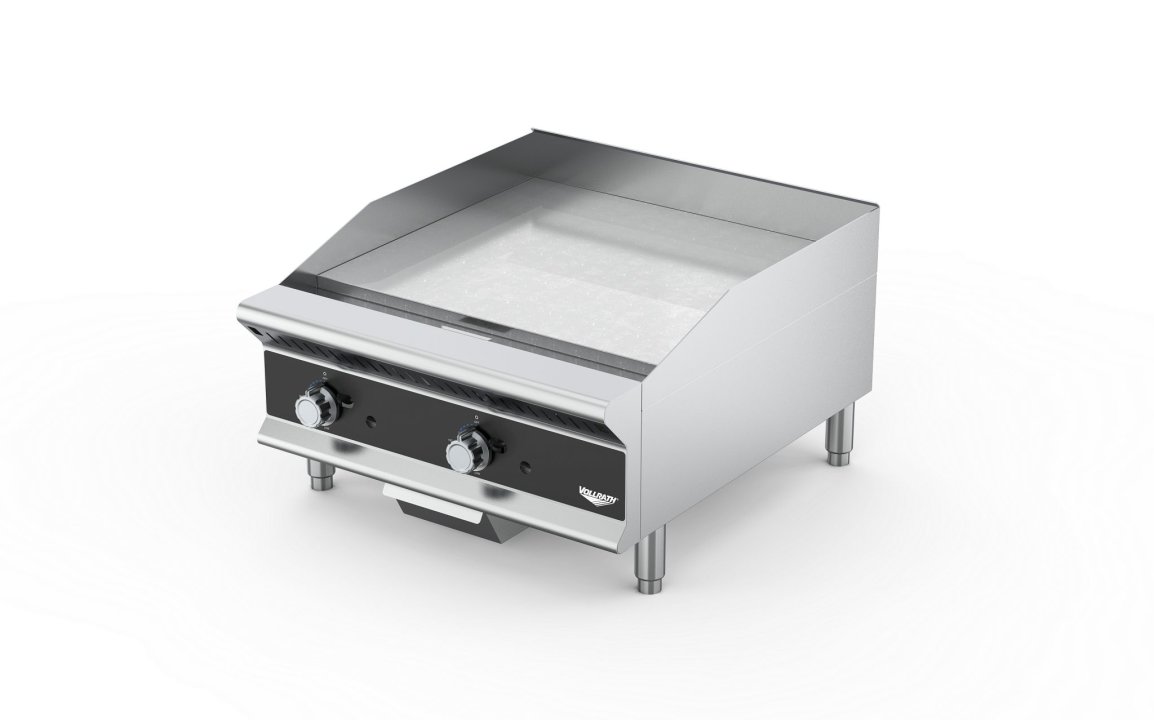

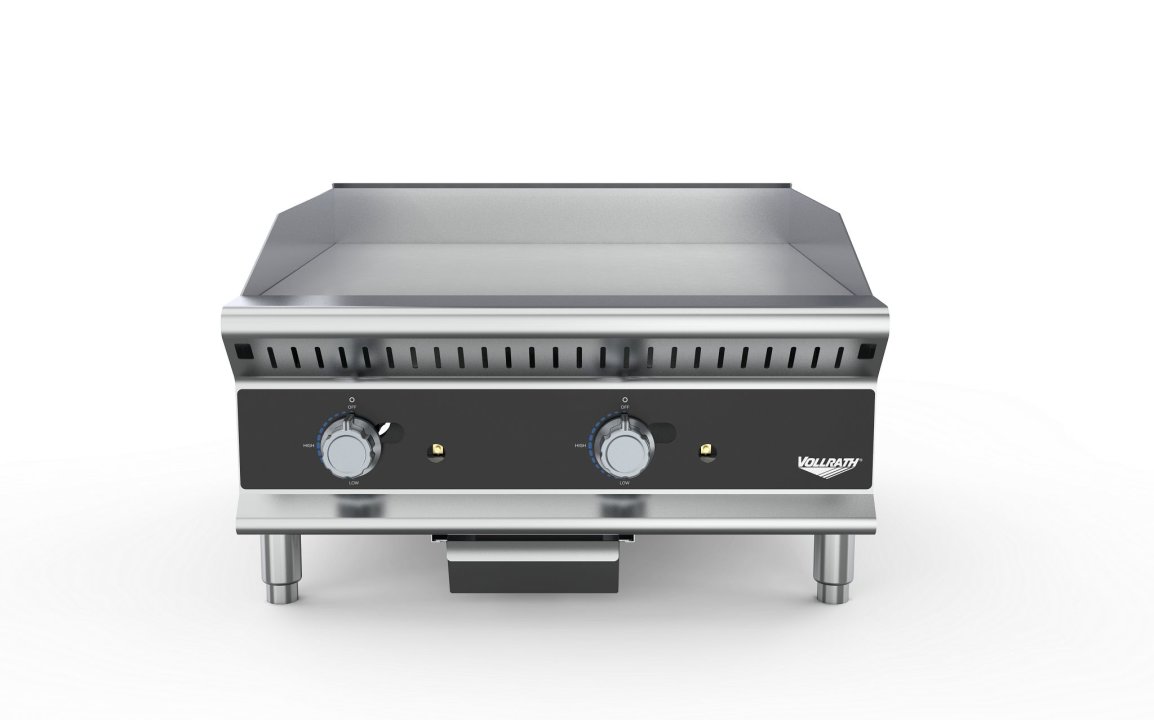

24-inch medium-duty flat-top gas griddle with thermostatic controls
Conforms to NSF/ANSI STD 4
This symbol represents food service equipment that is certified to to use in the production of food intended for human consumption, or the equipment is certified for use in an environment where food intended for human consumption is produced.
Conforms to ANSI STD Z83.11-2016. Certified to CSA STD 1.8-2016
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
The Vollrath® gas griddle adds powerful versatility to your kitchen. A simple, safe and economical way to streamline food prep, the thick, polished surface and U-shaped burners distribute heat evenly. Thermostatic controls maintain user settings to ensure consistent surface temperature, with metal knobs that will never break or crack. With 56,000 BTUs of heating power, this impressive griddle is a great choice for any kitchen.
- 24-inch griddle’s dual burners double the flexibility
- Thermostatic controls ensure consistent temperature
- Polished ¾-inch thick steel griddle maintains even heat
- Welded seams and splash-less design ease cleaning
- Valve-protecting metal knobs are guaranteed for life
- Ships natural-gas-ready; includes propane conversion kit
- Thermostatic controls maintain consistent surface temperatures from 200 °F–450 °F (93 °C–232 °C)
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FTA1024 |
| UPC | 029419432936 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 56000 |
| Number of Burners | 2 |
| Pilot Type | Standing |

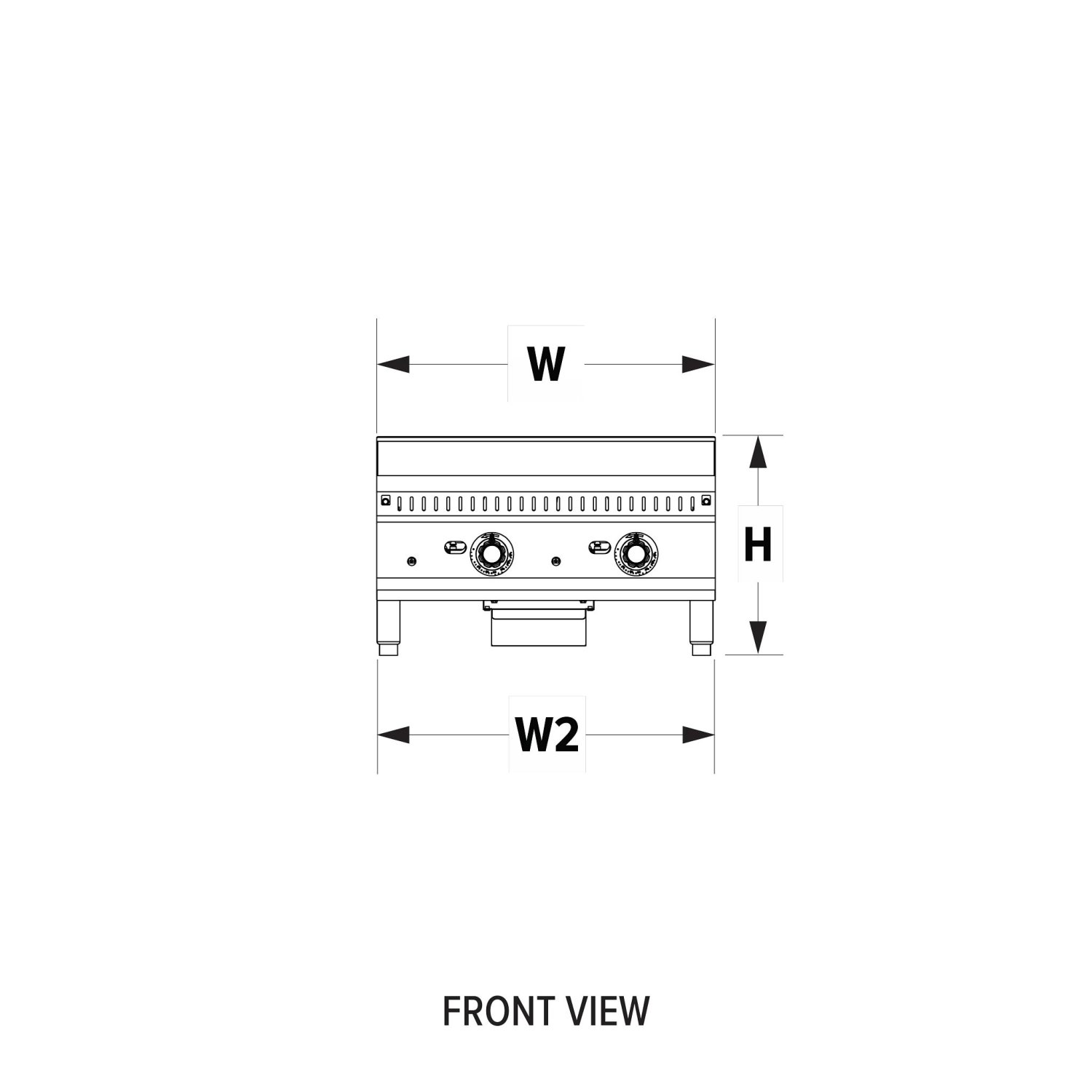

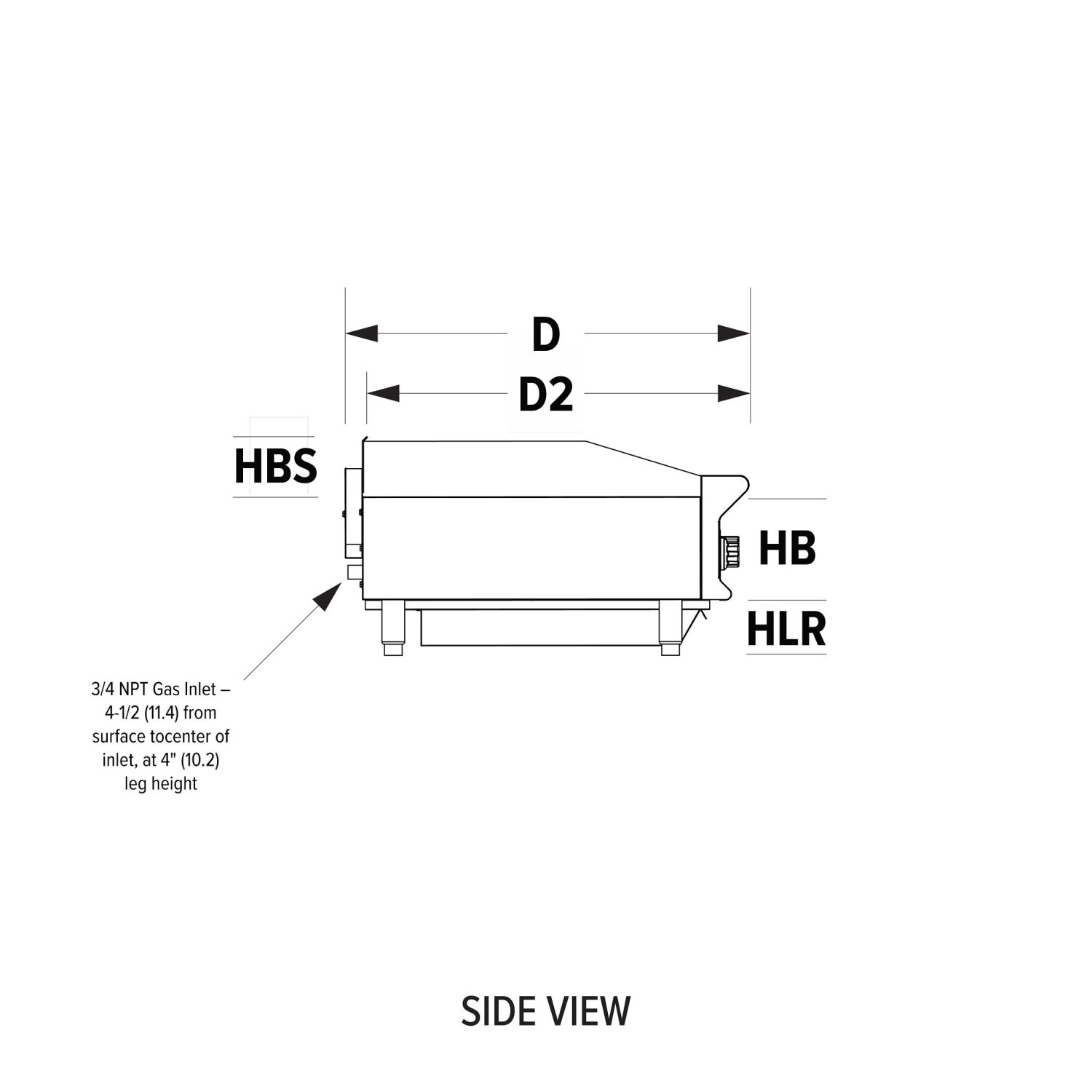

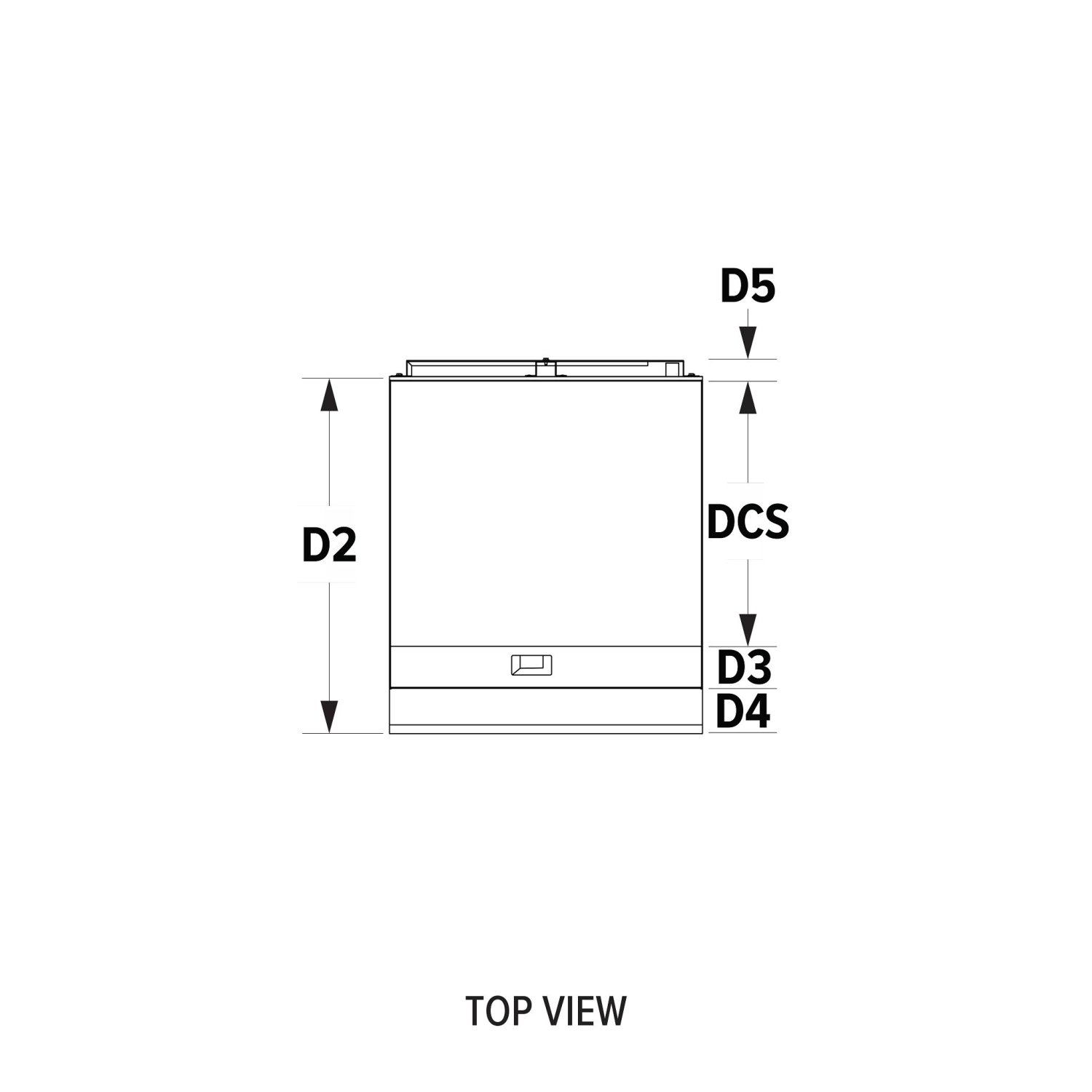

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 24 |
| (D) Depth (IN) | 29.375 |
| (H) Height (IN) | 16 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (WCS) Cooking Surface Width (IN) | 23.687 |
| (DCS) Cooking Surface Depth (IN) | 20.5 |
| (HBS) Backsplash Height (IN) | 2.75 |
| (HSS) Sidesplash Height (IN) | 2.75 |
| (HB) Height of Body (IN) | 9.25 |
| (W) Width (CM) | 61 |
| (D) Depth (CM) | 74.61 |
| (H) Height (CM) | 40.6 |
| (WCS) Cooking Surface Width (CM) | 60.2 |
| (DCS) Cooking Surface Depth (CM) | 52 |
| (HBS) Backsplash Height (CM) | 7 |
| (HSS) Sidesplash Height (CM) | 7 |
| (HB) Height of Body (CM) | 23.5 |
| Size | 24 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Number of Controls | 2 |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Lot Weight (lbs.) | 229.2808 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| MD CB ORIFICE - LP | 353414-1 | $6.00 |
| BURNER/PILOT ASSY - MDT GAS GR | 353406-1 | $132.60 |
| BURNER SUPPORT - 24IN GRIDDLE | 353394-1 | $36.20 |
| DRIP TRAY - GRIDDLE | 353386-1 | $90.40 |
| MD THERM CONTROL VALVE | 353407-1 | $28.90 |
| MD VALVE CONNECTORS ASSY | 353409-1 | $48.20 |
| MANIFOLD - 24IN MDT GRIDDLE | 353408-1 | $301.30 |
| REGULATOR 5IN WC | 352509-1 | $216.90 |
| LEG, GAS APPLIANCE | 353376-1 | $41.00 |
| GGMDT-24 FRONT PANEL ASSY | 354224-1 | $263.90 |
| MD CB ORIFICE - NAT GAS | 353413-1 | $6.00 |
| DRIP TRAY SUPPORTS - GD | 353375-1 | $90.40 |
| FASCIA - 24IN MDT GRIDDLE | 353405-1 | $48.20 |
Product Downloads
CAD / REVIT
