CBGMD-60

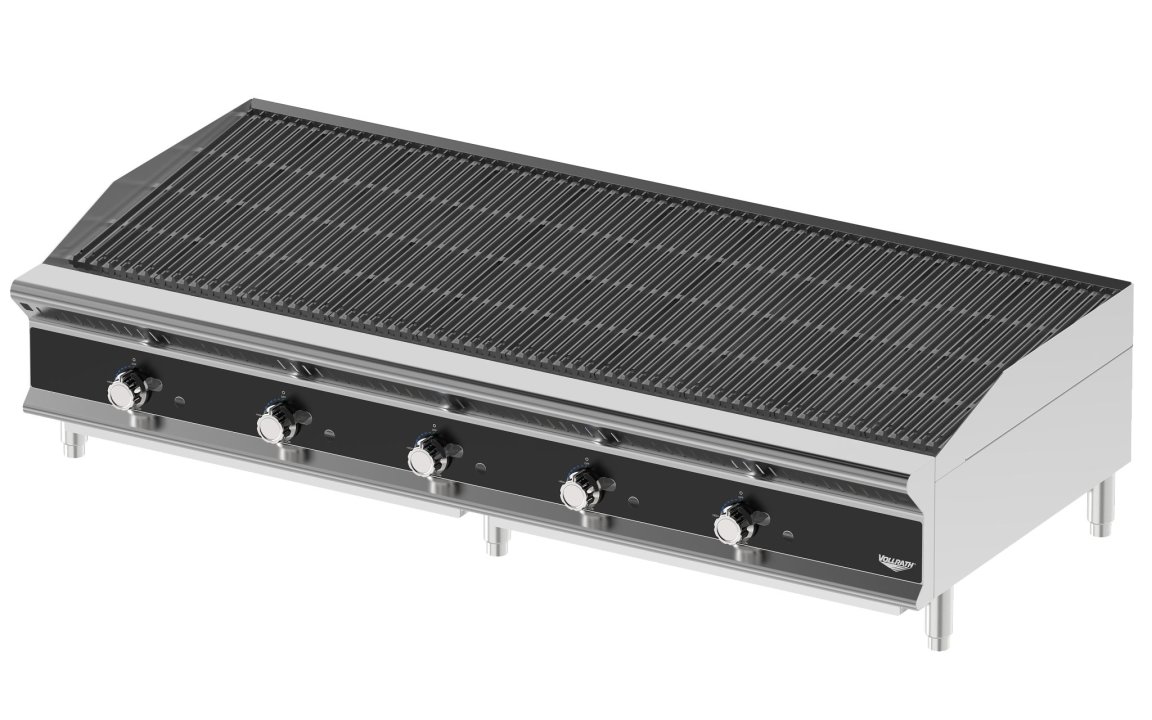

60-inch medium-duty gas charbroiler

Conforms to NSF/ANSI STD 4
This symbol represents food service equipment that is certified to to use in the production of food intended for human consumption, or the equipment is certified for use in an environment where food intended for human consumption is produced.
Conforms to ANSI STD Z83.11-2016. Certified to CSA STD 1.8-2016
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$3942.66 MSRP

$6,571.10 List Price

Where to Buy

Vollrath® gas charbroilers are designed for outstanding durability, from their welded stainless steel construction to their powerful stainless steel radiants. And you’ll appreciate the versatility you get with reversible grill plates — a narrow side with fat-draining channels, and a flat, wide surface for delicate items like fish. Angled adapter bars allow plate adjustment for slower cooking, fewer grease flare-ups, and food that’s grilled to perfection.

60-inch charbroiler’s 5 burners provide 200,000 BTUs
Welded stainless steel construction ensures durability
Adjustable flame settings create consistent, even heating
Valve-protecting metal knobs are guaranteed for life
Ships natural-gas-ready; includes propane conversion kit
Radiant kit included; lava rock kit available separately
*12" unit has one burner
Now with more BTUs
Includes kit for both radiant and lava rock setup

Product Specifications

Model Information

Name	Value
Model	CBL90602
UPC	029419432639

Gas Specifications

Name	Value
Output (BTU)	200000
Number of Burners	10
Pilot Type	Standing

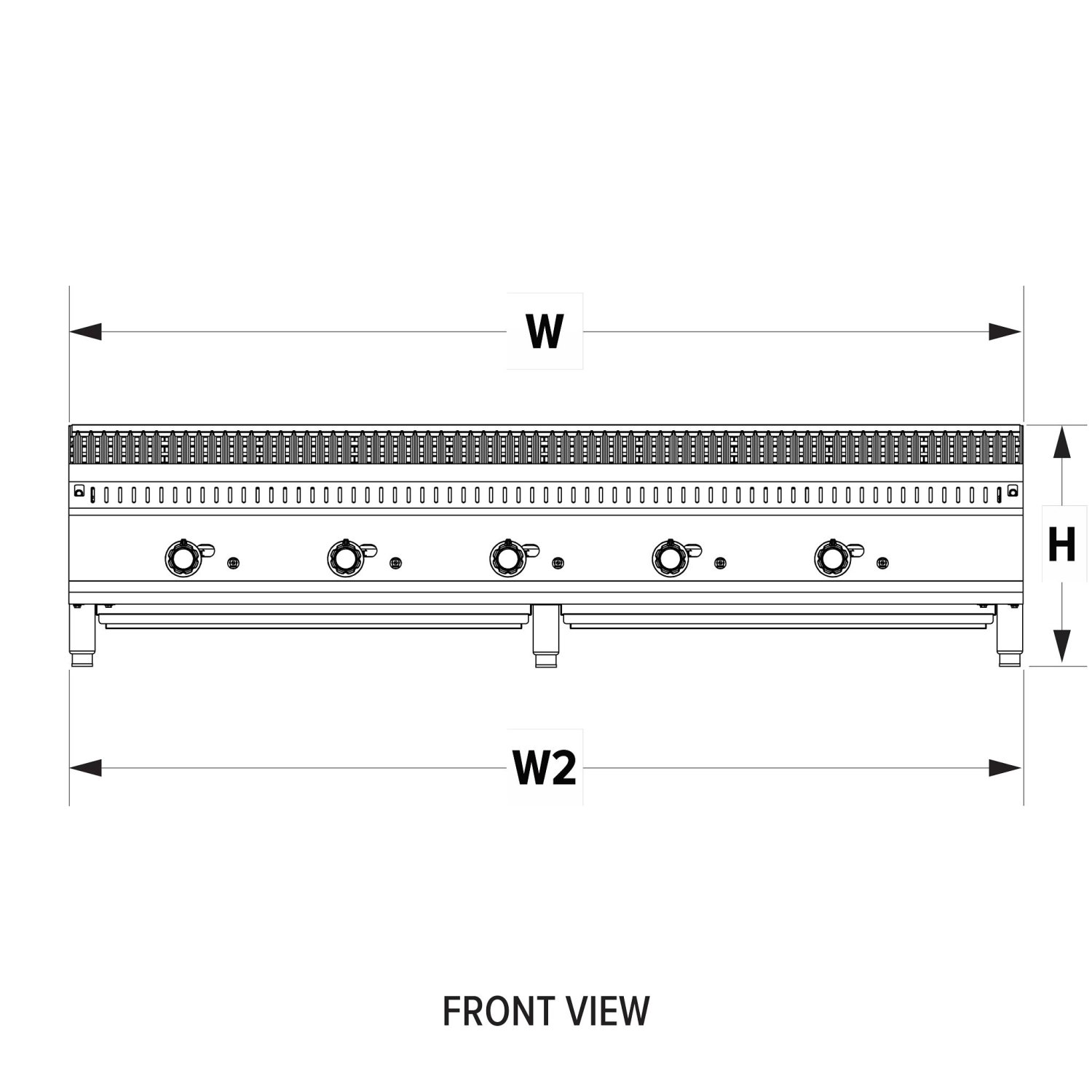

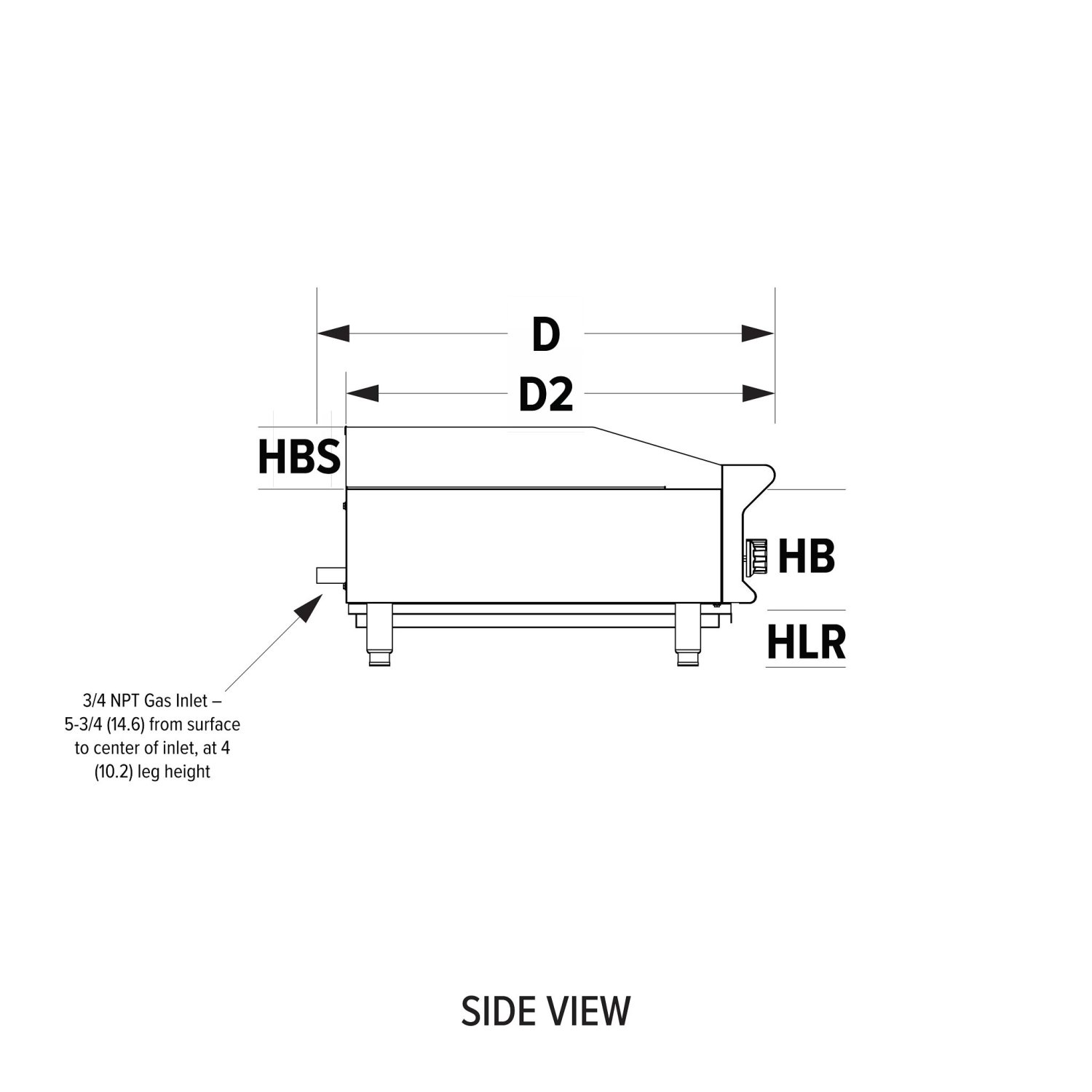

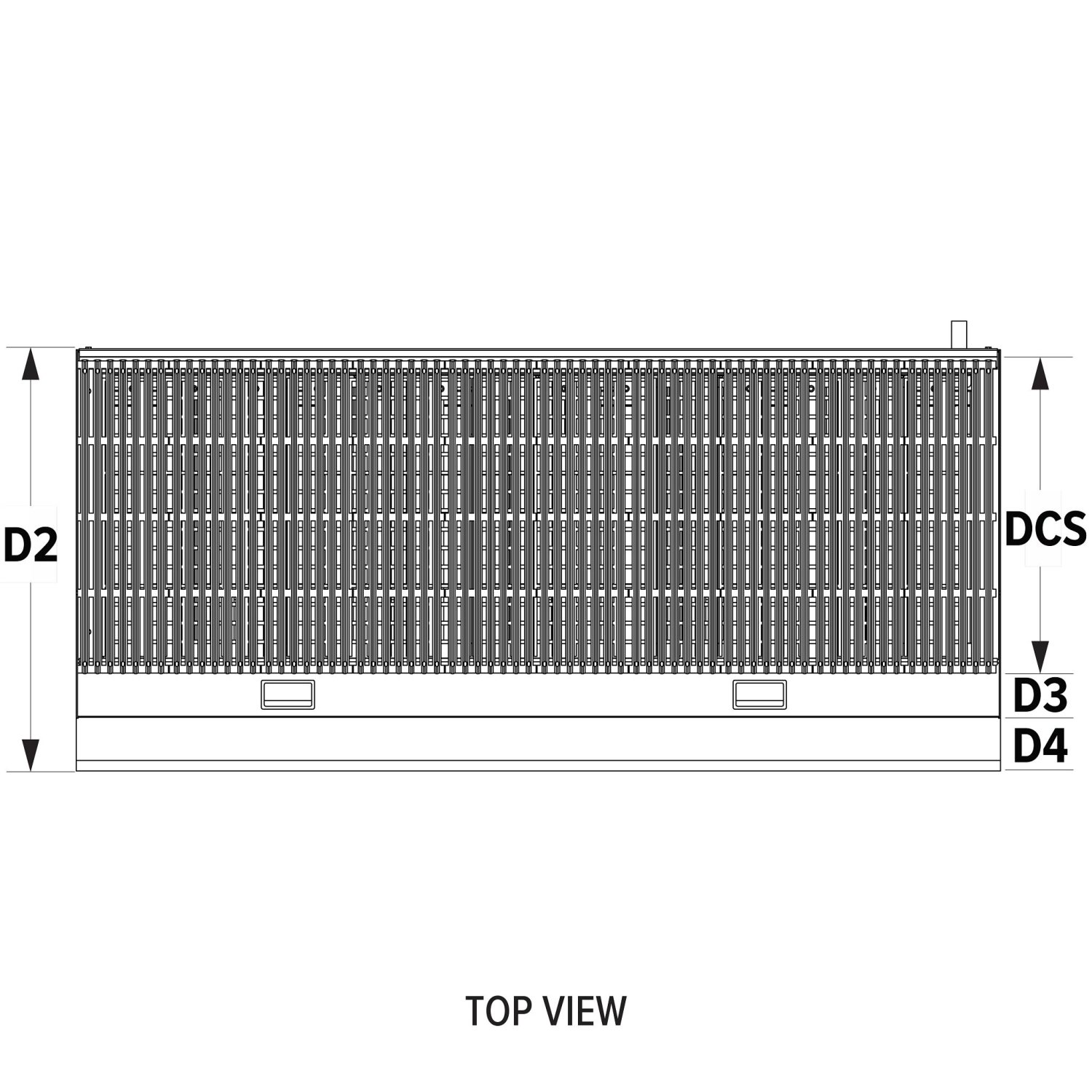

Unit Dimensions

Name	Value
(W) Width (IN)	60.2
(D) Depth (IN)	29.25
(H) Height (IN)	15.25
(HLR) Adjustable Legs (IN)	4 - 5.5
(WCS) Cooking Surface Width (IN)	59.687
(DCS) Cooking Surface Depth (IN)	20.5
(HBS) Backsplash Height (IN)	3
(HSS) Sidesplash Height (IN)	3
(WB) Width of Body (IN)	60.1
(DB) Depth of Body (IN)	20.5
(HB) Height of Body (IN)	8.25
(W) Width (CM)	152.9
(D) Depth (CM)	74.3
(H) Height (CM)	38.735
(HLR) Adjustable Legs (CM)	10.2 - 14
(WCS) Cooking Surface Width (CM)	151.6
(DCS) Cooking Surface Depth (CM)	52
(HBS) Backsplash Height (CM)	7.6
(HSS) Sidesplash Height (CM)	7.6
(WB) Width of Body (CM)	152.6
(DB) Depth of Body (CM)	52
(HB) Height of Body (CM)	21
Size	60

Construction

Name	Value
Construction Material	Stainless Steel
Construction Material 2	Aluminized Steel
Countertop or Drop-In	Countertop
Number of Controls	10

Additional Specifications

Name	Value
Number of Drip Trays	2

Case Lot Measurement

Name	Value
Case Lot	1
Case Lot Weight (lbs.)	313.0564

Product Accessories

Name	Item #
Lava Rock Kit for the 60-inch medium-duty gas charbroiler	353435-1

Product Parts

Name	Part #	Price
CONTROL KNOB LG INSERT	353373-1	$10.80
MANUAL CONTROL VALVE	353367-1	$72.30
REGULATOR 5IN WC	352509-1	$216.90
LEG, GAS APPLIANCE	353376-1	$41.00
BURNER SUPPORT - 60IN GRIDDLE	353403-1	$54.20
MDCB BURNER RADIANT (LONG)	353418-1	$75.90
DRIP TRAY - 60IN CB	353434-1	$373.60
HD GRIDDLE ORIFICE - NAT GAS	353464-1	$7.20
FASCIA - 60IN MD CHARBROIL	353433-1	$102.40
GRATE SUPPORT - 60IN MDCB	353436-1	$156.70
MDCB BURNER RADIANT (SHORT)	353419-1	$25.30
DRIP TRAY SUPPORT, CB 48-72	353482-1	$96.40
HD GRIDDLE ORIFICE - LP	353465-1	$6.00
MDCB COOKING GRATE	353417-1	$168.70
CBGMD-60 FRONT PANEL ASSY	354230-1	$468.80
BURNER/PILOT ASSY - MDM GAS GR	353385-1	$132.60
MANIFOLD - 60IN MD CB	352505-1	$457.90
