CBGMD-12

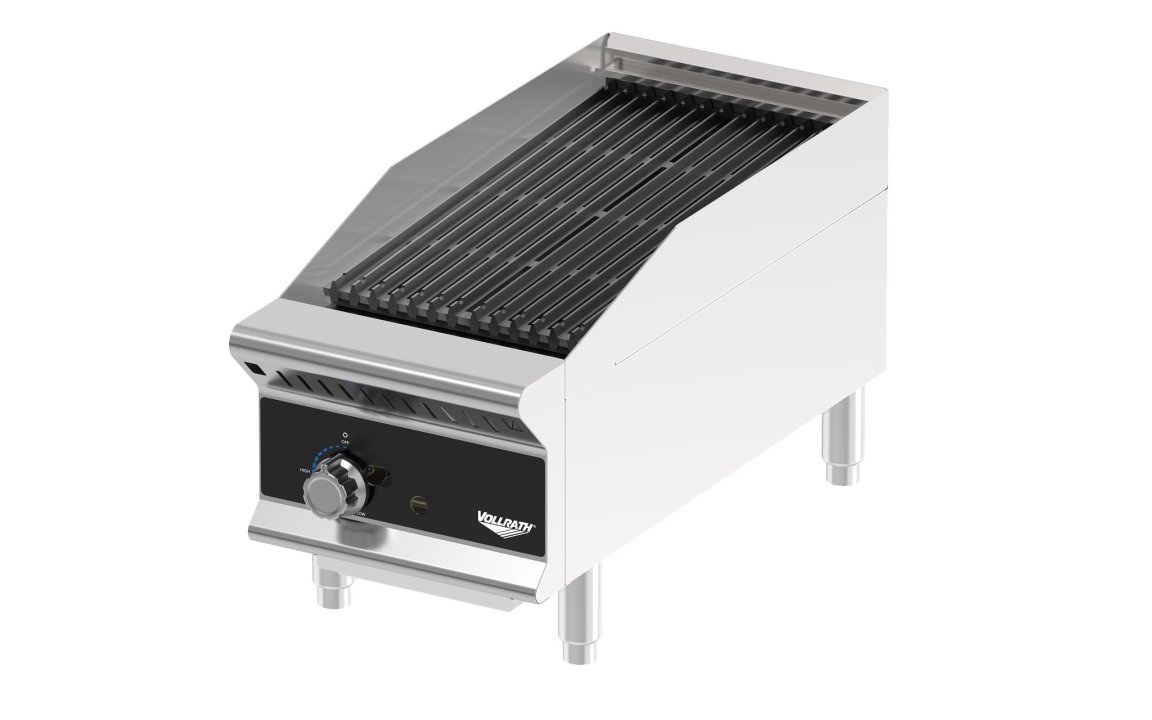

12-inch medium-duty gas charbroiler
Conforms to NSF/ANSI STD 4
This symbol represents food service equipment that is certified to to use in the production of food intended for human consumption, or the equipment is certified for use in an environment where food intended for human consumption is produced.
Conforms to ANSI STD Z83.11-2016. Certified to CSA STD 1.8-2016
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
Vollrath® gas charbroilers are designed for outstanding durability, from their welded stainless steel construction to their powerful stainless steel radiants. And you’ll appreciate the versatility you get with reversible grill plates — a narrow side with fat-draining channels, and a flat, wide surface for delicate items like fish. Angled adapter bars allow plate adjustment for slower cooking, fewer grease flare-ups, and food that’s grilled to perfection.
- 12-inch charbroiler’s 1 burner provides 40,000 BTUs
- Welded stainless steel construction ensures durability
- Adjustable flame settings create consistent, even heating
- Valve-protecting metal knobs are guaranteed for life
- Ships natural-gas-ready; includes propane conversion kit
- Radiant kit included; lava rock kit available separately
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | CBL90122 |
| UPC | 029419432592 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 28000 |
| Number of Burners | 1 |
| Pilot Type | Standing |

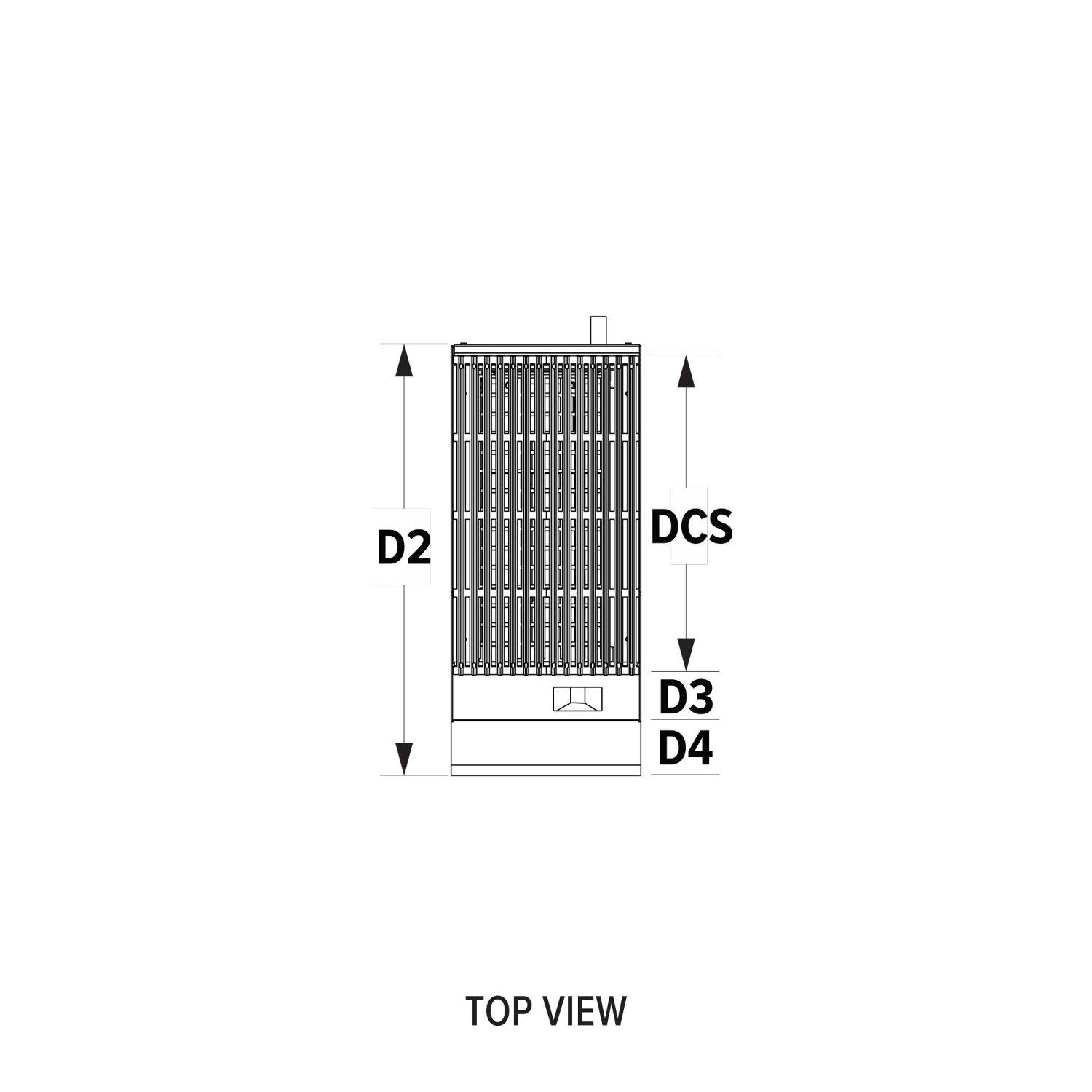

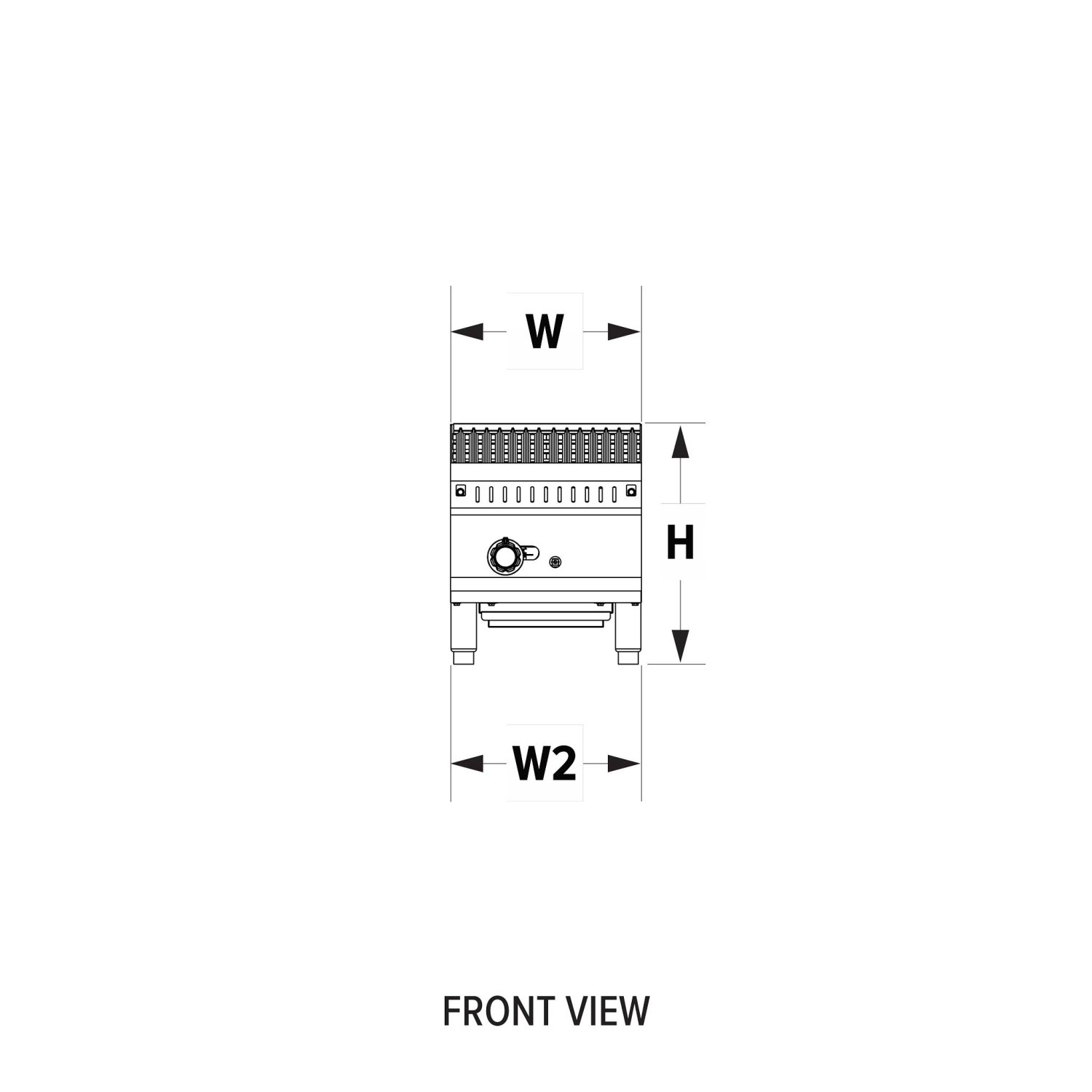

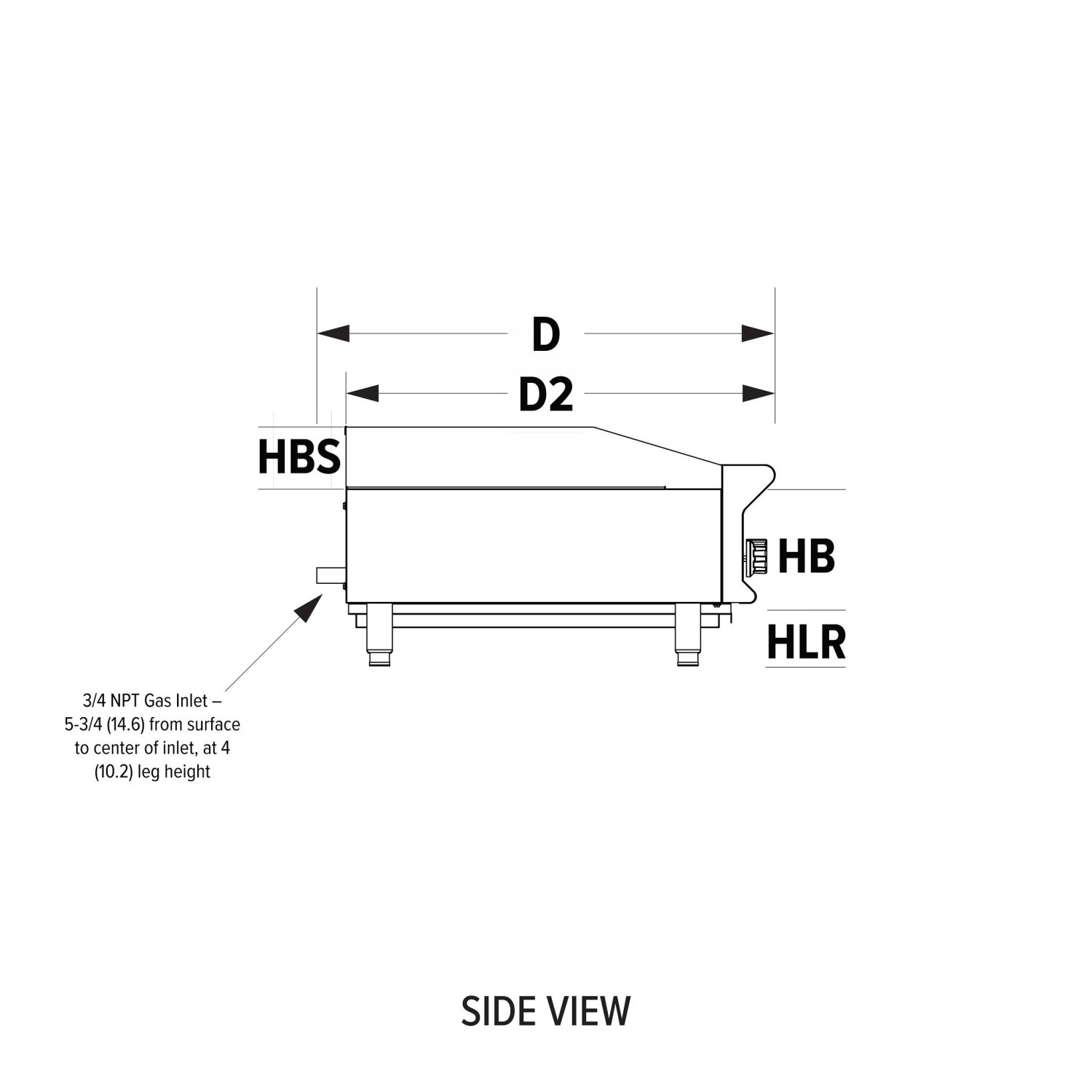

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 12.1 |
| (D) Depth (IN) | 29.25 |
| (H) Height (IN) | 15.25 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (WCS) Cooking Surface Width (IN) | 11.687 |
| (DCS) Cooking Surface Depth (IN) | 20.5 |
| (HBS) Backsplash Height (IN) | 3 |
| (HSS) Sidesplash Height (IN) | 3 |
| (WB) Width of Body (IN) | 12 |
| (DB) Depth of Body (IN) | 20.5 |
| (HB) Height of Body (IN) | 8.25 |
| (W) Width (CM) | 3.7 |
| (D) Depth (CM) | 74.3 |
| (H) Height (CM) | 38.735 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (WCS) Cooking Surface Width (CM) | 29.7 |
| (DCS) Cooking Surface Depth (CM) | 52 |
| (HBS) Backsplash Height (CM) | 7.6 |
| (HSS) Sidesplash Height (CM) | 7.6 |
| (WB) Width of Body (CM) | 30.4 |
| (DB) Depth of Body (CM) | 52 |
| (HB) Height of Body (CM) | 21 |
| Size | 12 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Aluminized Steel |
| Countertop or Drop-In | Countertop |
| Number of Controls | 1 |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Lot Weight (lbs.) | 101.4126 |
Product Accessories
| Name | Item # |
|---|---|
| Lava Rock Kit for the 12-inch medium-duty gas charbroiler | 353415-1 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CONTROL KNOB LG INSERT | 353373-1 | $11.30 |
| MANUAL CONTROL VALVE | 353367-1 | $75.90 |
| REGULATOR 5IN WC | 352509-1 | $227.70 |
| LEG, GAS APPLIANCE | 353376-1 | $43.10 |
| DRIP TRAY SUPPORT, MDCB | 353483-1 | $76.20 |
| MDCB BURNER RADIANT (LONG) | 353418-1 | $79.70 |
| CBGMD-12 FRONT PANEL ASSY | 354226-1 | $200.90 |
| HD GRIDDLE ORIFICE - NAT GAS | 353464-1 | $8.30 |
| GRATE SUPPORT - 12IN MDCB | 353416-1 | $55.40 |
| DRIP TRAY - 12IN HP-MDCB | 353365-1 | $86.50 |
| BURNER SUPPORT - 12IN GRIDDLE | 353384-1 | $27.70 |
| MDCB BURNER RADIANT (SHORT) | 353419-1 | $29.10 |
| FASCIA - 12IN MD CHARBROIL | 353412-1 | $25.00 |
| BURNER/PILOT ASSY - MDM GAS GR | 353385-1 | $139.20 |
| MANIFOLD - 12IN MDM GRIDDLE | 353389-1 | $214.80 |
| HD GRIDDLE ORIFICE - LP | 353465-1 | $6.90 |
| MDCB COOKING GRATE | 353417-1 | $194.00 |
Product Downloads
CAD / REVIT
