Discontinued18-inch Cayenne® medium-duty radiant / lava rock charbroiler
The Vollrath® Cayenne medium-duty charbroiler is built to last.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

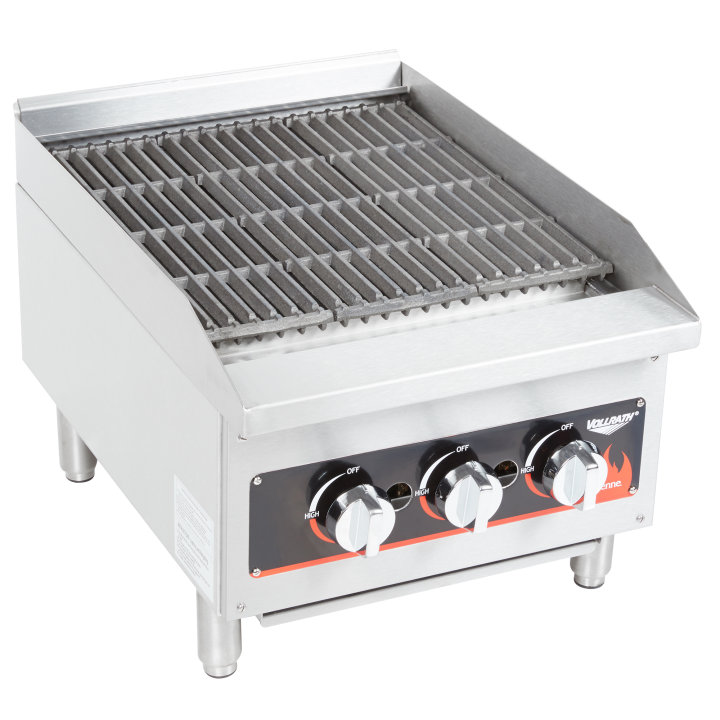

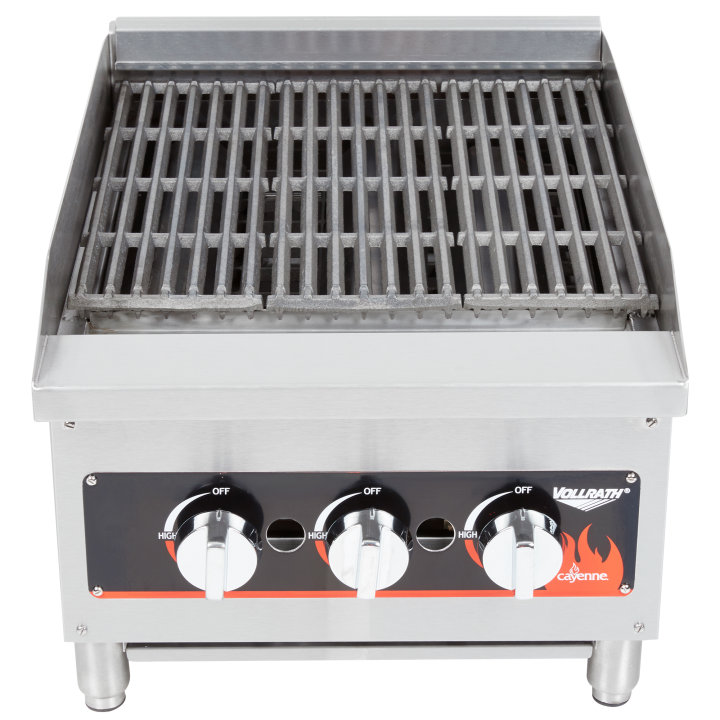

18-inch Cayenne® medium-duty radiant / lava rock charbroiler

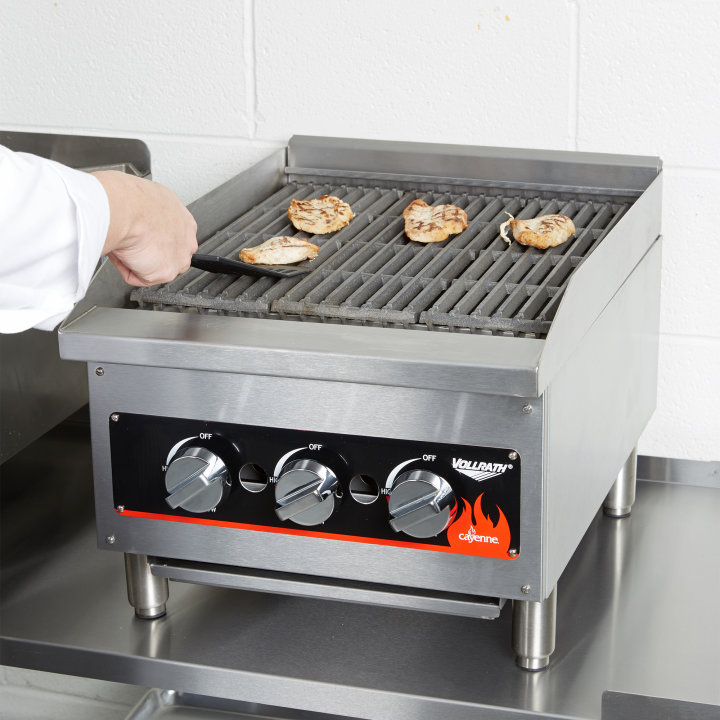

The Vollrath® Cayenne medium-duty charbroiler is built to last. One side of the versatile grill plate features narrow surfaces with integral channels designed to dispense excess fat, while the other side has flatter and wider grill surfaces for more delicate items like fish. Angled adapter bars enable the grill plates to be angled away from heat sources for slower cooking, directing grease away and minimizing flare-ups. The strong metal knobs won’t break or crack, protecting the interior gas valves. Fullywelded stainless and aluminized steel construction prevents grease and dirt buildup, while back and side splashes minimize messes. A full-width stainless steel drip pan keeps cleaning simple, and heavy-duty legs allow leveling adjustments to provide maximum stability. Now with even more BTUs, this three-burner charbroiler is sure to impress.
Versatile two-sided grill plate is ideal for a variety of meats as well as delicate items like fish
Bullnose design prevents burns

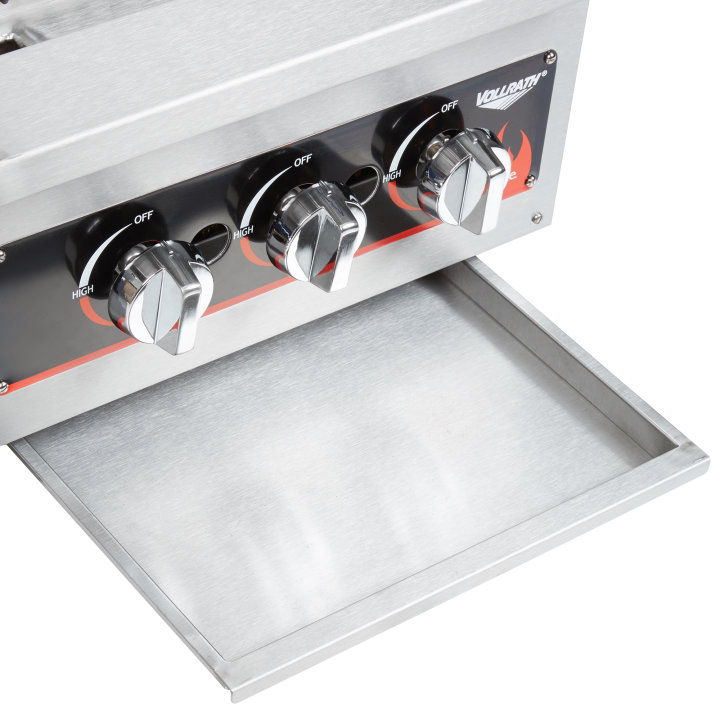

Strong metal knobs and knob guards won’t break or crack and are guaranteed for life
Includes kit for both radiant and lava rock setup
Shipped setup for natural gas — includes kit with regulator for field conversion to propane
Burners are placed only 6-inches apart to ensure powerful heating
19-inch cooking surface depth
2¾-inch backsplash and 2¼-inch side splashes prevent messes
60,000 BTU output
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | CBL90162 |
| UPC | 029419968954 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 60000 |
| Number of Burners | 3 |

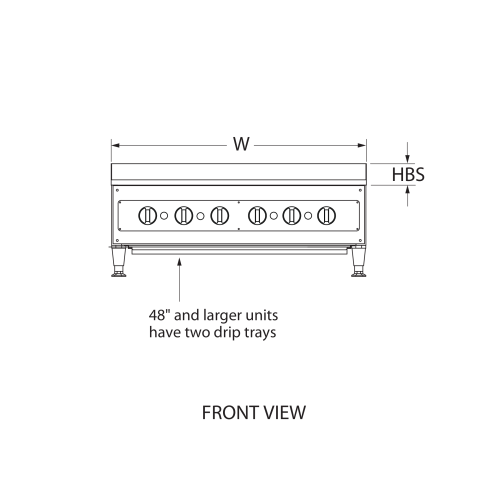

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 18 x 27 x 16 |
| (W) Width (IN) | 18 |
| (D) Depth (IN) | 27 |

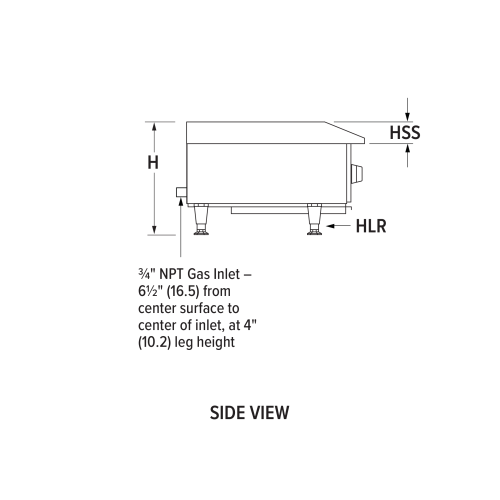

| (H) Height (IN) | 16 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (DCS) Cooking Surface Depth (IN) | 19 |
| (HBS) Backsplash Height (IN) | 2.75 |
| (HSS) Sidesplash Height (IN) | 2.25 |
| Overall Dimensions (CM) | 45.7 x 68.6 x 40.6 |
| (W) Width (CM) | 45.7 |
| (D) Depth (CM) | 68.6 |
| (H) Height (CM) | 40.6 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (DCS) Cooking Surface Depth (CM) | 48.2 |
| (HBS) Backsplash Height (CM) | 7 |
| (HSS) Sidesplash Height (CM) | 5.7 |
| Size | 18 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Countertop or Drop-In | Countertop |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 18.75 |
| Case Height | 19 |
| Case Length | 28.75 |
| Case Lot Cube (ft.) | 6.49 |
| Case Lot Weight (lbs.) | 124.0 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| GAS BURNER STRAIGHT MED. DUTY | XFTG9015 | $65.60 |
| WAFFLE GRATE BOTTOM / LARGE | XCBL9003 | $88.70 |
| LAVA ROCK 5LB | XCBL0005 | $31.10 |
| CONTROL SAFETY VALVE FTG/CBL/ | XFTG9002 | $73.50 |
| TOP GRATE CBL/CBR GAS NEW TYPE | XCBR9001 | $196.00 |
| PILOT VALVE FTG/CBL/CBR (#22) | XFTG9003 | $47.40 |
| LEG GAS APPLIANCE | XFTG9012 | $119.70 |
| WAFFLE GRATE SMALL CBL9016/902 | XCBL9004 | $56.40 |
| 3/4" NPT MANUAL BALL VALVE | XCGC0018 | $61.90 |
| PILOT BURNER BRACKET | XCBL9022 | $2.80 |
| GRATE ADJUSTMENT SUPPORT | XCBL9012 | $113.80 |
| DRIP TRAY RUNNERS (CBL/CBR ALL | XCBR9040 | $44.30 |
| CONTROL KNOB - GAS FTG/CB | XFTG9010 | $30.30 |
| DRIP TRAY CBL9016/CBR9016 | XCBR9016 | $144.40 |
| JET NAT 2.40 #40 | XFTG9007 | $19.60 |
| Gas Burner Radiant Cover | XCBR9002 | $112.40 |
| REGULATOR 4IN WC | 353374-1 | $227.70 |
