CBGHD-36

36-inch heavy duty gas radiant charbroiler

Our heavy-duty gas charbroiler performs like a powerhouse, thanks to high-output burners and a durable, welded stainless steel design.

Conforms to NSF/ANSI STD 4
This symbol represents food service equipment that is certified to to use in the production of food intended for human consumption, or the equipment is certified for use in an environment where food intended for human consumption is produced.
Conforms to ANSI STD Z83.11-2016. Certified to CSA STD 1.8-2016
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$4830.42 MSRP

$8,050.70 List Price

Where to Buy

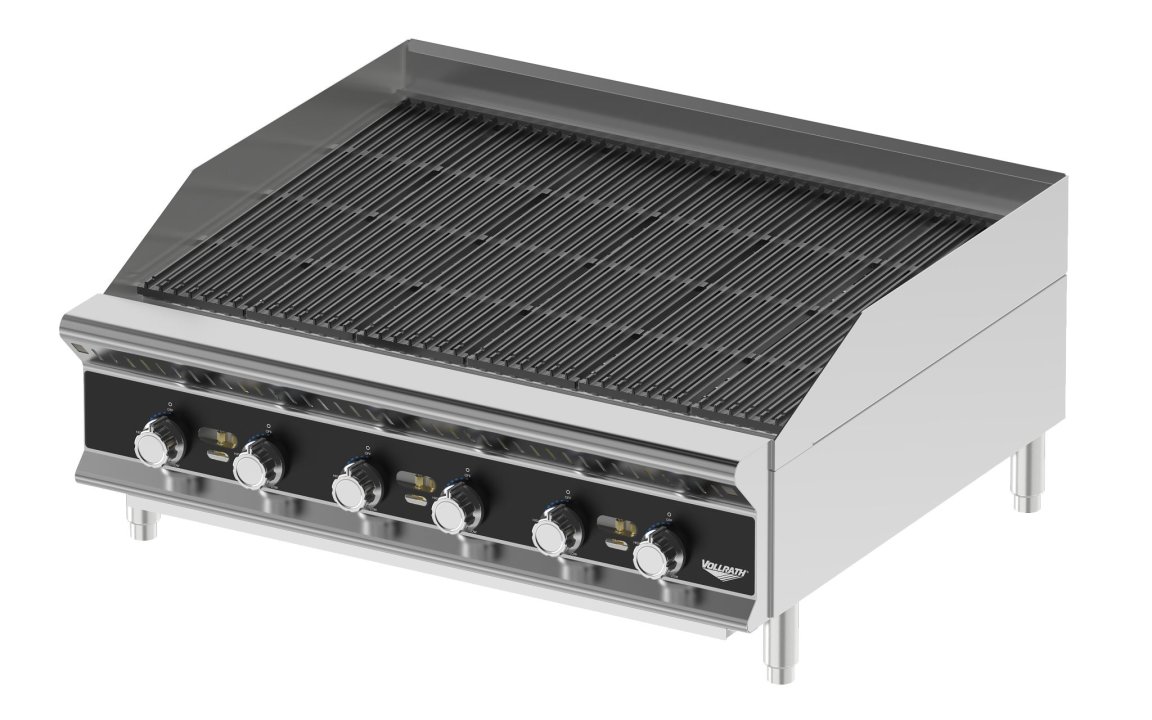

36-inch heavy duty gas radiant charbroiler

Name: 36-inch heavy duty gas radiant charbroiler
Brand: Vollrath Foodservice
SKU: CBGHD-36
Price: 8050.700000000 USD

Our heavy-duty gas charbroiler performs like a powerhouse, thanks to high-output burners and a durable, welded stainless steel design. You’ll appreciate the versatility too, thanks to reversible grill plates — a narrow side with fat-draining channels, and a flat, wide surface for delicate items like fish. Angled adapter bars allow plate adjustment for slower cooking, fewer grease flare-ups, and food that’s grilled to perfection.

36-inch charbroiler’s 6 burners provide 120,000 BTUs

Heavy-duty cast-iron radiants heat quickly and evenly

Thick stainless steel splashes and grates are easy to clean

Valve-protecting metal knobs are guaranteed for life

Heavy-duty legs make leveling safe and simple

Ships natural-gas-ready; includes propane conversion kit

Radiant kit included; lava rock kit available separately

Product Specifications

Model Information

Name	Value
UPC	029419432547

Gas Specifications

Name	Value
Output (BTU)	120000
Number of Burners	6
Pilot Type	Standing

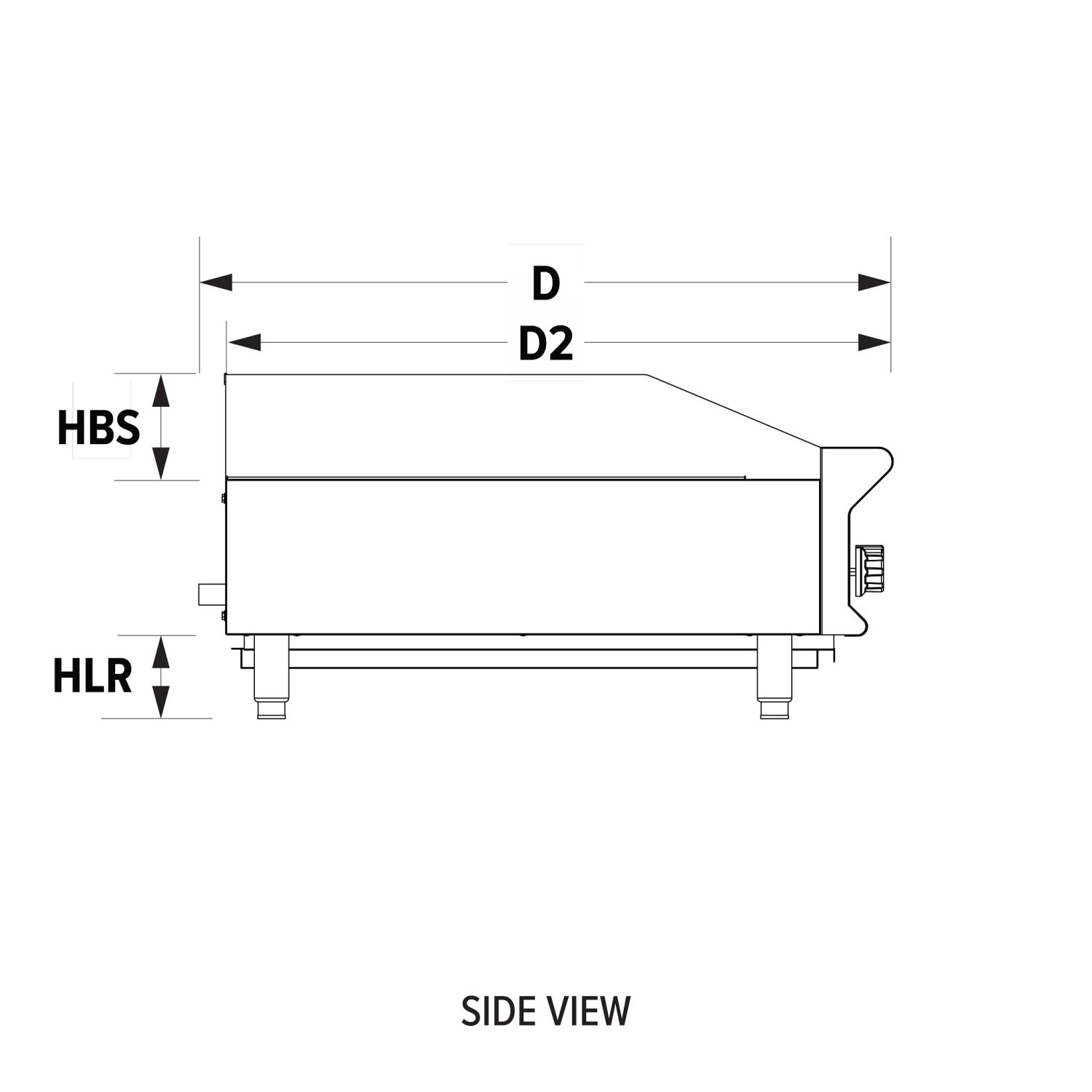

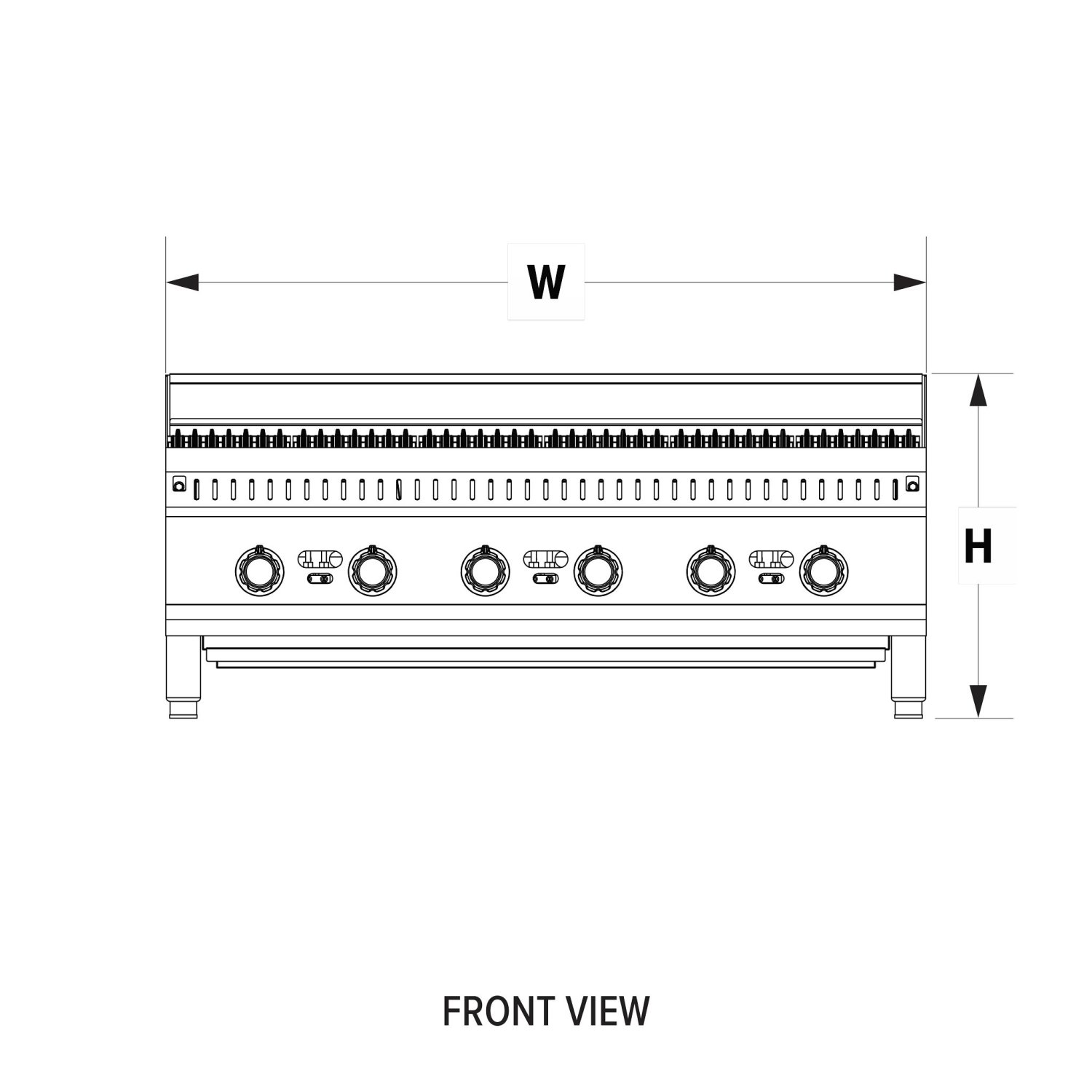

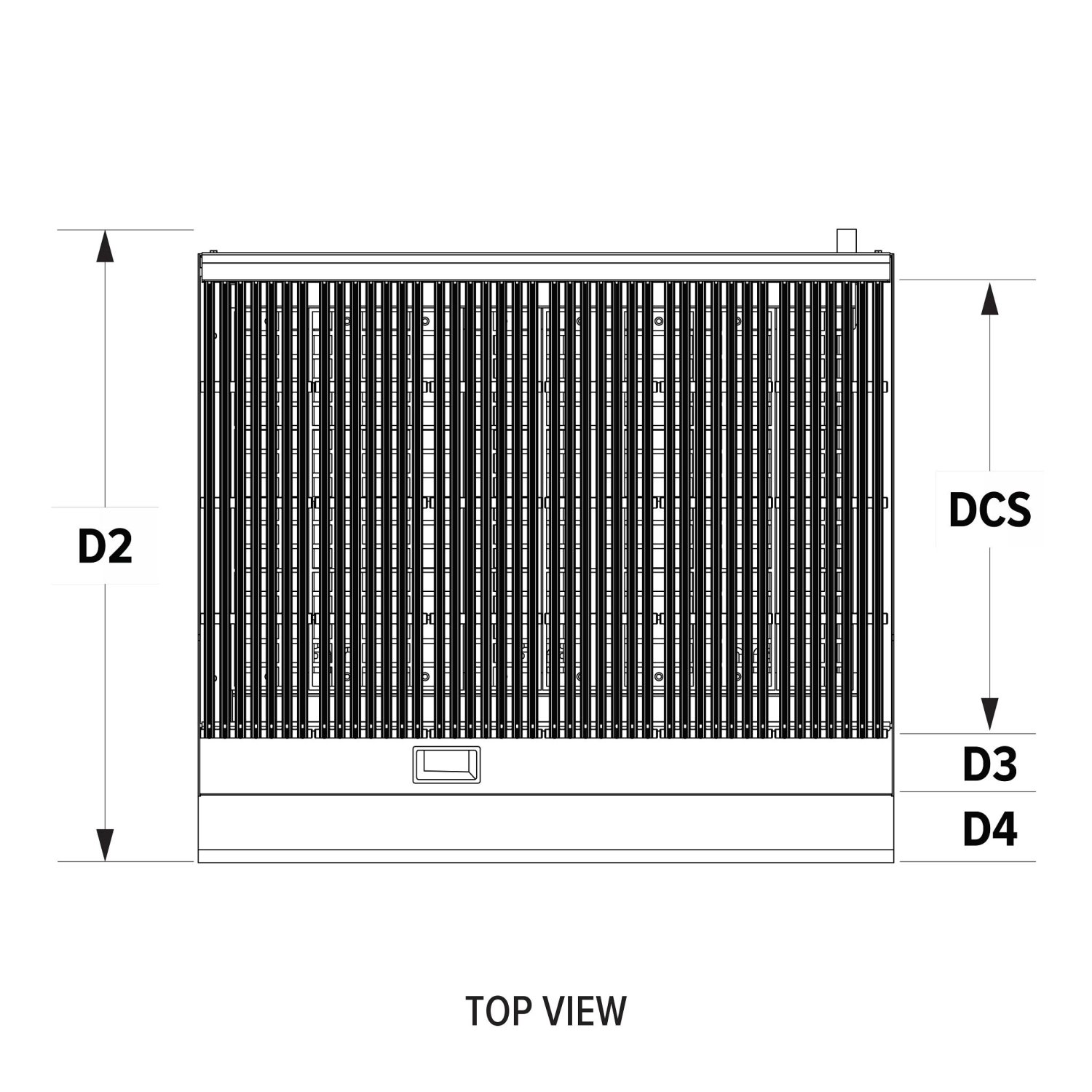

Unit Dimensions

Name	Value
(W) Width (IN)	36
(D) Depth (IN)	32.375
(D2) Secondary Depth (IN)	31.375
(D3) Additional Depth (IN)	3.25
(D4) Additional Depth (IN)	3.25
(H) Height (IN)	16.375
(HLR) Adjustable Legs (IN)	4 - 5.5
(WCS) Cooking Surface Width (IN)	35.687
(DCS) Cooking Surface Depth (IN)	24
(HBS) Backsplash Height (IN)	5
(HSS) Sidesplash Height (IN)	5
(DB) Depth of Body (IN)	24
(HB) Height of Body (IN)	7.375
(W) Width (CM)	91.4
(D) Depth (CM)	82.23
(D2) Secondary Depth (CM)	80
(D3) Additional Depth (CM)	8.3
(D4) Additional Depth (CM)	8.3
(H) Height (CM)	41.59
(HLR) Adjustable Legs (CM)	10.2 - 14
(WCS) Cooking Surface Width (CM)	90.7
(DCS) Cooking Surface Depth (CM)	61
(HBS) Backsplash Height (CM)	12.7
(HSS) Sidesplash Height (CM)	12.7
(DB) Depth of Body (CM)	61
(HB) Height of Body (CM)	18.7
Size	36

Construction

Name	Value
Number of Controls	6

Additional Specifications

Name	Value
Number of Drip Trays	1

Case Lot Measurement

Name	Value
Case Lot	1
Case Lot Weight (lbs.)	217.1553

Product Accessories

Name	Item #
Lava Rock Kit for the 36-inch heavy duty gas radiant charbroiler	352576-1

Product Parts

Name	Part #	Price
HDCB COOKING GRATE	353444-1	$227.70
1.85MM BRASS ORIFICE	352503-1	$6.20
BURNER/PILOT ASSY - HDCB	353439-1	$169.60
RIGHT BURNER/PILOT ASSY - HDCB	352519-1	$170.80
CONTROL KNOB LG INSERT	353373-1	$11.30
HDCB BURNER RADIANT	353445-1	$126.50
MANUAL CONTROL VALVE	353367-1	$75.90
REGULATOR 5IN WC	352509-1	$227.70
DRIP TRAY - 36IN HDCB	352516-1	$219.30
MANIFOLD - 36IN HDCB	353448-1	$443.40
DRIP TRAY SUPPORT, HDCB	353484-1	$48.50
FASCIA - 36IN HD CHARBROIL	353446-1	$76.20
CBGHD-36 FRONT PANEL ASSY	354243-1	$365.80
1.35MM BRASS ORIFICE	352504-1	$6.30
HDCB VALVE CONNECTION	352502-1	$30.10
LEG, GAS APPLIANCE	353376-1	$43.10
GRATE SUPPORT - 36IN HDCB	353449-1	$138.60
BURNER SUPPORT - 36IN HDCB	353447-1	$55.40
