972CG
Discontinued72-inch Cayenne® heavy-duty radiant / lava rock charbroiler
Vollrath's Cayenne® heavy-duty charbroilers are built solid.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

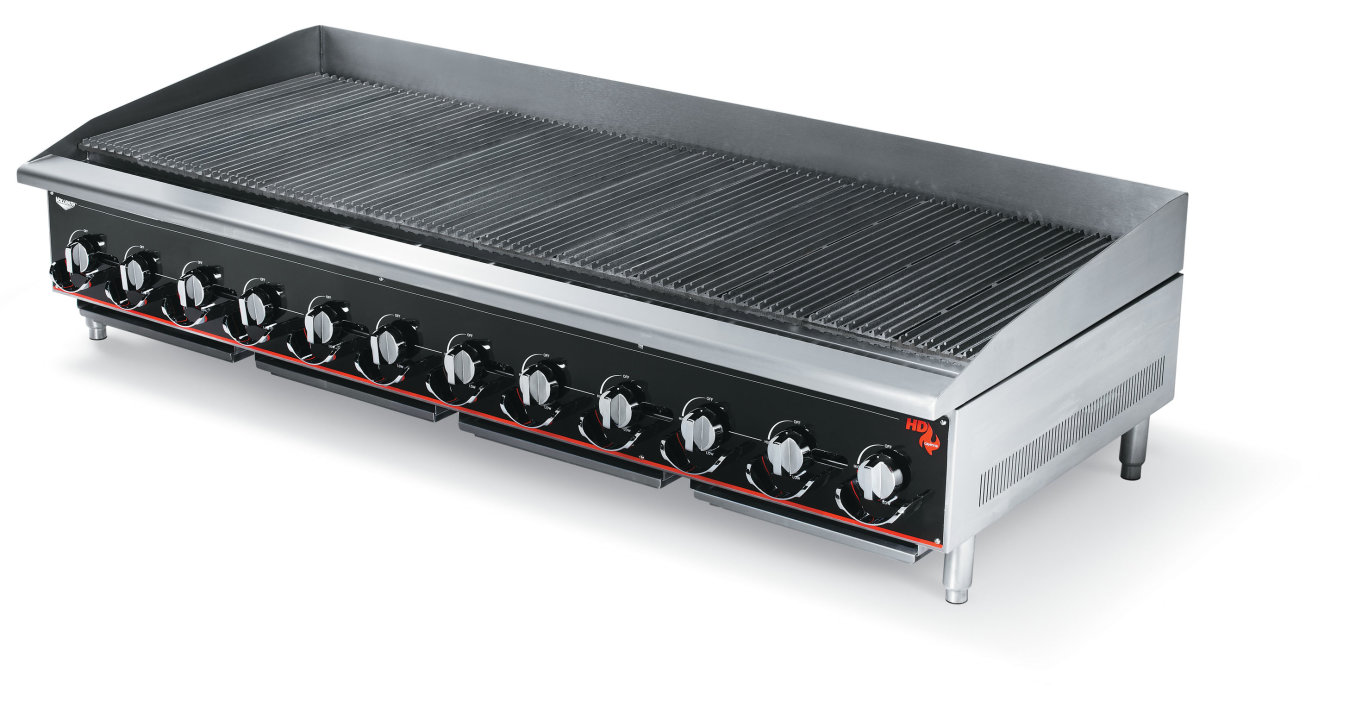

72-inch Cayenne® heavy-duty radiant / lava rock charbroiler
Vollrath's Cayenne® heavy-duty charbroilers are built solid. Versatile grill plates feature narrower grill surfaces on one side, with integral channels specially designed to dispense excess fat, reducing smoke and flames. The flip side features flatter, wider grill surfaces, ideal for fish and other more delicate items. Angled adaptor bars enable the grill plates to be angled away from heat for slower cooking. This directs grease away to minimize flareups.
Ships complete with kits for both radiant and lavarock Set
Burners placed every 6" (15.2 cm) for maximum coverage and control
2 x 20,000 BTU high output burners for 40,000 BTUper 12" of cooking surface
Shipped complete for radiant or lava rock use
Shipped set up for natural gas - includes kit with regulator for field conversion to propane
Stainless steel, fully-welded construction to eliminate grease and dirt traps
Superior stainless steel burner design allows for better heat distribution and faster recovery
Heavy-duty gas valves ensure long life
Heavy-duty adjustable legs
Heavy-duty cast iron radiants provide even heat distribution and retention
Heavy-duty 3mm thick back and side splashes contain splash and keep food on the unit
All metal knobs and knob guards protect gas valves from damage and won't break or crack and are guaranteed for life
3/4" NPT gas inlet
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419846870 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 240000 |
| Number of Burners | 12 |
| Pilot Type | Standing |

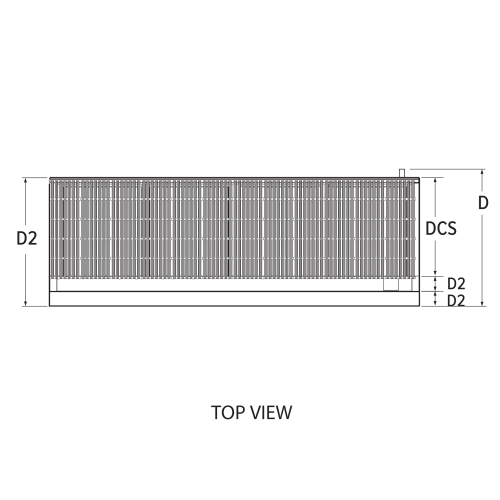

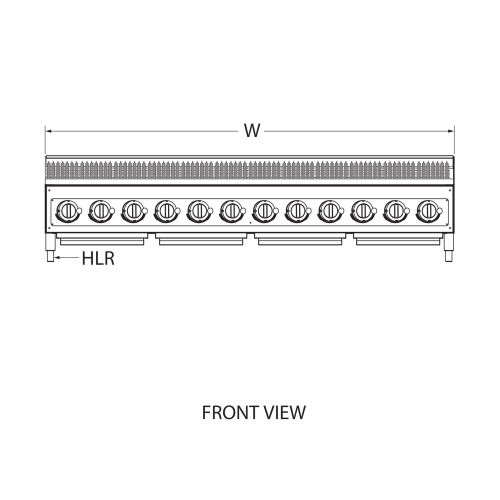

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 72 x 31 x 7.437 |
| (W) Width (IN) | 72 |
| (D) Depth (IN) | 32.5 |
| (D2) Secondary Depth (IN) | 31 |
| (D3) Additional Depth (IN) | 3.25 |
| (H) Height (IN) | 17.37 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (DCS) Cooking Surface Depth (IN) | 24 |
| (HBS) Backsplash Height (IN) | 5 |
| Overall Dimensions (CM) | 182.9 x 78.7 x 43.3 |
| (W) Width (CM) | 182.9 |
| (D) Depth (CM) | 64.8 |
| (D2) Secondary Depth (CM) | 78.7 |
| (D3) Additional Depth (CM) | 8.3 |
| (H) Height (CM) | 44.2 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (DCS) Cooking Surface Depth (CM) | 61 |
| (HBS) Backsplash Height (CM) | 12.7 |
| Size | 72 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Control Type | Manual |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 4 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 36.5 |
| Case Height | 25 |
| Case Length | 74.5 |
| Case Lot Cube (ft.) | 39.22 |
| Case Lot Weight (lbs.) | 700.0 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| TOP GRATE CBL/CBR GAS NEW TYPE | XCBR9001 | $196.00 |
| HD CHAR GRILL | 21484-1 | $205.70 |
| PILOT VALVE FTG/CBL/CBR (#22) | XFTG9003 | $47.40 |
| PILOT BURNER BRACKET | XCBL9022 | $2.80 |
| STRAIGHT BURNER 20 000 BTU | 21472-1 | $55.50 |
| BURNER COVER LAVA ROCK | XCBL9005 | $49.80 |
| HD CAST IRON RADIANT | 21481-1 | $113.70 |
| 3/4" NPT MANUAL BALL VALVE | XCGC0018 | $61.90 |
| CONTROL KNOB - GAS FTG/CB | XFTG9010 | $30.30 |
| LEG GAS APPLIANCE | XFTG9012 | $119.70 |
| TOP GRATE SUPPORT CBL9036 | XCBL9009 | $54.20 |
| DRIP PAN HD CHAR CB2072 | 21477-1 | $205.10 |
| PILOT BURNER | 21486-1 | $76.50 |
| HD LAVA ROCK GRATE-LARGE | 2146820-1 | $158.30 |
| GAS VALVE TYPE B 1.15MM HOLE | 2146715-1 | $81.60 |
| LAVA ROCK 5LB | XCBL0005 | $31.10 |
| JET NAT 2.40 #40 | XFTG9007 | $19.60 |
| HD LAVA ROCK GRATE-SMALL | 2146810-1 | $116.60 |
