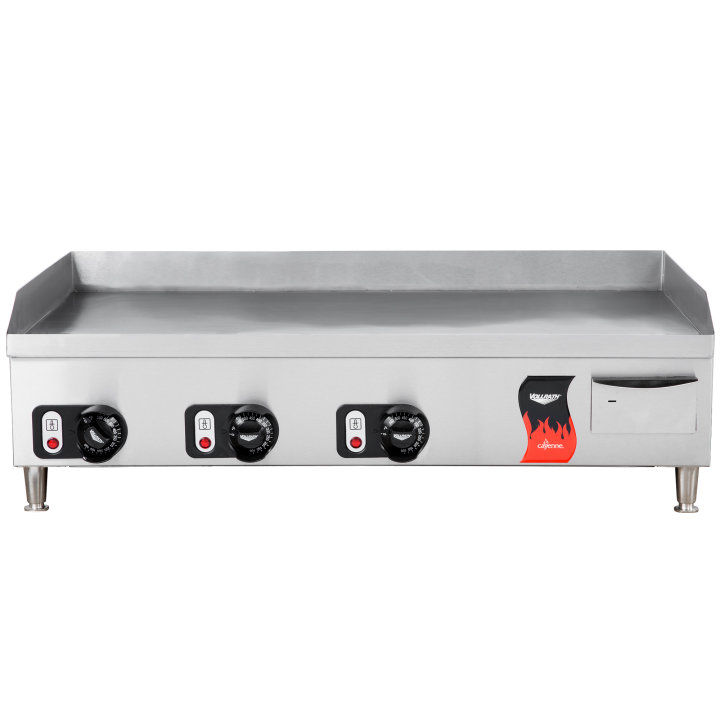

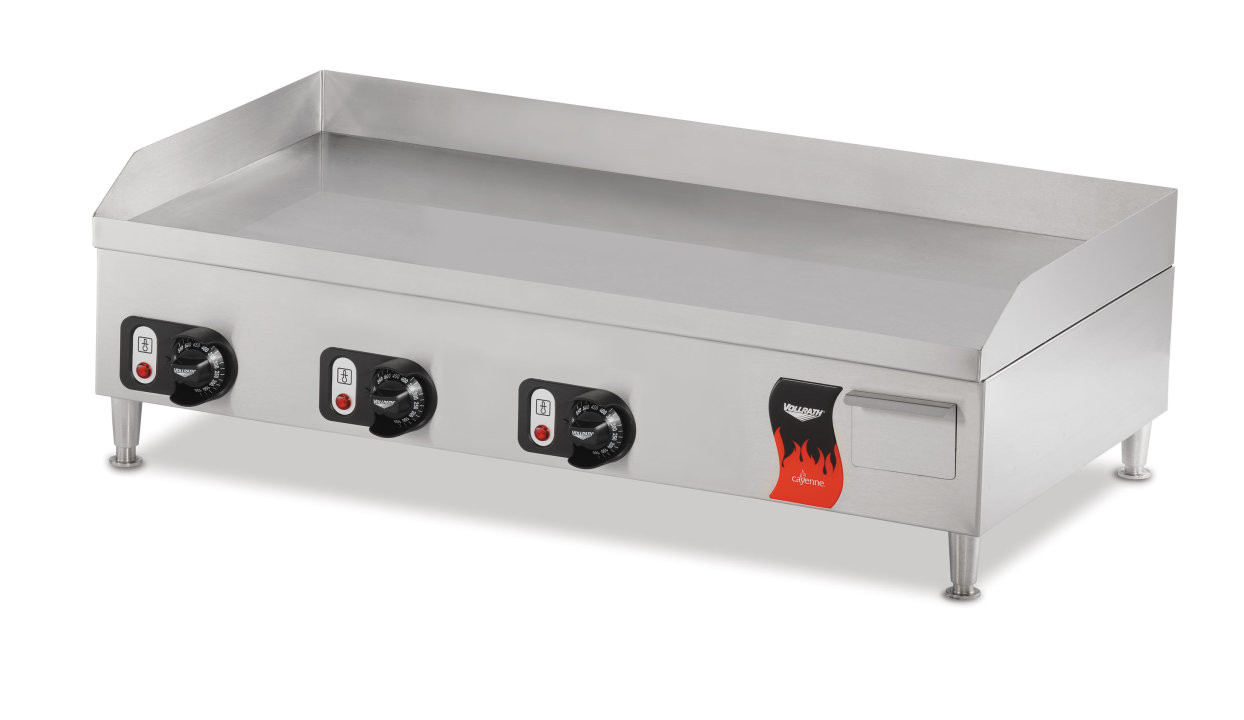

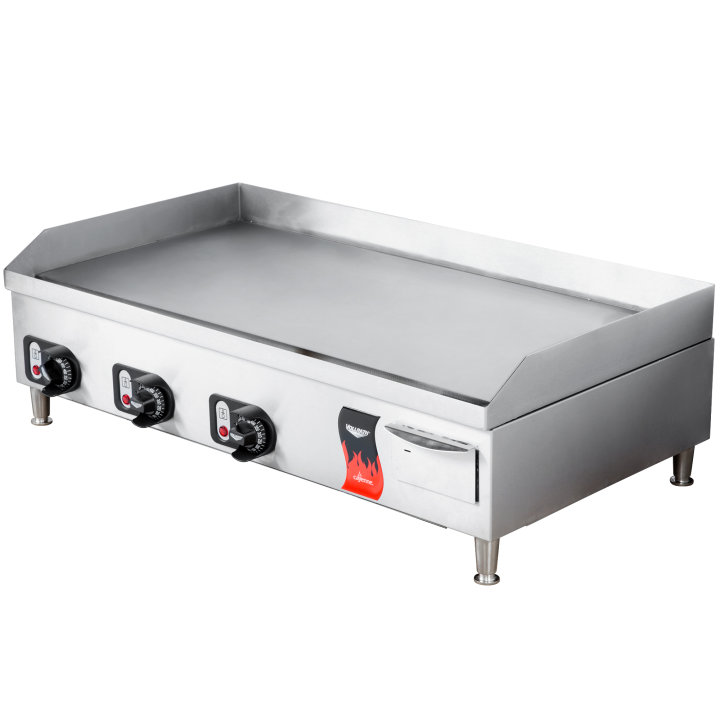

36-inch 220-volt Cayenne® flat-top griddle
The Vollrath® 36-inch Cayenne griddle is versatile, powerful and built to last.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
36-inch 220-volt Cayenne® flat-top griddle

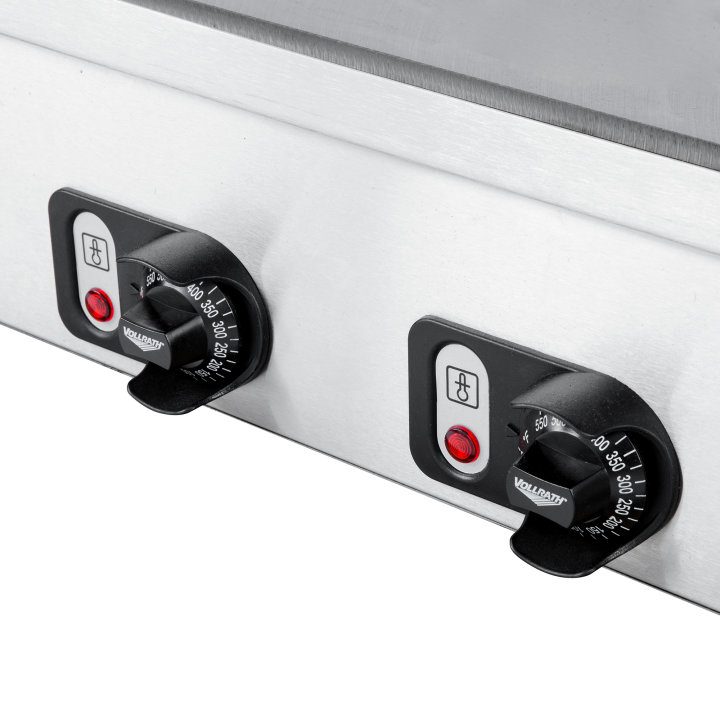

The Vollrath® 36-inch Cayenne griddle is versatile, powerful and built to last. The superior heating element design ensures even heating over the entire cooking surface of this unit, which is thermostatically controlled for accurate heating up to 570°F. This model features independent controls per 12-inch heating zone, creating multiple stations in one unit. The heavy-duty polished cooking surface retains heat, and the knob guards prevent accidental temperature adjustments. The back and sloped side splashes prevent messes, and the internally-mounted grease collection pan makes cleaning easier and gives this griddle a sleeker appearance.
Ideal for a variety of foods, including steaks, burgers, eggs, pancakes and bacon
Powerful heating element ensures fast heating and recovery times
Heavy-duty legs allow adjustments based on your preference
Griddle plate is fully welded to base for additional stability

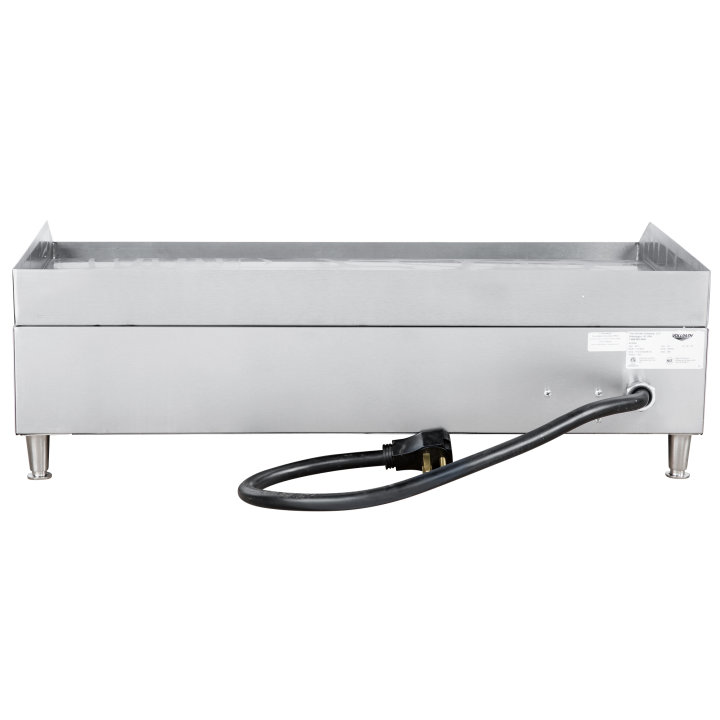

All units ship with cord and plug installed
16½-inch cooking surface depth
2½-inch back and sloped side splashes minimize messes
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FTA8036 |
| UPC | 029419719020 |

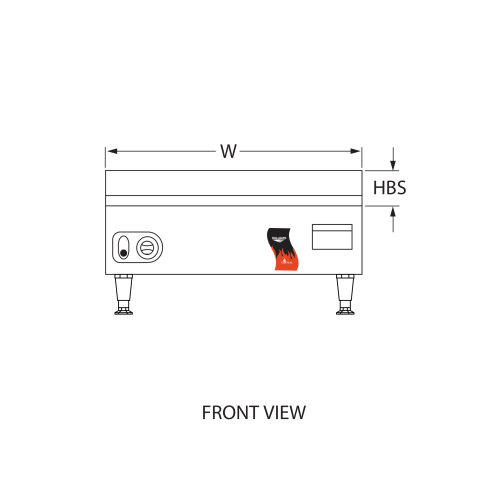

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 35.25 x 20 x 12.625 |
| (W) Width (IN) | 35.25 |
| (D) Depth (IN) | 20 |
| (H) Height (IN) | 12.62 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (DCS) Cooking Surface Depth (IN) | 16.5 |
| (HBS) Backsplash Height (IN) | 2.5 |
| (HSS) Sidesplash Height (IN) | 2.5 |
| Overall Dimensions (CM) | 89.6 x 50.8 x 32.1 |
| (W) Width (CM) | 89.6 |
| (D) Depth (CM) | 50.8 |
| (H) Height (CM) | 32.1 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (DCS) Cooking Surface Depth (CM) | 41.9 |
| (HBS) Backsplash Height (CM) | 6.4 |
| (HSS) Sidesplash Height (CM) | 6.4 |
| Size | 36 |
Electrical
| Name | Value |
|---|---|
| Amps | 38.2 |
| Cord Length (IN) | 36 |
| Cord Length (CM) | 91.4 |
| Plug | NEMA 6-50P |
| Voltage | 220 |
| Watts | 8400 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Polished Steel |
| Construction Material 3 | Electrical Components |
| Countertop or Drop-In | Countertop |
| Number of Controls | 3 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 21.75 |
| Case Height | 14.25 |
| Case Length | 38.5 |
| Case Lot Cube (ft.) | 6.91 |
| Case Lot Weight (lbs.) | 110.0 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| THERMOSTAT TSI; TSA(ALL) (#43 | XTSA0007 | $299.40 |
| CONTROL PANEL FASCIA - BLACK | XAA0009 | $31.70 |
| GRIDDLE ELECTRIC LEG | XFTA0010 | $58.80 |
| POWER CORD COA8005/FTA8036/CGA | XCOA5013 | $165.90 |
| PILOT LIGHT 220V (RED) | XAA0002 | $18.10 |
| INSULATION PAD | XFTA0013 | $97.20 |
| CABLE RESTRAINT COA8005 | XCOA5012 | $73.80 |
| CONNECTOR BLOCK FTA8036/COA800 | XFTA0002 | $28.30 |
| ELEMENT FTA8036 (#4) 220V 280 | XFTA0008 | $227.40 |
| ELEMENT COVER | XFTA0003 | $70.30 |
| VOLLRATH CONTROL KNOB TSA7009/ | XTSA0015 | $18.90 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
