40715

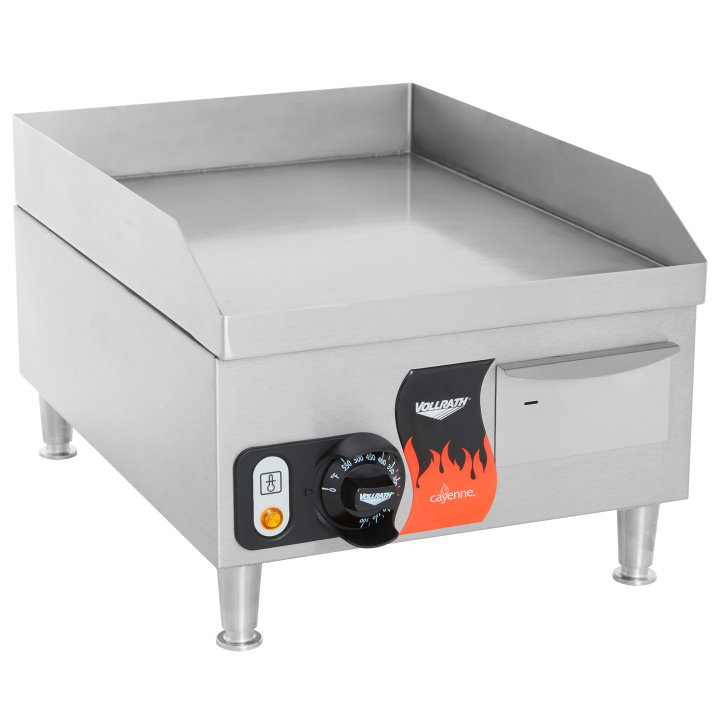

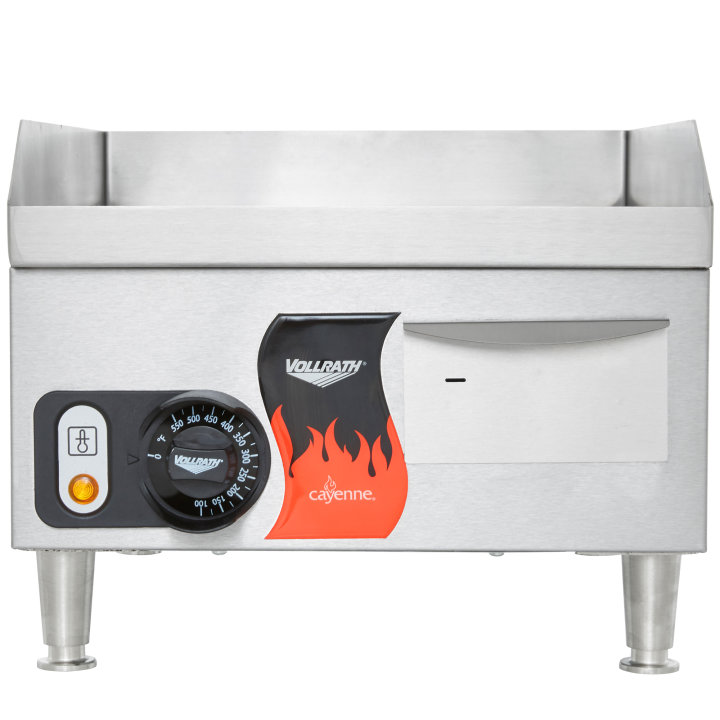

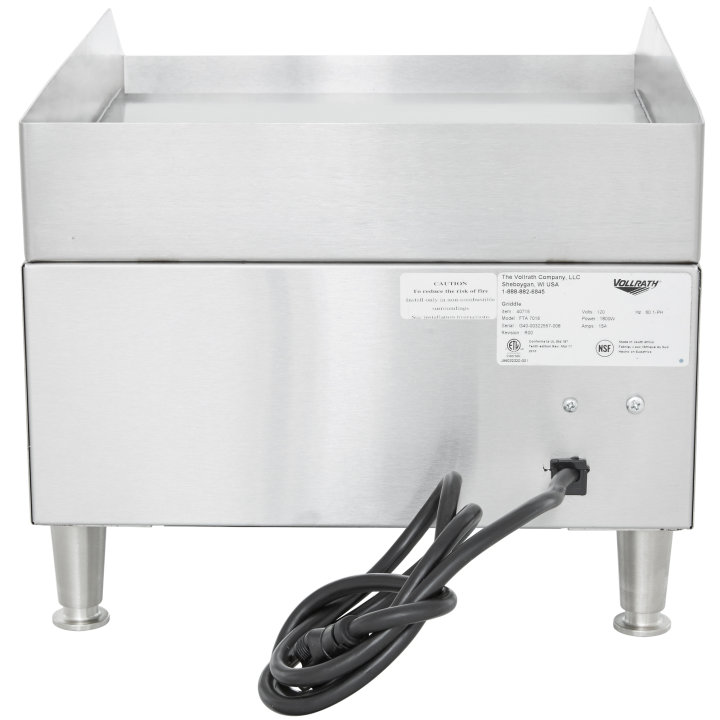

14-inch 120-volt Cayenne® flat-top griddle
The Vollrath® 14-inch Cayenne griddle is versatile, powerful and built to last.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

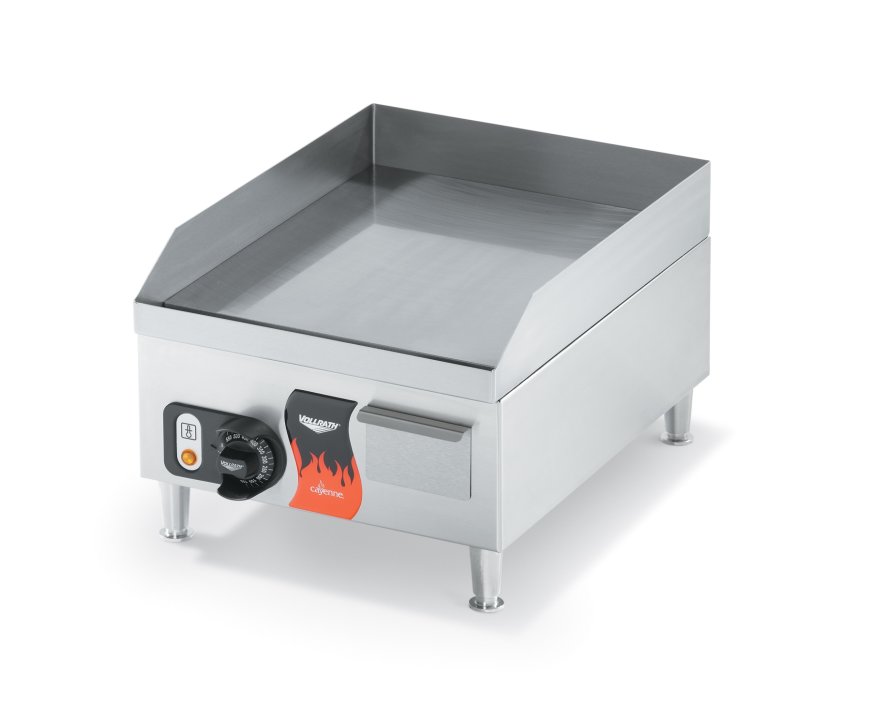

14-inch 120-volt Cayenne® flat-top griddle

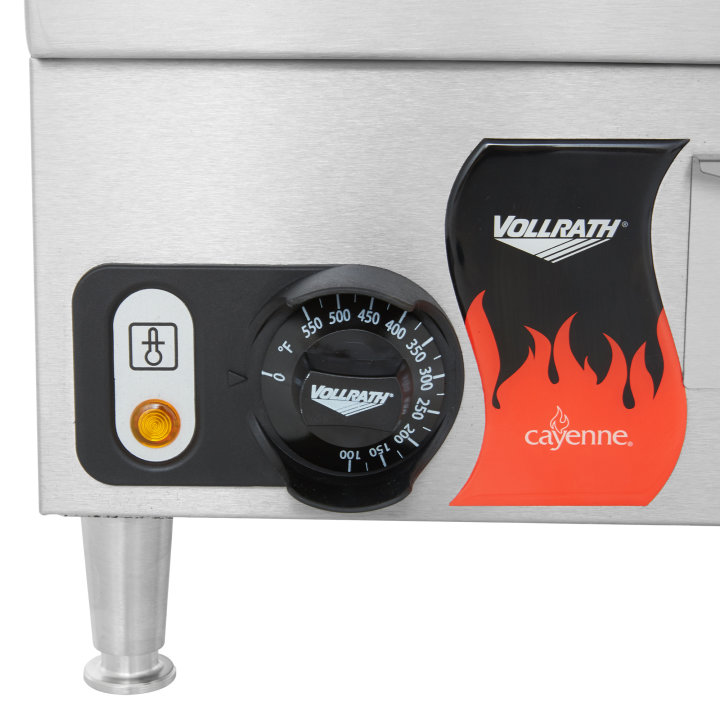

The Vollrath® 14-inch Cayenne griddle is versatile, powerful and built to last. The superior heating element design ensures even heating over the entire cooking surface of this unit, which is thermostatically controlled for accurate heating up to 570°F. The heavy-duty polished cooking surface retains heat, and the knob guard prevents accidental temperature adjustments. The back and sloped side splashes prevent messes, and the internally-mounted grease collection pan makes cleaning easier and gives this griddle a sleeker appearance. This 14-inch electric griddle is the ideal size for buffets or catering applications.

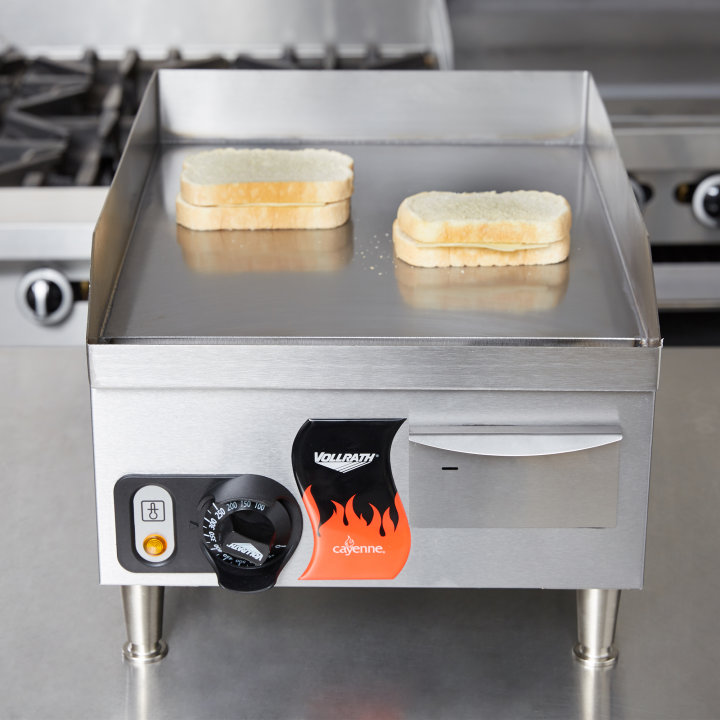

Ideal for a variety of foods, including steaks, burgers, eggs, pancakes and bacon
Powerful heating element ensures fast heating and recovery times
Heavy-duty legs allow adjustments based on your preference
Griddle plate is fully welded to base for additional stability
All units ship with cord and plug installed
16½-inch cooking surface depth
2½-inch back and sloped side splashes minimize messes
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FTA7016 |
| UPC | 029419718986 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 14.25 x 20 x 11 |
| (W) Width (IN) | 14.25 |
| (D) Depth (IN) | 20 |
| (H) Height (IN) | 11 |
| (HLR) Adjustable Legs (IN) | 2.375 - 3.375 |
| (DCS) Cooking Surface Depth (IN) | 16.5 |
| (HBS) Backsplash Height (IN) | 2.5 |
| (HSS) Sidesplash Height (IN) | 2.5 |
| Overall Dimensions (CM) | 36.2 x 50.8 x 27.9 |
| (W) Width (CM) | 36.2 |
| (D) Depth (CM) | 50.8 |
| (H) Height (CM) | 27.9 |
| (HLR) Adjustable Legs (CM) | 6 - 8.6 |
| (DCS) Cooking Surface Depth (CM) | 41.9 |
| (HBS) Backsplash Height (CM) | 6.4 |
| (HSS) Sidesplash Height (CM) | 6.4 |
| Size | 14 |
Electrical
| Name | Value |
|---|---|
| Amps | 15 |
| Cord Length (IN) | 36 |
| Cord Length (CM) | 91.4 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1800 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 49 |
| Weight (KG) | 22.23 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Electrical Components |
| Countertop or Drop-In | Countertop |
| Number of Controls | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 17.5 |
| Case Height | 14.25 |
| Case Length | 21.5 |
| Case Lot Cube (ft.) | 3.1 |
| Case Lot Weight (lbs.) | 49.0 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| THERMOSTAT TSI; TSA(ALL) (#43 | XTSA0007 | $299.40 |
| CONTROL PANEL FASCIA - BLACK | XAA0009 | $31.70 |
| GRIDDLE ELECTRIC LEG | XFTA0010 | $58.80 |
| CABLE RESTRAINT COA7001/7002/8 | XCOA1013 | $9.50 |
| INSULATION PAD | XFTA0013 | $97.20 |
| POWERCORD 120V (NEMA5-15P) | XAA0005 | $54.80 |
| ELEMENT FTA7016 (# 4) 110V 18 | XFTA0001 | $200.20 |
| PILOT LIGHT 110V (YELLOW) | XAA0011 | $13.10 |
| CONNECTOR BLOCK SAA8003 (#24) | XSAA1012 | $12.20 |
| ELEMENT COVER | XFTA0003 | $70.30 |
| VOLLRATH CONTROL KNOB TSA7009/ | XTSA0015 | $18.90 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
