VCBA118-37
120-volt frozen-beverage machine with one 1.6-gallon bowl
The frozen-beverage machine by Vollrath is designed for a variety of frozen treats including slushies, granitas, smoothies, cocktails and more.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

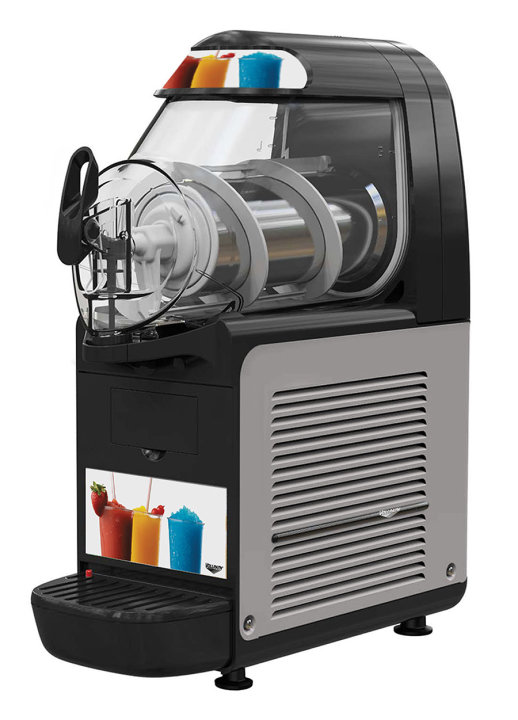

120-volt frozen-beverage machine with one 1.6-gallon (6-liter) bowl
The frozen-beverage machine by Vollrath is designed for a variety of frozen treats including slushies, granitas, smoothies, cocktails and more. The clear bowl provides excellent product visibility, gently illuminated by an interior light. Easy-to-use controls are customizable, allowing you to adjust temperature and consistency for increased versatility. A magnetic drive system is more reliable and durable than a traditional mechanical drive system, resulting in less maintenance and longer service. The large freezing surface and high-quality compressor make this machine more efficient, allowing it to reach ideal temperatures quickly, and the gasketless spigot design makes cleaning simple, all of which save you valuable time.
Simple controls allow for temperature and consistency customization
Magnetic drive system provides years of service
Large freezing surface and high-quality compressor improve efficiency
Gasketless spigot makes cleaning quick and efficient
For parts and service information, please contact our White Glove Service Network or Parts Town: Contact White Glove Service Network: 800-319-9549 Contact Parts Town: 855-304-8992
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | VCBA118 |
| UPC | 671080737485 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 7.75 x 19.5 x 23.75 |
| (W) Width (IN) | 7.75 |
| (D) Depth (IN) | 19.5 |
| (H) Height (IN) | 23.75 |
| (WL) Width between legs | 5 |
| (DL) Depth between legs | 11.3125 |
| (W) Width (CM) | 19.4 |
| (D) Depth (CM) | 49.7 |
| (H) Height (CM) | 60.5 |
| (WL) Width between legs (CM) | 12.7 |
| (DL) Depth between legs (CM) | 28.7 |
Electrical
| Name | Value |
|---|---|
| Amps | 4 |
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA 5-15P |
| Plug Connection | Yes |
| Voltage | 120 |
Volume
| Name | Value |
|---|---|
| Bowl Capacity (GAL) | 1.6 |
| Bowl Capacity (L) | 6 |
| Capacity (GAL) | 1.6 |
| Capacity (L) | 6 |
| Container Capacity (GAL) | 1.6 |
| Container Capacity (L) | 6 |
| Total Container Capacity (GAL) | 1.6 |
| Total Container Capacity (L) | 6 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 58 |
| Weight (KG) | 26.3 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R134A |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Compressor (Btu/hr) | 830 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 10 |
| Case Height | 28 |
| Case Length | 22 |
| Case Lot Weight (lbs.) | 58 |
Product Accessories
Product Downloads
Download Sell Sheet
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
