72622

Discontinued

Cayenne® Model 1001 Warmer

  • Made in USA
  • National Sanitation Foundation
  • Underwriter Laboratories

    This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

MSRP
$0.00 List Price

The Model 1001 Warmer offers the lowest operating cost on the market.

  • This model features the DIRECT CONTACT HEATING SYSTEM, the ultimate in performance and efficiency.
  • Thermoset Fiber reinforced resin well
  • Capillary tube thermostat control supplies power only when needed for maximum power efficiency
  • Low-water indicator light eliminates guesswork (Domestic models only)
  • Dome heating element uses up to 25% less energy and concentrates energy into the well
  • Element's non-stick surface prevents scale build-up for easy cleaning and longer operating life
  • Element is cast-in for longer service life and greater energy transfer
  • Must be used with water for maximum energy transfer
  • Standard black well and brushed exterior
  • Wide no-drip lip keeps countertop dry
  • Recommend using up to 4" (10.2 cm) deep food pans - standard and fractional sizes
  • Overall dimensions: 21 3/4"L. x 13 3/4"W. x 9"H. (55 x 33 x 23 cm)
  • Bottom exit power cord allows for universal positioning
  • 6' (183 cm) cord and plug

Product Specifications

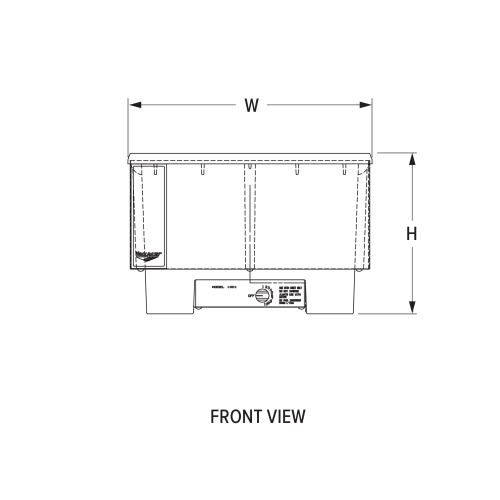

Engineering front view

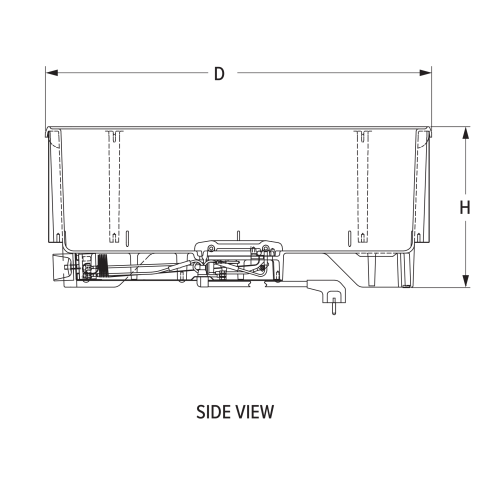

Engineering side view

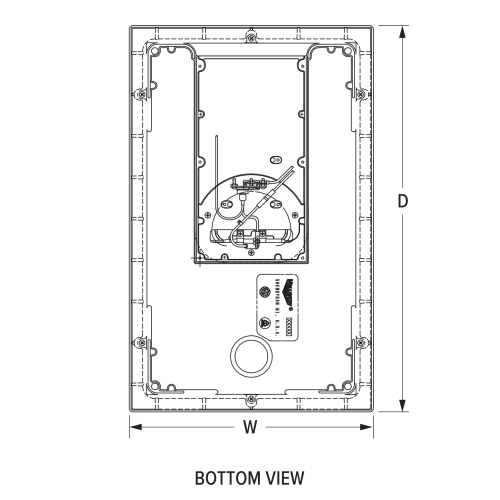

Engineering bottom view
Model Information
Name Value
Model 1001
Unit Dimensions
Name Value
Overall Dimensions (IN) 13.717 x 21.717 x 9.046
(W) Width (IN) 13.71
(D) Depth (IN) 21.71
(H) Height (IN) 9.04
(W) Width (CM) 34.8
(D) Depth (CM) 55.2
(H) Height (CM) 23
Electrical
Name Value
Amps 4.3
Cord Length (IN) 72
Cord Length (CM) 183
Plug Schuko
Voltage 230
Watts 1000

Product Downloads

CAD / REVIT

For the most updated list for Vollrath products and CAD drawings

Visit VOLLRATH.KCLCAD.COM
