72020

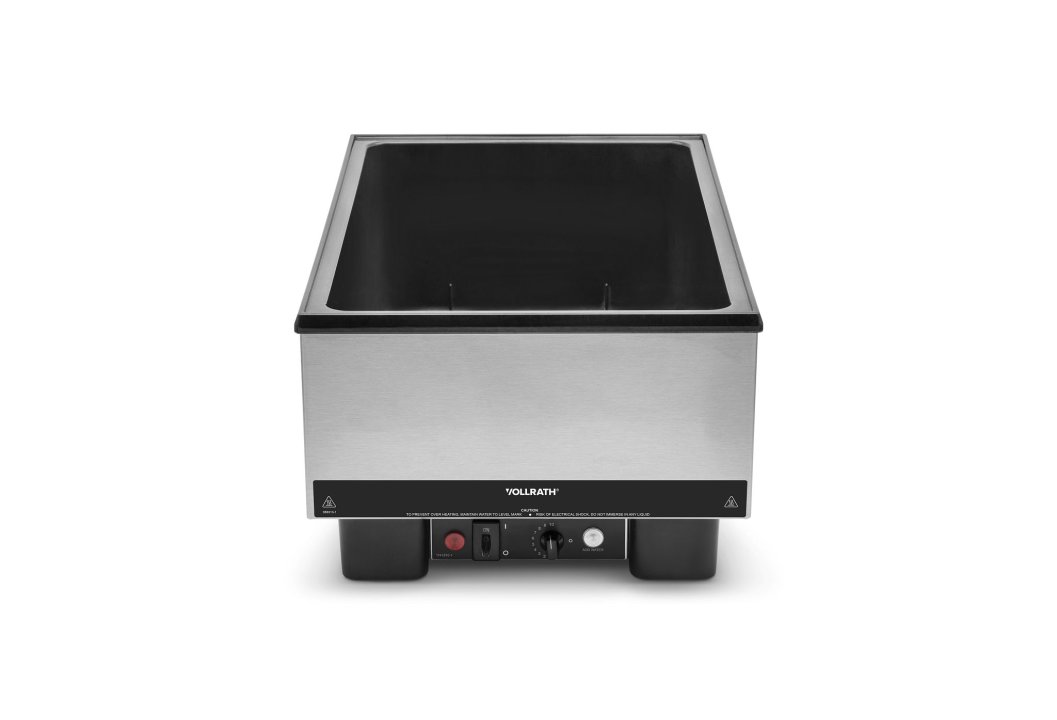

Full-size 120-volt Model 1220 Heat 'N Serve countertop rethermalizer
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The Vollrath® full-size Heat 'N Serve countertop rethermalizer would fit perfectly in your restaurant, buffet or concession stand. Thermostatic controls ensure accurate heating, while the lighted on/off switch and low-water indicator keep you informed. The wide feet improve stability and prevent movement on any countertop, while the brushed stainless steel exterior gives this unit a clean, sleek look.
- Efficiently warms a wide variety of food
- Must be used with water
- International Models — available for export only
- Designed to fit 4-inch-deep full- and fractional-sized pans
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | 1220 |
| UPC | 029419232277 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 13.779 x 21.779 x 9.05 |
| (W) Width (IN) | 13.77 |
| (WU) Usable Width (IN) | 12.04 |
| (D) Depth (IN) | 21.77 |
| (DU) Usable Depth (IN) | 19.992 |
| (H) Height (IN) | 9.05 |
| (W) Width (CM) | 35 |
| (WU) Usable Width (CM) | 30.6 |
| (D) Depth (CM) | 55.3 |
| (DU) Usable Depth (CM) | 50.8 |
| (H) Height (CM) | 23 |
| Size | Full-size |
Electrical
| Name | Value |
|---|---|
| Amps | 8.3 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1000 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Fiber-Reinforced Plastic |
| Construction Material 3 | Electrical Components |
| Material Type | Metals |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 11 |
| Case Height | 25 |
| Case Length | 16 |
| Case Lot Cube (ft.) | 3.09 |
| Case Lot Weight (lbs.) | 19.65 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CONTROL KNOB (BLACK) | 17012-1 | $6.30 |
| 3/8 DIA CLOSED CELL FEET | 17015-1 | $0.80 |
| 16 GA. POWER CORD 120V | 17085-1 | $21.30 |
| HI LIMIT ASSEMBLY | 44407-2 | $21.75 |
| HEATER CAST 1000W 120V | 44273-1 | $101.90 |
| STRAIN RELIEF BUSHING BLACK | 17024-3 | $1.50 |
| INDICATOR LAMP 125V RED DOME | 2515841-1 | $19.90 |
| POWER SWITCH SPST 125V NON-ILL | 2515840-1 | $14.60 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $4.70 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.20 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.10 |
| 12X20 BMC WL, BLCK, CLSED DRN | 17489-2 | $132.70 |
| REG THERMOSTAT FSTB 390MM 121C | 355162-1 | $34.20 |
| THERMOSTAT SHORT CAPIL. EGO | 17074-1 | $103.40 |
Product Downloads
Difference between a Warmer and Rethermalizer
Click below to view an article describing the difference between a warmer and a rethermalizer.
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
Customer Questions
Be the first to ask a question
