60-inch-wide 120-volt cubed-front countertop heated deli display case with rear access

HDCCB-60

60-inch-wide 120-volt cubed-front countertop heated deli display case with rear access

Classified by UL to NSF/ANSI 4

This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$6508.14 MSRP

$10,846.90 List Price

Where to Buy

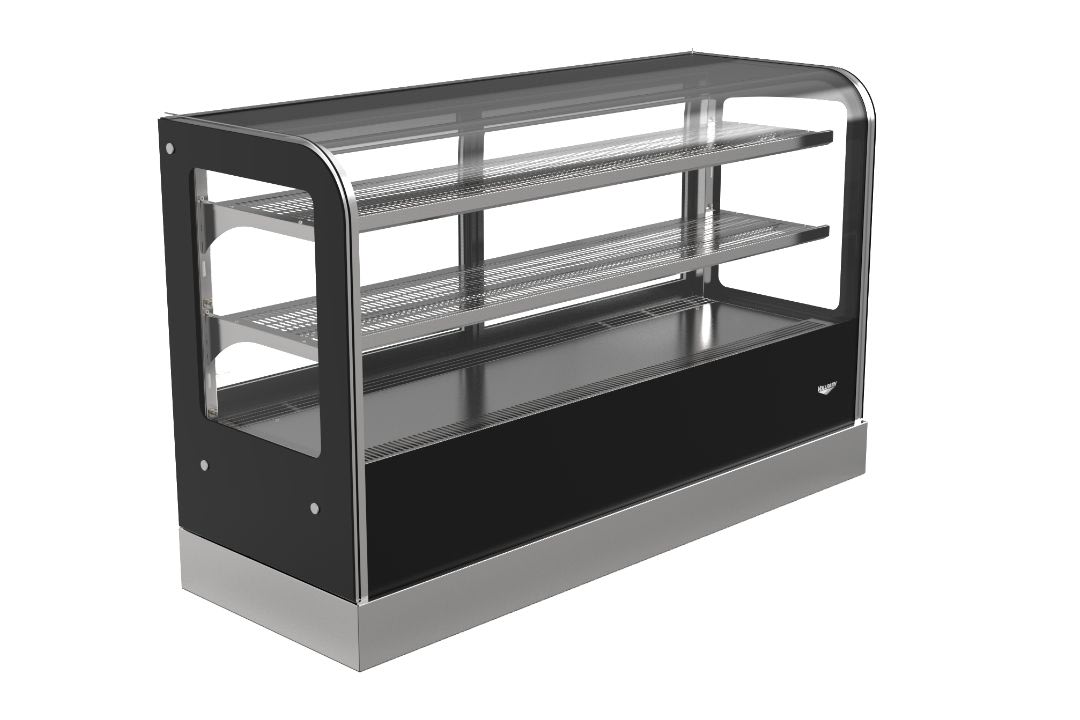

Our sophisticated cubed-glass Vollrath® heated deli display case has all the right angles for maximizing space, keeping prepared foods hot and access easy. Delivering 120 volts of power, this hot food essential provides a range of 104°F to 165°F for maximum product flexibility, safety and freshness. On the aesthetic side, interior LED lighting at the top and at each shelf makes products pop, and the cubed shape features two floating shelves, each adjustable to three positions for creative customization. Bringing up the rear are sliding doors that make it easy to serve, refill and clean.

60-inch-wide case maximizes product selection
Units are UL/NSF/ANSI 4 compliant which allows for Time-Temperature controlled (TCS) foods to be consumed safely by humans
Zero clearance on sides or between units and walls (Note: Top and operator side must remain open for proper operation and service)
Fans circulate air for accurate, even heating
NSF dial thermometer included with unit
Digital thermostat on control panel provides precise settings
Argon-filled and sealed double-pane low emissivity glass provides strength and energy efficiency
Rear sliding doors lift and remove for easy access
May be used as an ambient display for flexibility
6-foot cord allows you to display virtually anywhere
4-inch adjustable legs available for purchase separately

Product Specifications

Model Information

Name	Value
Model	HDC9360
UPC	029419601028

Unit Dimensions

Name	Value
(W) Width (IN)	59.9
(D) Depth (IN)	21.5
(H) Height (IN)	37
Top Shelf Depth (IN)	13.2
Bottom Shelf Depth (IN)	10.9
(W) Width (CM)	152
(D) Depth (CM)	55
(H) Height (CM)	94
Top Shelf Depth (CM)	34
Bottom Shelf Depth (CM)	28

Electrical

Name	Value
Amps	5.8
Hz	50-60
Plug	NEMA 5-15P
Voltage	120

Construction

Name	Value
Product Function	Heated food display cases

Case Lot Measurement

Name	Value
Case Lot Weight (lbs.)	492.5076

Product Parts

Name	Part #	Price
Heavy Duty 4" Leg	2351601-1	$24.10
RECT. POWER SWITCH - 120V	352773-1	$9.00
HOT HOLDING THERMOMETER	353200-1	$18.05
HDE HEATING ELEMENT ASM	HDC0454	$88.00
HDE TERMINAL BLOCK	RDC0040	$51.00
60" AIR OUTLET DUCT	RDC0042-60	$148.00
3-PIN LED LIGHT SOCKET	RDC0066	$45.00
60" LED 0.50M	RDC0084-60L	$192.00
60" LED 0.15M	RDC0084-60S	$158.00
60" HDE FAN PANEL ASM	RDC0086-60H	$340.00
60" REAR AIR GRILL	RDC0088-60	$152.00
60" BOTTOM DOOR TRACK	RDC0115-60	$110.00
60" HDE BACK VENT PANEL REAR	RDC0127-60H	$120.00
60" BACK SLDNG DOOR TRACK UP	RDC0128-60	$111.00
RDE HDE NTC SENSOR	RDC0141	$20.00
POWER FOR LED	RDC0145	$64.00
REAR DOOR SLIDER BTM WHEEL	RDC0155	$47.00
EVAPORATOR FAN	RDC0163	$80.00
60" CUBEED TOP SHELF ASM	RDC0335-60	$450.00
60" CUBED STAINLESS WRAP	RDC0355-60	$430.00
60" CUBED BOTTOM SHELF	RDC0356-60	$224.00
60" CUBED DOOR ASM	RDC0357-60	$630.00
CUBED DOOR GASKET	RDC0362	$59.00
RDCCB END GLASS ASM-L	RDC0413	$560.00
RDCCB END GLASS ASM-R	RDC0414	$560.00
POWERCORD W/STRAIN RELIEF	RDC0501	$53.00
DIGITAL CONTROLLER, HDC	RDC0503	$180.00
FRONT GLASS KIT, HDCCB-60	RDC0521	$4,100.00
GLASS HARDWARE	RDC0522	$31.00
SLOT PLUG, QTY. 4	RDC0523	$26.00
