CT4-208800

208-volt JT2 bread conveyor toaster

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$1831.02 MSRP

$3,051.70 List Price

This Vollrath® JT2 bread conveyor toaster is consistent, reliable and energy-efficient. Powerful quartz heating elements respond quickly, while forced convection ensures consistent toasting. The variable-speed control and variable top and bottom heat controls help you achieve desired results. Standby mode reduces energy use up to 75 percent during slow periods and quickly returns the unit to full power when needed. The standard 1½-inch product opening is great for bread slices or bun halves, and the 10½-inch-wide conveyor can fit up to 800 items per hour. The durable stainless and aluminized steel exterior is built to last, and heavy-duty legs allow leveling adjustments to provide maximum stability on any countertop.

Designed for bread slices and bun halves
Variable-speed control and variable top and bottom heat controls help you achieve desired results
Forced convection ensures even toasting
Quartz heating elements respond quickly and save energy
Durable stainless and aluminized steel is built to last
Maintenance-free drive system simplifies operation and servicing
10½-inch-wide conveyor fits up to 800 items per hour
1½-inch product opening easily fits products
Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.

Product Specifications

Model Information

Name	Value
Model	JT2
UPC	671080683348

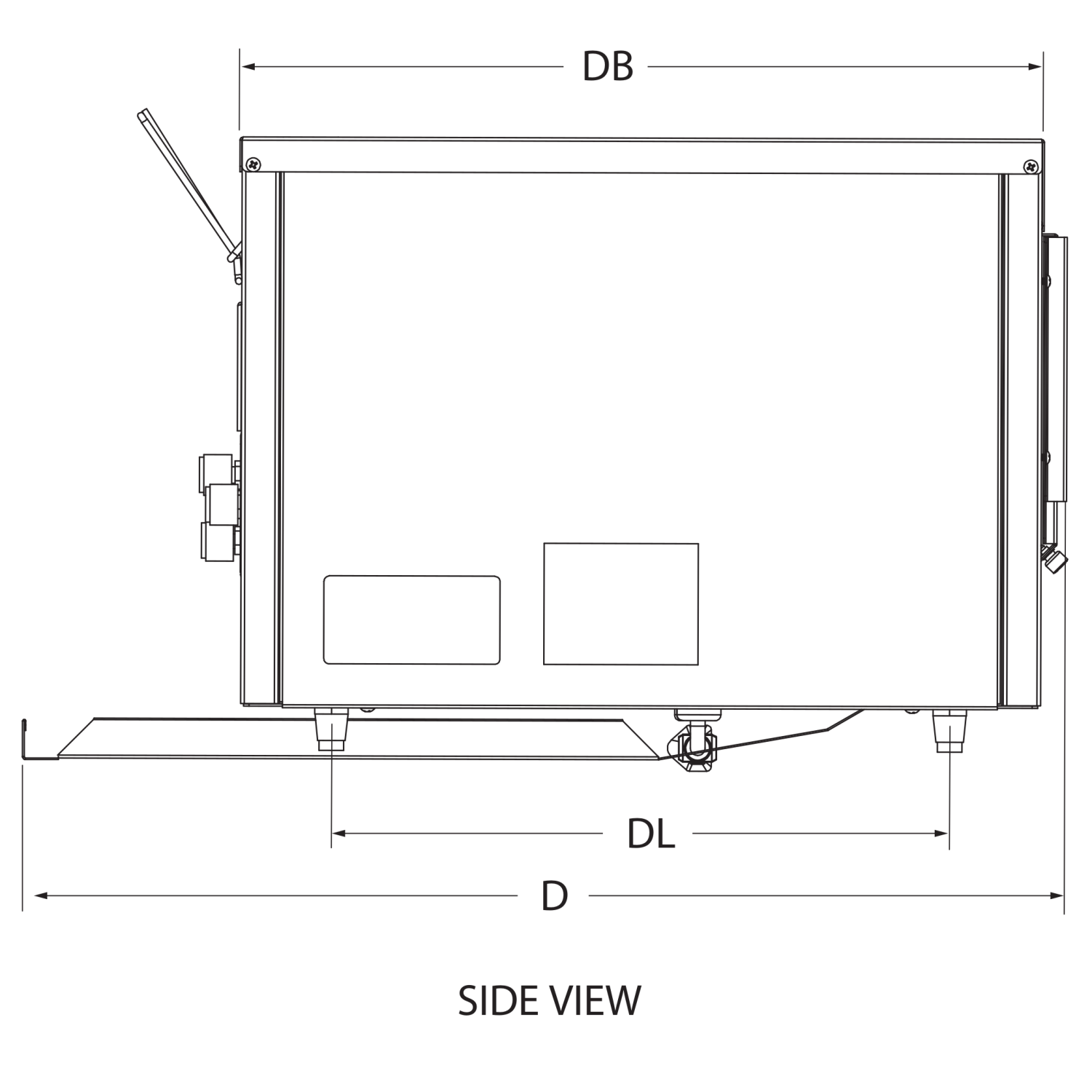

Unit Dimensions

Name	Value
Overall Dimensions (IN)	14.125 x 23.75 x 14
(W) Width (IN)	14.12
(D) Depth (IN)	23.75
(H) Height (IN)	14
(WL) Width between legs	12.187
(DL) Depth between legs	14.062
Product Opening Dimensions (IN)	1.5
(DB) Depth of Body (IN)	18.25
Conveyor Width (IN)	10.5
Overall Dimensions (CM)	35.9 x 60.3 x 35.6
(W) Width (CM)	35.9
(D) Depth (CM)	60.3
(H) Height (CM)	35.6
(WL) Width between legs (CM)	31
(DL) Depth between legs (CM)	35.7
Product Opening Dimensions (CM)	3.8
(DB) Depth of Body (CM)	46.4
Conveyor Width (CM)	26.7

Electrical

Name	Value
Amps	13.5
Cord Length (IN)	54
Cord Length (CM)	140
Hz	60
Plug	NEMA 6-20P
Voltage	208
Watts	2800

Construction

Name	Value
Countertop or Drop-In	Countertop
Food Type	Standard Breads

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	18.75
Case Height	17.75
Case Length	24
Case Lot Cube (ft.)	4.62
Case Lot Weight (lbs.)	51.75

Product Parts

Name	Part #	Price
CORD FAN HP-75.24-A	B401060	$14.50
SPROCKET 25B17-8MM	B401300	$32.70
SILVER PUSH-ON KNOB W/SET SCRW	B405019	$17.90
LABEL CONTROL CT4	B401401	$23.10
MOTOR DRIVE 208/240V RMS 344	B401201	$239.70
14 Ga Straight Strain Relief	B400320	$8.00
SILVER PUSH-ON KNOB	B405018	$9.80
SPRING .038" DIA 2.462" LENGTH	B400260	$10.40
LABEL RESET CT4	B401425	$8.50
SHAFT DRIVE 10.5"	B401340	$83.10
SWITCH FAN CERAMIC	B401107	$49.70
2PK HEAT ELEM11-3/8 104V 700W	59836	$167.10
CT4 SIDE PANEL	B300037	$54.60
CT4 TOAST CHUTE	B300012	$71.90
SHAFT IDLER 10.5"	B401341	$82.70
TERMINAL BLOCK 5 POSITION	B401033	$18.80
GUARD FAN	B401220	$10.40
SWITCH 240 V	B401102	$54.80
LOAD-UP RACK WIRE CT4	B400381	$35.60
BELT WIRE CONVEYOR 10.5"X30"	B204273	$444.60
CORD POWER 14/3 60" 6-20 PLUG	B401050	$68.60
CONTROL SPEED 500 OHM CT4	B200901	$83.10
BEARING FRONT SPRING LOADED	B401350	$18.80
RESET SWITCH	B401100	$49.70
CHAIN LADDER DRIVE 15"	B401388	$55.00
LEGS BLACK 1" 1/4-20	B400300	$19.00
BEARING ASSEMBLY 5/16	B201100	$29.10
SWITCH ROTARY POWER SAVER	B401103	$68.60
TERMINAL BLOCK 2 POSITION	B401034	$6.80
MOTOR FAN	B401211	$97.80
BEARING, TEFLON 5/16	B401355	$9.20
7/8 WIRE CLAMP	B400331	$1.20
CORD WARNING LABEL	B401404	$0.40
1 1/4" SNAP BUSHING	B400330	$0.70
5/8 SNAP BUSHING	B400332	$0.10
