CT4-2082000

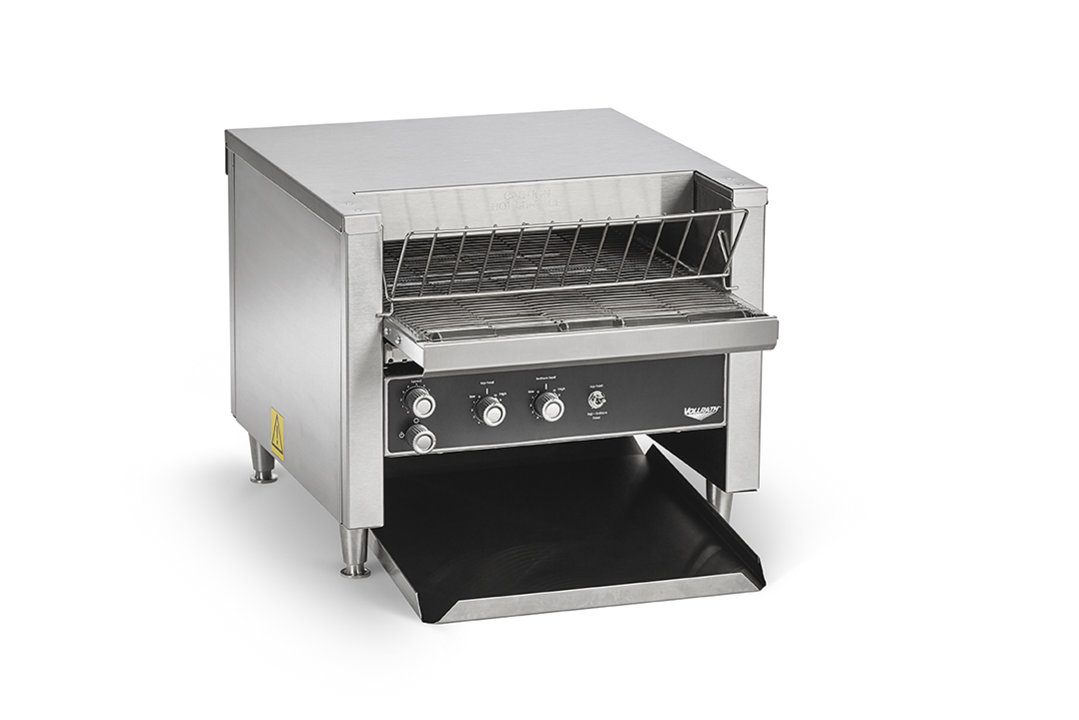

208-volt JT2000 bread conveyor toaster
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
This Vollrath® JT2000 bread conveyor toaster is consistent, reliable and energy-efficient. Powerful quartz heating elements respond quickly, while forced convection ensures consistent toasting. The variable-speed control and variable top and bottom heat controls help you achieve desired results. Standby mode reduces energy use up to 75 percent during slow periods and quickly returns the unit to full power when needed. The standard 1¾-inch product opening is great for bread slices or bun halves, and the 14½-inch-wide conveyor can fit up to 2,000 items per hour. The durable stainless and aluminized steel exterior is built to last, and heavy-duty legs allow leveling adjustments to provide maximum stability on any countertop.
- Designed for bread slices and bun halves
- Variable-speed control, variable top and bottom heat controls, and one- or two-sided toasting switch help you achieve desired results
- Forced convection ensures even toasting
- Quartz heating elements respond quickly and save energy
- Durable stainless and aluminized steel is built to last
- Maintenance-free drive system simplifies operation and servicing
- 14½-inch-wide conveyor fits up to 2,000 items per hour
- 1¾-inch product opening easily fits products
- Energy efficient, fast reacting, quartz heaters
- Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JT2000 |
| UPC | 671080705712 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 14.5 x 23.625 x 13.125 |
| (W) Width (IN) | 18.06 |
| (D) Depth (IN) | 23.62 |
| (H) Height (IN) | 15.43 |
| (WL) Width between legs | 16.187 |
| (DL) Depth between legs | 14 |
| Product Opening Dimensions (IN) | 1.75 |
| (DB) Depth of Body (IN) | 18.25 |
| Conveyor Width (IN) | 14.5 |
| Overall Dimensions (CM) | 36.8 x 60 x 33.3 |
| (W) Width (CM) | 45.9 |
| (D) Depth (CM) | 60 |
| (H) Height (CM) | 39.3 |
| (WL) Width between legs (CM) | 41.2 |
| (DL) Depth between legs (CM) | 35.6 |
| Product Opening Dimensions (CM) | 4.4 |
| (DB) Depth of Body (CM) | 46.4 |
| Conveyor Width (CM) | 36.8 |
Electrical
| Name | Value |
|---|---|
| Amps | 23.1 |
| Cord Length (IN) | 54 |
| Cord Length (CM) | 140 |
| Hz | 60 |
| Plug | NEMA 6-30P |
| Voltage | 208 |
| Watts | 4800 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Food Type | Standard Breads, Buns, Bagels |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 24 |
| Case Height | 19 |
| Case Length | 19 |
| Case Lot Cube (ft.) | 5.01 |
| Case Lot Weight (lbs.) | 75 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $14.50 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $17.90 |
| MOTOR DRIVE 208/240V RMS 344 | B401201 | $239.70 |
| LEG 2 1/2" METAL PLATED | B400303 | $35.00 |
| SILVER PUSH-ON KNOB | B405018 | $9.80 |
| LABEL RESET CT4 | B401425 | $8.50 |
| CT4-2000 NOSE GUARD | B300807 | $52.10 |
| SHAFT IDLER | B401349 | $72.50 |
| SWITCH FAN CERAMIC | B401107 | $49.70 |
| CORD POWER 12/3 60" 6-30P | B401051 | $69.70 |
| CT4 SIDE PANEL | B300037 | $54.60 |
| 32-TOOTH SPROCKET | B401302 | $100.60 |
| TERMINAL BLOCK 5 POSITION | B401033 | $18.80 |
| GUARD FAN | B401220 | $10.40 |
| SWITCH 240 V | B401102 | $54.80 |
| FRONT BEARING SPRING-LOADED | B401352 | $28.90 |
| CT4 18" TOAST CHUTE | B300013 | $105.80 |
| SWITCH TOGGLE ON/ON 15A | B401116 | $83.90 |
| CT4 18" LOAD-UP WIRE RACK | B400382 | $35.90 |
| WIRE CONVERYOR BELT 14"X40" | B204279 | $214.40 |
| SHAFT DRIVE 14.5" | B401342 | $62.60 |
| 11-TOOTH SPROCKET | B401301 | $46.40 |
| SPRING .038" DIA 1.500" LENGTH | B400261 | $3.70 |
| CT4-2000 CONTROL LABEL | B401415 | $56.00 |
| CONTROL SPEED 500 OHM CT4 | B200901 | $83.10 |
| 17.5" DRIVE CHAIN | B401381 | $34.20 |
| RESET SWITCH | B401100 | $49.70 |
| 2PK HEAT ELEM 15-3/8 69.3 533W | 59907 | $211.20 |
| BEARING ASSEMBLY 5/16 | B201100 | $29.10 |
| SWITCH ROTARY POWER SAVER | B401103 | $68.60 |
| TERMINAL BLOCK 2 POSITION | B401034 | $6.80 |
| MOTOR FAN | B401211 | $97.80 |
| STRGHT 12 GA STRAIN RLF BSHNG | B400321 | $0.80 |
| BEARING, TEFLON 5/16 | B401355 | $9.20 |
| 7/8 WIRE CLAMP | B400331 | $1.20 |
| CORD WARNING LABEL | B401404 | $0.40 |
| CT4H 18" HEAT SHUTTER | B300059 | $19.50 |
| CT4-2000 CRUMB TRAY ASSEMBLY | B205105 | $120.90 |
| 1 1/4" SNAP BUSHING | B400330 | $0.70 |
| 5/8 SNAP BUSHING | B400332 | $0.10 |
