VCT4-240
240-volt vertical contact toaster
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
Contains PFAS (Per- and polyfluoroalkyl substances).
$3499.86
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$5,833.10
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

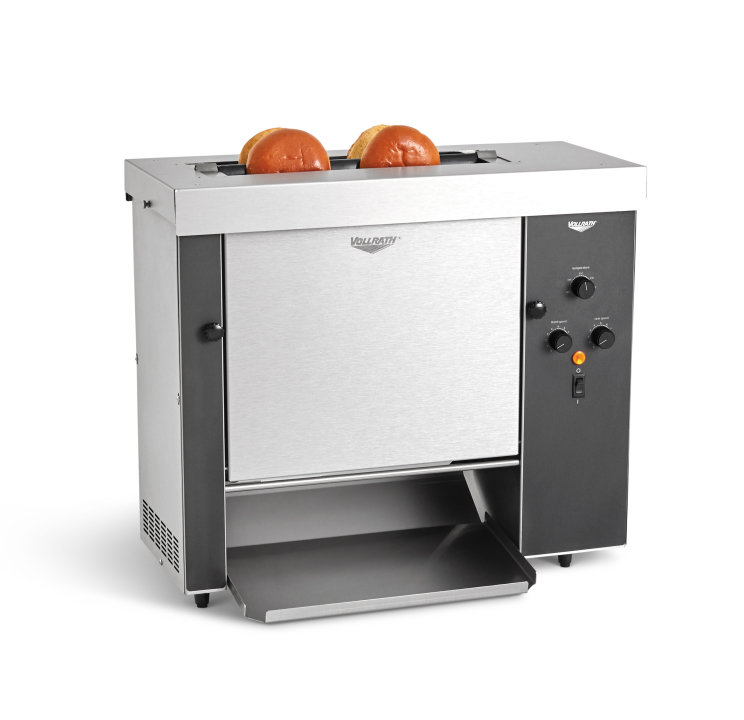

Toast up to 1400 bun slices per hour with the vertical contact toaster by Vollrath. This toaster features dual-sided aluminum platen that ensures perfectly crisp results and heavy-duty metal-sheathed heating elements with thermostatic controls for impressive precision. Two openings offer maximum loading capacity, while independent variable-speed controls provide versatility. The vertical design saves precious counter space, and the stainless steel construction is sleek, durable and easy to clean.
- Designed to save space on the flattop in high-volume applications like busy restaurants
- Dual-sided aluminum platen toasts buns smoothly to help them support juicy burgers or sauces
- Heavy-duty metal-sheathed heating elements are thermostatically controlled and promise consistent, accurate heat
- Auxiliary heating elements warm crown and heel for a more consistent toast
- Two openings offer maximum loading capacity
- Independent variable-speed controls provide versatility for each side
- Vertical design saves precious counter space
- Stainless steel construction is impressively durable
- Release sheet is easy to clean and replace
- NSF-certified
- ½- to 1-inch product opening can be adjusted with spring-loaded pressure plate to accommodate a variety of bun sizes
- Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.
- 240V
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | CBT15 |
| UPC | 671080720555 |

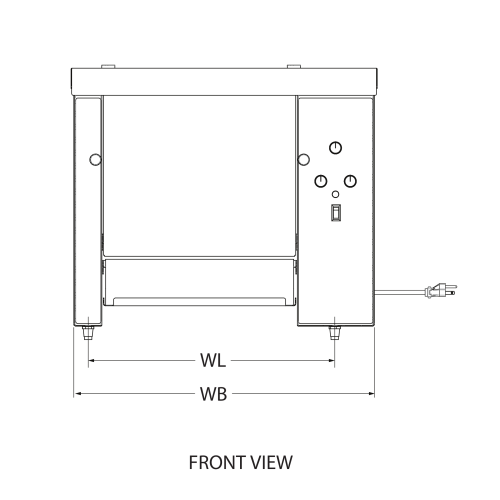

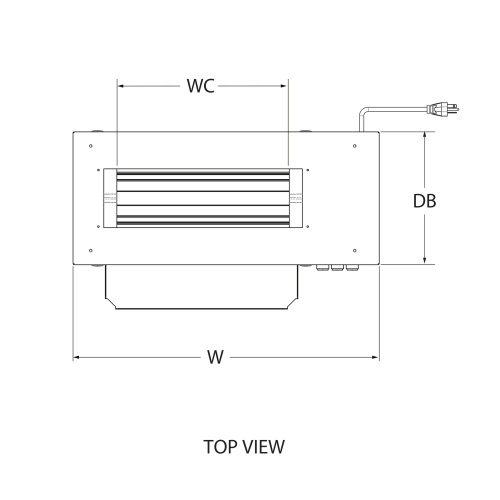

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 23 x 13 x 20.75 |
| (W) Width (IN) | 23.37 |
| (D) Depth (IN) | 13 |
| (H) Height (IN) | 20.75 |
| (WL) Width between legs | 18.875 |
| (DL) Depth between legs | 7.25 |
| Product Opening Dimensions (IN) | 0.5 - 1 |
| (WC) Cooking Chamber Width (IN) | 13.187 |
| (WB) Width of Body (IN) | 23 |
| (DB) Depth of Body (IN) | 10.187 |
| Overall Dimensions (CM) | 58.4 x 33 x 52.7 |
| (W) Width (CM) | 59.4 |
| (D) Depth (CM) | 33 |
| (H) Height (CM) | 52.7 |
| (WL) Width between legs (CM) | 48 |
| (DL) Depth between legs (CM) | 18.4 |
| Product Opening Dimensions (CM) | 1.3 - 2.5 |
| (WC) Cooking Chamber Width (CM) | 33.5 |
| (WB) Width of Body (CM) | 58.4 |
| (DB) Depth of Body (CM) | 26 |
Electrical
| Name | Value |
|---|---|
| Amps | 13.3 |
| Cord Length (IN) | 54 |
| Cord Length (CM) | 140 |
| Hz | 60 |
| Plug | NEMA 6-20P |
| Voltage | 240 |
| Watts | 3200 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Food Type | Buns |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 24.5 |
| Case Height | 14 |
| Case Length | 28.5 |
| Case Lot Weight (lbs.) | 75 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $14.50 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $17.90 |
| 30 AMP CONTROL | B401121 | $503.30 |
| MOTOR DRIVE 208/240V RMS 344 | B401201 | $239.70 |
| SPRING EXTENSION STEEL | B400266 | $4.90 |
| CORD POWER 12/3 6-20P | B401053 | $65.00 |
| LABEL CONTACT TOASTER | B401438 | $295.80 |
| KNOB STUD PHENOLIC | B401188 | $6.70 |
| BEARING SPRING LOADED | B401353 | $60.90 |
| SWITCH FAN CERAMIC | B401107 | $49.70 |
| CHAIN LADDER 14" | B401499 | $19.00 |
| POT ASSEMBLY | B401122 | $56.40 |
| 68C RESET SWITCH | B405028 | $36.90 |
| SWITCH MICRO SNAP ACTION | B401129 | $32.70 |
| HEAT PLANTIN PRECISION | B401439 | $1,169.80 |
| 32-TOOTH SPROCKET | B401302 | $100.60 |
| TERMINAL BLOCK 5 POSITION | B401033 | $18.80 |
| GUARD FAN | B401220 | $10.40 |
| MOTOR DRIVE 208/240V REVERSED | B401203 | $228.90 |
| SPRING .038" DIA 1.500" LENGTH | B400261 | $3.70 |
| CONTROL SPEED 500 OHM CT4 | B200901 | $83.10 |
| SPROCKET 25B17-3/8 | B401303 | $45.30 |
| LEGS BLACK 1" 1/4-20 | B400300 | $19.00 |
| BEARING ASSEMBLY 3/8" | B201101 | $24.80 |
| PILOT LIGHT - AMBER 250V | 23066-3 | $16.10 |
| THERMISTOR PROBE | B401120 | $167.70 |
| METAL ELEMENT 240V 675W | B403039 | $382.80 |
| TERMINAL BLOCK 2 POSITION | B401034 | $6.80 |
| SHAFT DRIVE | B401379 | $212.40 |
| SHAFT ILDER | B401380 | $206.60 |
| MOTOR FAN | B401211 | $97.80 |
| METAL ELEMENT 240V 1900W | B403038 | $445.30 |
| STRGHT 12 GA STRAIN RLF BSHNG | B400321 | $0.80 |
| WIRE CONVEYOR BELT 14" X 26.5" | B205144 | $131.80 |
| ROD, VCT4 CONTACT TOASTER | B401700 | $20.20 |
| BEARING, TEFLON 3/8 REV C | B401357 | $10.20 |
| 7/8 WIRE CLAMP | B400331 | $1.20 |
| VCT4 BEARING HOUSING | B300651 | $25.60 |
| CORD WARNING LABEL | B401404 | $0.40 |
| VCT4 TOP ASSM | B205140 | $141.20 |
| VCT4 SIDE PANEL | B300636 | $91.00 |
| VCT LEFT SIDE LABEL | B405031 | $39.70 |
| VCT4 TOP COVER | B300634 | $106.50 |
