PO4-22014R-L

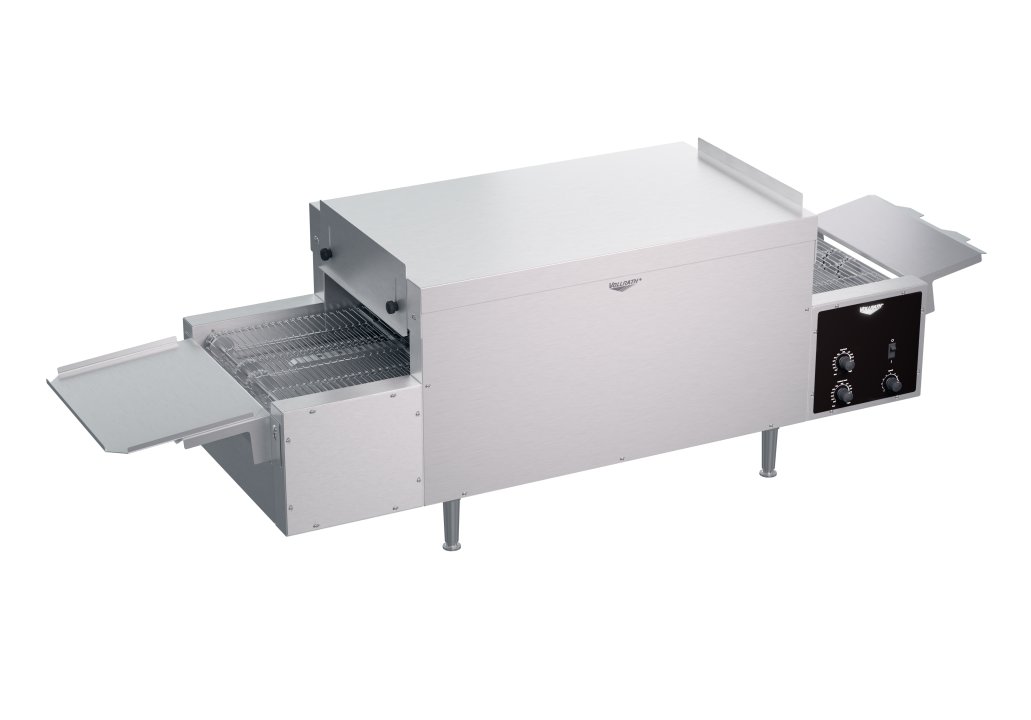

14-inch 220-volt conveyor pizza oven with right-to-left operation
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The 14-inch conveyor pizza oven by Vollrath bakes crusts, melts cheese and toasts toppings to perfection, making it ideal for par-baked pizzas and flatbreads. This 14-inch-wide conveyor fits a variety of foods and moves from right to left. The adjustable 1 ½- to 4-inch product opening accommodates foods of varying heights, while variable-speed controls allow quick adjustments during baking. The energy-efficient quartz heating elements are fast and powerful, and individual top and bottom thermostatic controls ensure desired results. The ventless design offers flexibility in placement and lowers installation costs. Loading and receiving trays make it easy to keep products moving in and out, speeding up your service. A maintenance-free drive system simplifies operation and servicing, and the durable stainless and aluminized steel exterior is built to last.
- Designed for medium-volume operations that regularly produce fresh or par-baked pizzas or flatbreads, not pizzerias
- Frozen pizzas straight from the freezer cook evenly with crispy crusts, saving time while delivering delicious results
- Quartz heating elements respond quickly and save energy
- UL-tested and verified for ventless operation – meets or surpasses EPA 202. (Local codes may apply. Contact your local authority having jurisdiction for more information.)
- Wide conveyor fits a variety of products and moves from right to left
- NSF-certified
- Adjustable 1 ½- to 4-inch product opening
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JPO14 |
| UPC | 671080718163 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 68 x 18.875 x 21 |
| (W) Width (IN) | 68 |
| (D) Depth (IN) | 18.87 |
| (H) Height (IN) | 21 |
| (WL) Width between legs | 25.5 |
| (DL) Depth between legs | 16.5 |
| Product Opening Dimensions (IN) | 1.5 - 4 |
| Conveyor Width (IN) | 14 |
| Overall Dimensions (CM) | 172.7 x 47.5 x 53.3 |
| (W) Width (CM) | 172.7 |
| (D) Depth (CM) | 47.5 |
| (H) Height (CM) | 53.3 |
| (WL) Width between legs (CM) | 64.8 |
| (DL) Depth between legs (CM) | 41.9 |
| Product Opening Dimensions (CM) | 3.8 - 10.2 |
| Conveyor Width (CM) | 35.6 |
| Size | 14 |
Electrical
| Name | Value |
|---|---|
| Amps | 25.5 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 180 |
| Hz | 60 |
| Plug | NEMA 6-50P |
| Voltage | 220 |
| Watts | 5600 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 30 |
| Case Height | 26 |
| Case Length | 58 |
| Case Lot Cube (ft.) | 26.18 |
| Case Lot Weight (lbs.) | 215 |
Product Accessories
| Name | Item # |
|---|---|
| JSO/JPO14 Dual Oven Stacking Spacer | 351036 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $13.80 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $17.00 |
| COLLAR SHAFT .375 X .750 | B401347 | $7.28 |
| 30 AMP CONTROL | B401121 | $479.30 |
| POT ASSEMBLY | B401122 | $53.70 |
| KNOB STUD PHENOLIC | B401188 | $6.40 |
| SPROCKET 25B24 X 3/8 | B401304 | $79.10 |
| BEARING SPRING LOADED | B401353 | $58.60 |
| SPRING | B400263 | $10.50 |
| CLASS B 240V FAN MOTOR | B405011 | $103.30 |
| 50A 10/3 72" POWER CORD | B401088 | $191.00 |
| TERMINAL BLOCK 5 POSITION | B401033 | $17.90 |
| 2PK HEAT ELEM 15-3/8 220V 600W | 59887 | $158.30 |
| GUARD FAN | B401220 | $9.90 |
| CHAIN LADDER 29.75" LONG | B401460 | $34.80 |
| SWITCH FAN CERAMIC | B401107 | $47.30 |
| 14" LOAD TRAY | B305772 | $63.75 |
| 68C RESET SWITCH | B405028 | $35.10 |
| SHAFT BELT SUPPORT - 15.75" | B401374 | $81.54 |
| HEYCO 1" SNAP BUSHING 2140 | B400334 | $0.73 |
| MOTOR DRIVE 208/240V RMS 344 | B401201 | $228.30 |
| PO4 14" UNLOAD TRAY ASSM | B205104 | $199.16 |
| PO4 14" WIRE BELT | B205108 | $389.20 |
| 5A CIRCUIT BREAKER | B405014 | $33.30 |
| UNLOAD TRAY UPPER | B305769 | $45.66 |
| BEARING ASSEMBLY 3/8" | B201101 | $23.80 |
| TERMINAL BLOCK 2 POSITION | B401034 | $6.50 |
| 14" UNLOAD TRAY - LOWER | B305771 | $61.78 |
| SHAFT DRIVE | B401379 | $204.26 |
| CONTROL SPEED 1000 OHM | B200918 | $101.90 |
| SHAFT ILDER | B401380 | $198.64 |
| LEG METAL PLATED 4" ADJ | B400301 | $41.20 |
| PO4 14" CRUMB TRAY ASSM | B205103 | $139.46 |
| 11-TOOTH SPROCKET | B401301 | $44.20 |
| BEARING, TEFLON 3/8 REV C | B401357 | $9.78 |
| 7/8 WIRE CLAMP | B400331 | $1.14 |
| CONTROL SIDE PANEL ANALOG | B305835 | $26.62 |
| PO4 CONTROL OVERLAY | B405020 | $67.39 |
| BLANK POWER SIDE PANEL | B305856 | $76.44 |
| THERMISTOR PROBE | B401120 | $159.70 |
| TERMINAL STRIP, 3 CIRC, 15MM | B401014 | $13.52 |
| 1 AMP MAX LABEL | B405054 | $9.57 |
| LONG BLANK SIDE PANEL | B305797 | $113.26 |
| SMALL BLANK SIDE PANEL | B305796 | $23.50 |
