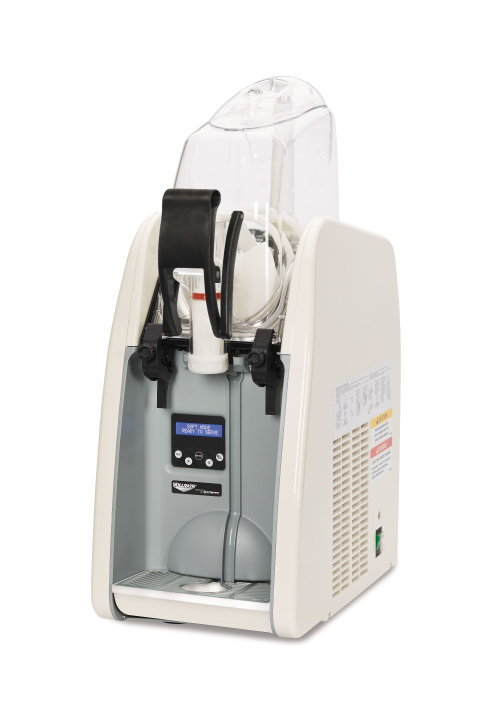

Mini Soft Serve Countertop Freezer

This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$2143.20 MSRP

$3,572.00 List Price

Designed for small restaurants, delis, bakeries, food trucks convenience stores and more, the Vollrath mini soft serve countertop freezer promises impressive efficiency and simple operation. This versatile machine offers an exceptional user experience and perfectly monitors temperature for consistently frozen servings and beautiful results. The sleek design ensures simple maintenance and quick cleaning, making this countertop freezer a stress-free addition to your operation.

Freezes and serves commercial soft serve or non-dairy mixes, including: ice milk, ice cream, yogurt, and frozen dietary desserts
Total Cold refrigeration system keeps product at constant temperature
Seal-less drive shaft design eliminates preventive maintenance and mandatory seal replacements
Vertical drive shaft rotates from the top, above the mix, which prevents mix from entering the shaft - easy clean-up and low maintenance
Horizontal auger and vertical drive shaft design delivers a consistent, quality and creamy product for every serving
Horizontal auger continually draws product across and scrapes the freezer plate to eliminate product build-up and waste
Automatic or manual Night Mode
Lockable keypad
Servings counter
Small footprint, lightweight machine is portable
Works with dry or liquid soft serve mixes
Easy disassembly for cleaning
5 ft. (1.5 m) cord with plug
Please note, this item is now discontinued

Product Specifications

Model Information

Name	Value
UPC	671080349022

Unit Dimensions

Name	Value
Overall Dimensions (IN)	11 x 19 x 28
(W) Width (IN)	11
(D) Depth (IN)	19
(H) Height (IN)	28

Volume

Name	Value
Bowl Capacity (GAL)	1
Bowl Capacity (L)	3.8

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	14.75
Case Height	31.75
Case Length	21.75
Case Lot Cube (ft.)	5.5255
Case Lot Weight (lbs.)	66

Product Parts

Name	Part #	Price
BACK GREY PANEL QK	XCBB0027	$196.30
RELAY NEK2125GK	XCBB0043	$53.92
KEY FOR TRANSPARENT COVER	XCBB0047	$28.40
QUICKREAM COMPLETE DRAIN	XCBB0007	$168.80
RIGHT LEVER CONNECTION	XCBB0004	$13.80
GREY PLASTIC DRIP TRAY	XCBB0033	$48.20
QUICKREAM POLYCARBONATE HANDLE	XCBB0009	$44.00
VERTICAL AUGER GEAR	XCBB0049	$78.20
QUICKREAM VERTICAL AUGER	XCBB0048	$104.20
HORIZONTAL AUGER GEAR	XCBB0050	$78.20
QUICKREAM TRANSMISSION SHAFT	XCBB0017	$150.30
QUICKREAM HORIZONTAL AUGER	XCBB0018	$284.30
LEFT HANDLE BRIDGE	XCBB0008	$13.80
STEEL SHAFT WITH STEEL NUT	XCBB0015	$57.40
SILICON TAP RELIEF GASKET	XCBB0006	$74.00
TRANSPARENT COVER WITH LOCK	XCBB0012	$90.90
PISTON SILICON GASKET	XCBB0010	$10.40
QUICKREAM TRANSPARENT TANK	XCBB0013	$279.70
BLACK HINGE HOOK	XCBB0025	$16.20
QUICKREAM ELECTRONIC BOARD	XCBB0035	$943.90
SWITCHING POWER SUPPLY KIT	XCBB0201	$907.80
SPLINED KNOB	XCBB0026	$16.80
ELECTRONIC THERMOSTAT PROBE	XCBB0037	$151.20
FOOD RED SYLICON SLEEVE	XCBB0001	$2.70
CONNECTIONS JUNCTION AXIS	XCBB0005	$20.40
STAR SUPPLY VALVE	XCBB0011	$13.70
QK VERTICAL BLADE FIXING RING	XCBB0014	$29.90
QUICKREAM SLEEVE	XCBB0002	$53.92
