FC-4DH-02120-T

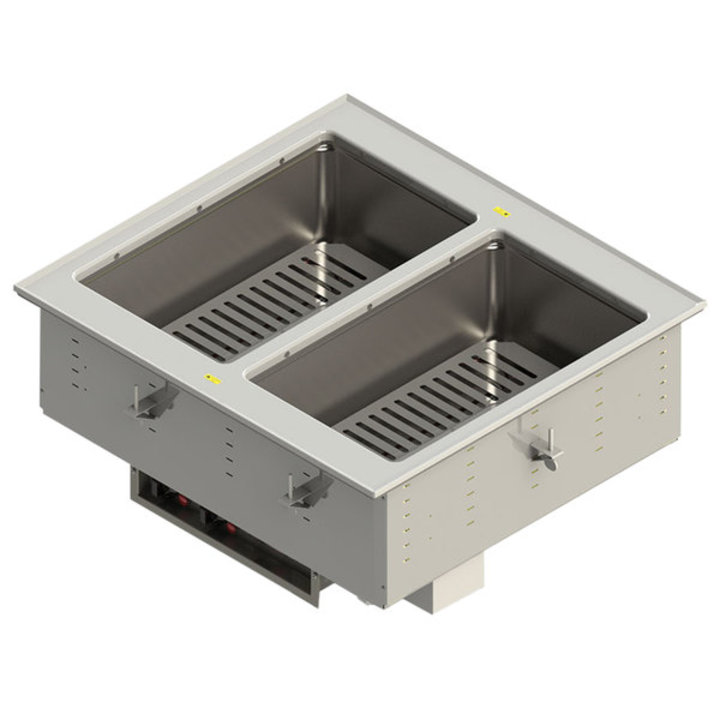

Two-well 120-volt modular drop-in dry hot well with thermostatic controls

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$2250.12 MSRP

$3,750.20 List Price

Where to Buy

Featuring convenient dry heat, the two-well modular dry hot well by Vollrath is reliable, easy to use and maintains serving temperatures perfectly. Made of 300-Series stainless steel and insulated with high-density glass fiber, this hot well is equally durable and high-performing. The open-element, energy-efficient design uses a smaller circuit, reduces installation costs and provides comparable performance to higher-wattage elements. Thermostatic controls ensure accurate heating and are detachable for remote mounting. This hot well does not require water for operation, making it a popular, reliable choice.

300-Series stainless steel is durable and long-lasting
Open well, dry design does not require water to operate
High-density glass fiber insulation traps heat and maximizes energy efficiency
Reliable thermostatic controls ensure accurate heating
4-foot tethered control panel connection allows flexible mounting
Energy-efficient heating element uses smaller circuit and reduces installation costs while providing comparable performance to higher-wattage elements
Cord and plug configuration eliminates the need for hardwiring
NSF-certified
Covered by 1-year limited warranty — see warranty page for details
Zero-clearance installation means no trim rings required for non-metallic countertops
Zero-clearance installation means no trim rings required for non-metallic countertops
6 ⅜-inch depth accommodates 6-inch-deep pans
6-foot power cord, 4-foot control cord

Product Specifications

Model Information

Name	Value
Model	Standard Drip Free Flange
UPC	671080670195

Unit Dimensions

Name	Value
(W) Width (IN)	28.25
(D) Depth (IN)	26
(W) Width (CM)	71.8
(D) Depth (CM)	66

Electrical

Name	Value
Amps	16.7
Voltage	120
Watts	1000

Construction

Name	Value
Control Type	Thermostatic Controls
Drain Type	No Drain
Fill Type	None

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	30
Case Height	33.25
Case Length	34

Product Parts

Name	Part #	Price
16 GA. POWER CORD 120V	17085-1	$21.30
HIGH LIMIT THERMOSTAT 125C	25438-1	$23.70
THUMBSCREW 1/4-20 X 2"	23035-3	$4.90
DROP-IN MOUNTING CLIP	44179-1	$3.10
KNOB CONTROL	23423-1	$8.98
PILOT LIGHT - RED 125V	23065-3	$14.76
NUT 10-32 HEX STAINLESS STEEL	21547-1	$0.90
WASHER #10 .500 OD .219 ID	21544-1	$0.74
THERMOSTAT 96" CAPILARY	17816-1	$116.90
THRMSTT 144" CAPILARY 96/BX	17795-1	$136.10
STRAIN RELIEF - FOR 3/8 CORD	26543-3	$2.00
