72090

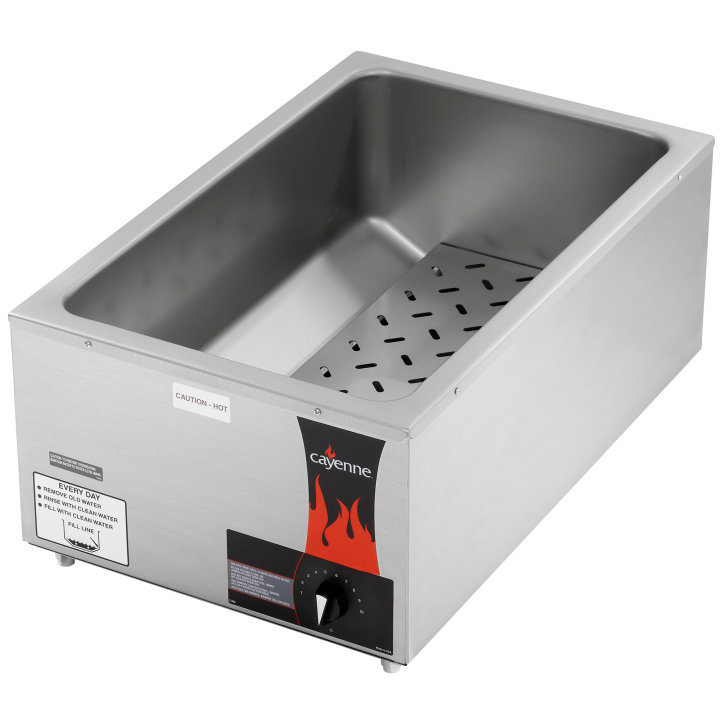

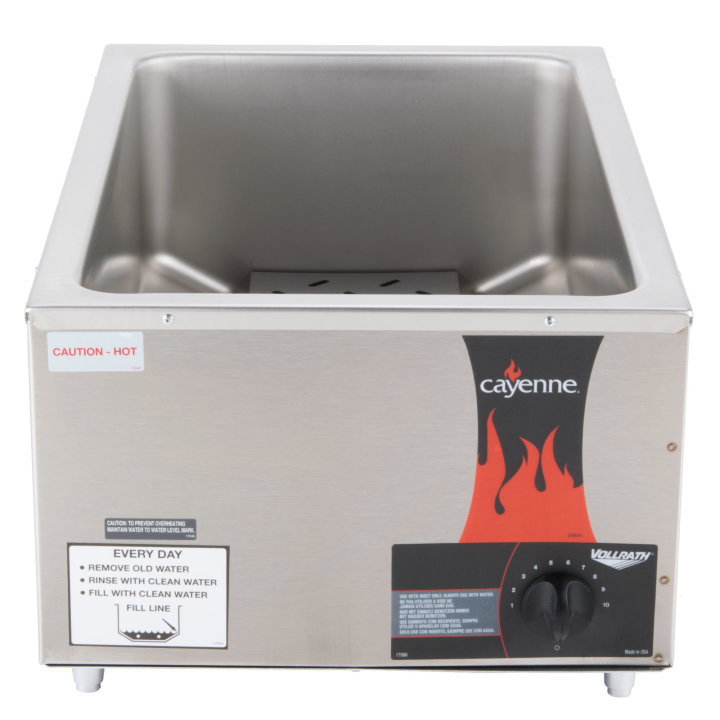

Full-size 120-volt Cayenne® Nitro™ rethermalizer
Safely heat a variety of foods with the Vollrath® Cayenne Nitro rethermalizer. This powerful rethermalizer is designed to take food from a chilled state to a safe heated temperature of 150°F or higher in less than 90 minutes. The energy-efficient direct-contact heating element quickly heats your food by concentrating energy into the well, and the heavy-duty bulb and capillary thermostat have overheat protection to help extend the life of your unit. The large well accommodates full or fractional size food pans up to 4 inches deep, and the extra-large water reservoir reduces the number of refills required for smooth operation.
- Safely and quickly rethermalizes soup, stew, chili, sauces and more
- 300-Series stainless steel well is built for years of service
- NSF 4-listed when using moist heat
- High-efficiency 1440-watt element operates on a 15-amp circuit
- Adjustable 1-inch feet maintain stability on any countertop
- Fits full and fractional size 4-inch deep food pans
- 6-foot cord and plug
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | PC-21 |
| UPC | 029419154722 |

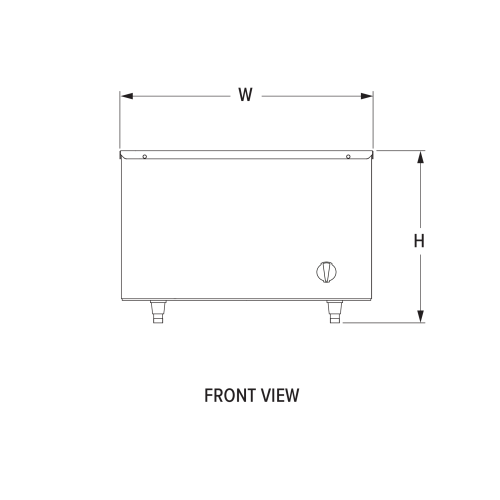

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 14.06 |
| (D2) Secondary Depth (IN) | 21.968 |
| (H) Height (IN) | 9.56 |
| Usable Height (IN) | 6 |
| (W) Width (CM) | 35.7 |
| (D2) Secondary Depth (CM) | 55.8 |
| (H) Height (CM) | 24.3 |
| Usable Height (CM) | 15.2 |
| Size | Full |
Electrical
| Name | Value |
|---|---|
| Amps | 12 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1440 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 16 |
| Case Height | 10.25 |
| Case Length | 25 |
| Case Lot Cube (ft.) | 2.37 |
| Case Lot Weight (lbs.) | 17.2 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| TIMER/CONTROL KNOB (F/17170) | 17388-1 | $6.70 |
| STRAIN RELIEF BUSHING BLACK | 17024-3 | $1.50 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $4.70 |
| ELEMENT COVER PC-21 | 44627-2 | $63.71 |
| LEG PC-21 | 17084-1 | $6.50 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| 16 GA. POWER CORD 120V | 17085-1 | $21.30 |
| THERMOSTAT SHORT CAPIL. EGO | 17074-1 | $103.40 |
| CONNECTOR 2 WIRE WAGO 221-412 | 4350810-1 | $1.40 |
| THERMOSTAT DISC REGULAT. 125C | 25166-1 | $30.30 |
| O-RING TRADE SIZE #112 | 17070-3 | $2.10 |
| REG THERMOSTAT FSTB 390MM 121C | 355162-1 | $34.20 |
| 002-910-HTEL-RM 120V MDL 1440 | 17069-1 | $120.30 |
Product Downloads
Difference between a Warmer and Rethermalizer
Click below to view an article describing the difference between a warmer and a rethermalizer.
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
