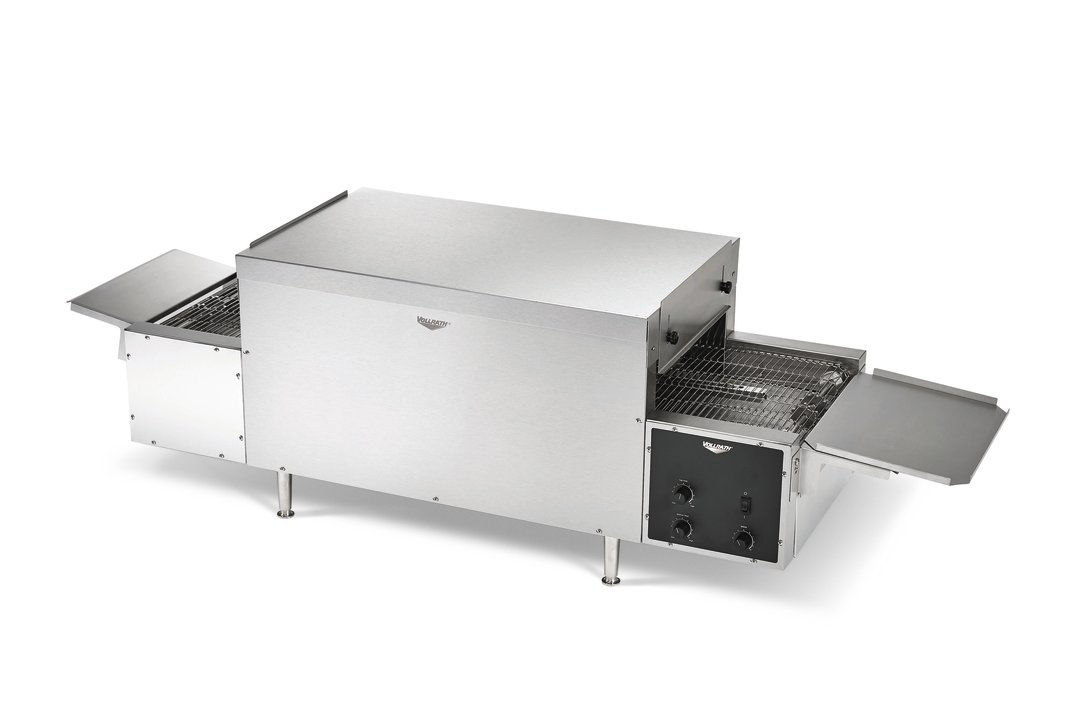

14-inch 220-volt conveyor sandwich oven with right-to-left operation

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$3559.50 MSRP

$5,932.50 List Price

Vollrath's conveyor sandwich ovens deliver consistently toasted bread while melting cheese and warming meat.

220V
14” wide conveyor
Belt moves right-to-left, please specify when ordering
Adjustable 1 ½”-4” product opening for added heat control
Phased top and bottom heat controls
Intended for operations that regularly produce high volumes of toasted sandwiches
Includes loading and receiving trays
Variable speed control allows for real-time adjustments
Forced convection toasting promotes uniform results and energy efficiency
Energy efficient, fast-reacting, quartz heaters
Intended to toast sandwiches and melt cheese. Not intended to cook raw food.
Infinite top and bottom heat controls
UL tested and verified for ventless operation – meets or surpasses EPA 202. (Local codes may apply. Contact your local Authority Having Jurisdiction for more information.)

Product Specifications

Model Information

Name	Value
Model	JSO14
UPC	671080718293

Unit Dimensions

Name	Value
Overall Dimensions (IN)	68 x 18.875 x 21
(W) Width (IN)	68
(D) Depth (IN)	18.87
(H) Height (IN)	21
(WL) Width between legs	25.5
(DL) Depth between legs	16.5
Product Opening Dimensions (IN)	1.5 - 4
Conveyor Width (IN)	14
Overall Dimensions (CM)	172.7 x 47.5 x 53.3
(W) Width (CM)	172.7
(D) Depth (CM)	47.5
(H) Height (CM)	53.3
(WL) Width between legs (CM)	64.8
(DL) Depth between legs (CM)	41.9
Product Opening Dimensions (CM)	3.8 - 10.2
Conveyor Width (CM)	35.6
Size	14

Electrical

Name	Value
Amps	25.5
Cord Length (IN)	72
Cord Length (CM)	180
Hz	60
Plug	NEMA 6-50P
Voltage	220
Watts	5600

Construction

Name	Value
Countertop or Drop-In	Countertop

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	30
Case Height	26
Case Length	58
Case Lot Cube (ft.)	26.18
Case Lot Weight (lbs.)	215

Product Accessories

Name	Item #
JSO/JPO14 Dual Oven Stacking Spacer	351036

Product Parts

Name	Part #	Price
CORD FAN HP-75.24-A	B401060	$13.80
SILVER PUSH-ON KNOB W/SET SCRW	B405019	$17.00
KNOB STUD PHENOLIC	B401188	$6.40
BEARING SPRING LOADED	B401353	$58.60
SWITCH FAN CERAMIC	B401107	$47.30
COLLAR SHAFT .375 X .750	B401347	$7.28
68C RESET SWITCH	B405028	$35.10
SHAFT BELT SUPPORT - 15.75"	B401374	$81.54
MOTOR DRIVE 208/240V RMS 344	B401201	$228.30
PO4 14" UNLOAD TRAY ASSM	B205104	$199.16
32-TOOTH SPROCKET	B401302	$95.80
SPRING	B400263	$10.50
CLASS B 240V FAN MOTOR	B405011	$103.30
50A 10/3 72" POWER CORD	B401088	$191.00
TERMINAL BLOCK 5 POSITION	B401033	$17.90
GUARD FAN	B401220	$9.90
5A CIRCUIT BREAKER	B405014	$33.30
SPROCKET 25B17-3/8	B401303	$41.20
CONTACTOR MANUAL 208/240	B401175	$107.60
UNLOAD TRAY UPPER	B305769	$45.66
14" LOAD TRAY	B305772	$63.75
TERMINAL BLOCK 2 POSITION	B401034	$6.50
14" UNLOAD TRAY - LOWER	B305771	$61.78
SHAFT DRIVE	B401379	$204.26
SHAFT ILDER	B401380	$198.64
LEG METAL PLATED 4" ADJ	B400301	$41.20
BEARING ASSEMBLY 3/8"	B201101	$23.80
HEYCO 1" SNAP BUSHING 2140	B400334	$0.73
PHASE CONTROL 240V	B401125	$242.00
PO4 14" WIRE BELT	B205108	$389.20
