936CG
Discontinued36-inch Cayenne® heavy-duty radiant / lava rock charbroiler
The Vollrath® Cayenne heavy-duty charbroiler is built for years of hard work.

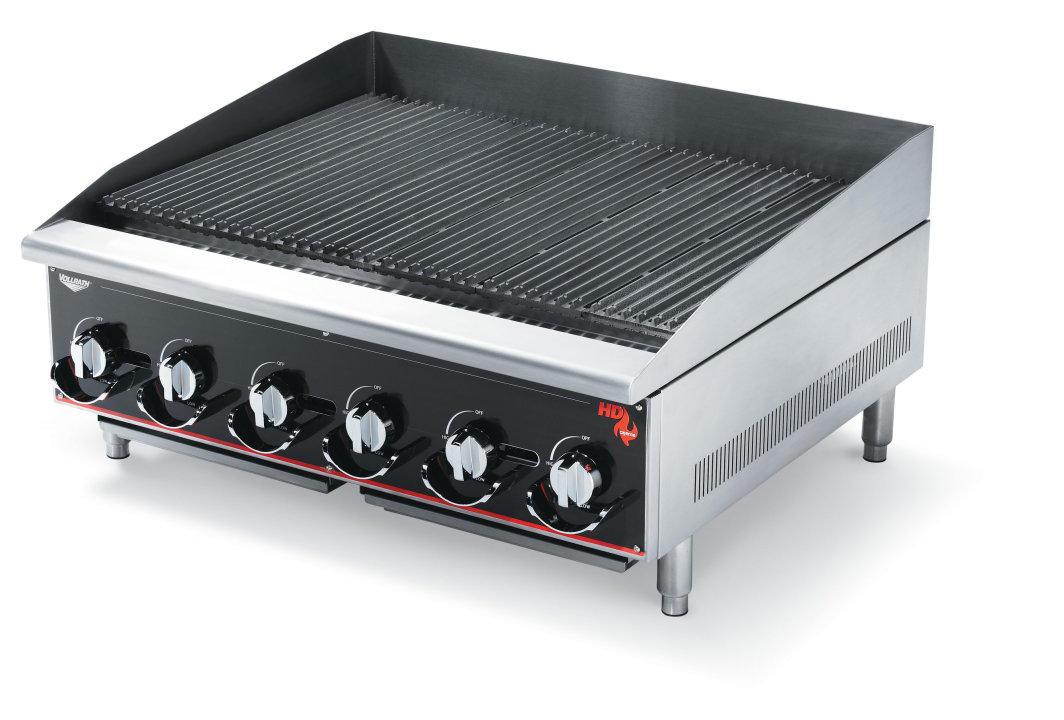

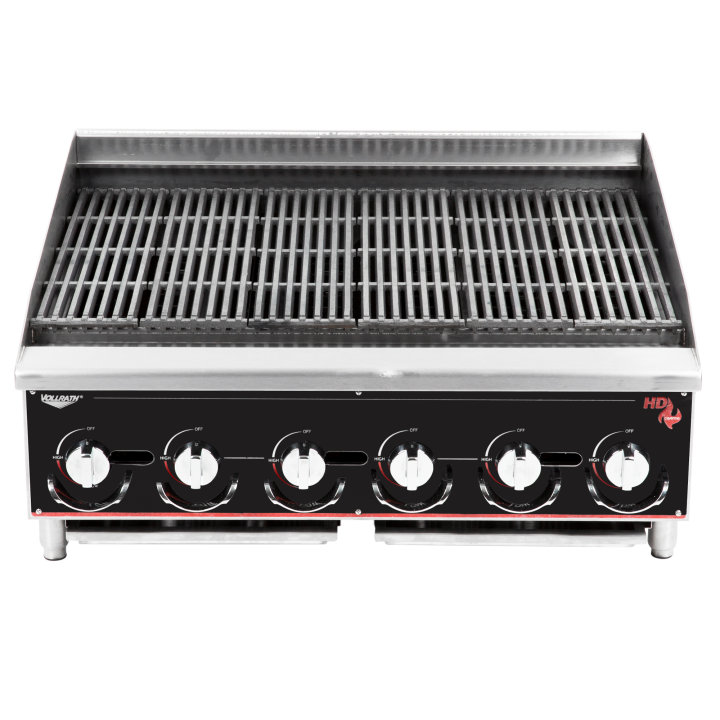

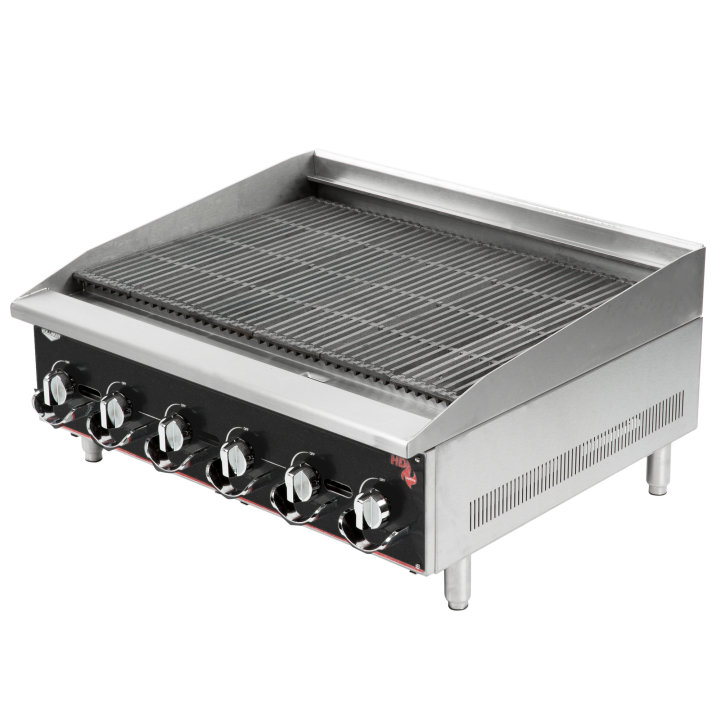

36-inch Cayenne® heavy-duty radiant / lava rock charbroiler
The Vollrath® Cayenne heavy-duty charbroiler is built for years of hard work. The stainless steel burner design and heavy-duty cast-iron radiants provide even heat distribution and retention, while durable gas valves last for years. Manual controls ensure accurate cooking temperatures, and their strong metal construction prevents breaking or cracking, protecting the interior gas valves. One side of the versatile grill plate features narrow surfaces with integral channels designed to dispense excess fat, while the other side has flatter and wider grill surfaces for more delicate items like fish. Angled adaptor bars enable the grill plates to be angled away from heat sources for slower cooking, directing grease away and minimizing flare-ups. Adjustable legs allow height flexibility based on your preference, while the fully welded stainless steel construction, back and side splashes, and narrow grease trays make cleaning easy and prevent grease and dirt buildup.

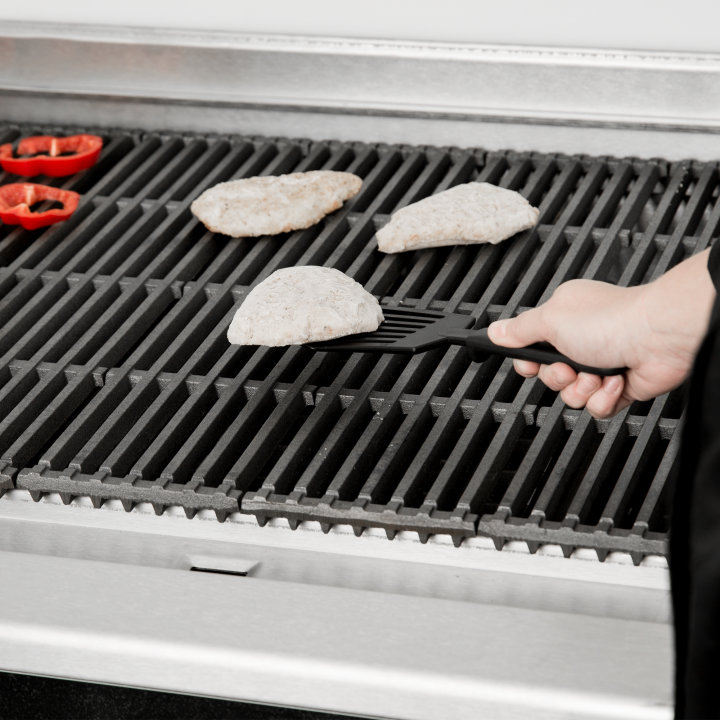

Versatile two-sided grill plate is ideal for a variety of meats as well as delicate items like fish

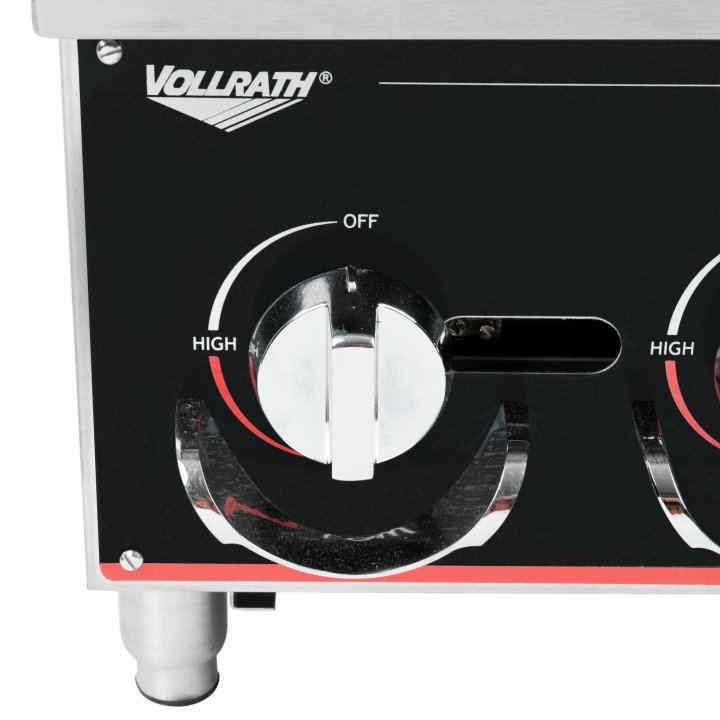

Strong metal knobs and knob guards won’t break or crack, protecting interior gas valves, and are guaranteed for life
Narrow grease trays are easy to clean and fit in commercial dishwashers
Ships complete with kits for both radiant and lava rock setups
Shipped setup for natural gas — includes kit with regulator for field conversion to propane
Burners are placed only 6 inches apart to ensure powerful heating
¾-inch NPT gas inlet
40,000-BTU per 12-inch cooking surface
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419846849 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 120000 |
| Number of Burners | 6 |
| Pilot Type | Standing |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 36 x 31 x 17.062 |
| (W) Width (IN) | 36 |
| (D) Depth (IN) | 32.5 |
| (D2) Secondary Depth (IN) | 31 |
| (D3) Additional Depth (IN) | 3.25 |
| (H) Height (IN) | 17.37 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (DCS) Cooking Surface Depth (IN) | 24 |
| (HBS) Backsplash Height (IN) | 5 |
| Overall Dimensions (CM) | 91.4 x 78.7 x 43.3 |
| (W) Width (CM) | 91.4 |
| (D) Depth (CM) | 64.8 |
| (D2) Secondary Depth (CM) | 78.7 |
| (D3) Additional Depth (CM) | 8.3 |
| (H) Height (CM) | 44.2 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (DCS) Cooking Surface Depth (CM) | 61 |
| (HBS) Backsplash Height (CM) | 12.7 |
| Size | 36 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Control Type | Manual |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 2 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 38.75 |
| Case Height | 24.75 |
| Case Length | 36.25 |
| Case Lot Cube (ft.) | 20.12 |
| Case Lot Weight (lbs.) | 350.0 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| TOP GRATE CBL/CBR GAS NEW TYPE | XCBR9001 | $196.00 |
| HD CHAR GRILL | 21484-1 | $205.70 |
| PILOT VALVE FTG/CBL/CBR (#22) | XFTG9003 | $47.40 |
| PILOT BURNER BRACKET | XCBL9022 | $2.80 |
| STRAIGHT BURNER 20 000 BTU | 21472-1 | $55.50 |
| BURNER COVER LAVA ROCK | XCBL9005 | $49.80 |
| LEG GAS APPLIANCE | XFTG9012 | $119.70 |
| KNOB GUARD | 2351608-1 | $32.50 |
| 3/4" NPT MANUAL BALL VALVE | XCGC0018 | $61.90 |
| HD CAST IRON RADIANT | 21481-1 | $113.70 |
| JET NAT 2.40 #40 | XFTG9007 | $19.60 |
| FASCIA DECAL | XCBL9006 | $151.50 |
| LAVA ROCK 5LB | XCBL0005 | $31.10 |
| PILOT BURNER | 21486-1 | $76.50 |
| DRIP PAN HD CHAR CB2036 | 21468-1 | $185.70 |
| GAS VALVE TYPE B 1.15MM HOLE | 2146715-1 | $81.60 |
| HD LAVA ROCK GRATE-SMALL | 2146810-1 | $116.60 |
| CONTROL KNOB - GAS FTG/CB | XFTG9010 | $30.30 |
| REGULATOR 4IN WC | 353374-1 | $227.70 |
| HD LAVA ROCK GRATE-LARGE | 2146820-1 | $158.30 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
Customer Questions
Be the first to ask a question
