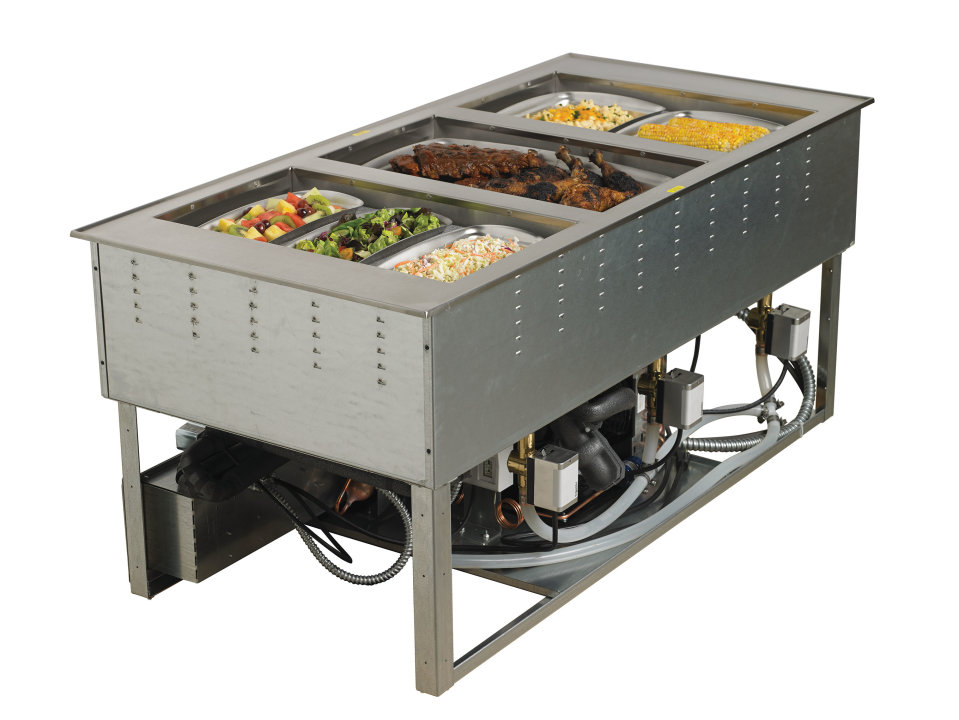

120 Volt Three-Well Top Mount Hot or Cold Drop-In with Auto Drain

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$9024.00 MSRP

$15,040.00 List Price

Two units in one for the ultimate in convenient serving.

Versatile hot/cold drop-in units provide the ultimate in convenient serving options
Allows you to change from a cold salad bar to hot dinner buffet with the flip of a switch
Wells pass NSF 4 and NSF 7 performance testing for open top hot food holding and refrigerated buffet units. They are listed under NSF/ANSI 169 for special purpose food equipment and devices.
A full perimeter drip edge contains spills and condensation within the stainless steel countertop area for a clean, appetizing display
Top and seamless well are 18-gauge 300 series stainless steel
High-density polyurethane foam insulation surrounds the well exterior for the ultimate in efficient performance and energy savings
One-well units available in top and bottom mount designs
Exterior housing is 18-gauge galvanized steel
Refrigeration coils surround the exterior sidewalls of the well for maximum cooling
Thermostatic hot control
Unit comes with 6 ft. (1.5 m) cord and plug and does not require hard wiring
4 ft. (1.2 m) flexible control cord
One year parts and labor warranty - additional four years on compressor
Note: Item made to order, cannot be canceled or returned.
Controls wells individually

Product Specifications

Model Information

Name	Value
UPC	029419045778

Unit Dimensions

Name	Value
Overall Dimensions (IN)	54.75 x 26 x 24.3125
(W) Width (IN)	54.75
(D) Depth (IN)	26
(H) Height (IN)	24.31
(W) Width (CM)	139.1
(D) Depth (CM)	66
(H) Height (CM)	61.8

Electrical

Name	Value
Plug	5-15P
Voltage	120

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	30
Case Height	34
Case Length	60
Case Lot Cube (ft.)	35.4
Case Lot Weight (lbs.)	311

Product Accessories

Name	Item #
Control panel mounting frame for Three-Well drop-in	43580-2

Product Parts

Name	Part #	Price
TEE BARBED 5/8" NYLN 150 PSI	2913102-1	$3.40
DROP-IN MOUNTING CLIP	44179-1	$3.10
POWER CORD 120V NEMA 5-20P 72"	17860-1	$38.70
FILTER DRIER DCL 032	351333-1	$37.50
VALVE BODY DRAIN 2-WAY STEAM	23538-1	$228.80
TOGGLE SWITCH 3/4HP 125-250VAC	23562-1	$39.90
KNOB CONTROL	23423-1	$8.98
THERMOSTAT HIGH LIMIT	17950-1	$4.70
DRAIN HOSE-5/8"ID HOT WELLS	26907-3	$13.20
HOSE CLAMP	26681-1	$2.90
MOTOR-FAN 6W115SHORT	351897-1	$103.10
KIT ELEC PARTS AFE08C4E-IAA	352240-2	$124.30
HIGH LIMIT THERMOSTAT 125C	25438-1	$23.70
TIMER DELAY ON MAKE ICM102	43508149-1	$106.90
THUMBSCREW 1/4-20 X 2"	23035-3	$4.90
KIT 120V 625W ELEMENT	351884-2	$328.40
CONTACTOR GRAINGER 5B134	43509180-1	$142.60
PILOT LIGHT - RED 125V	23065-3	$14.76
SWITCH TOGGLE	26273-1	$86.60
LIQUID LINE SOLENOID VALVE	23568-1	$202.60
VALVE ACTUATOR NORMAL CLOSED	23542-1	$599.30
HOT WELL DRAIN SCREEN	44406-2	$2.90
TEMPERATURE CONTROL DIGITAL	4350849-1	$224.70
RELAY POWER	25357-1	$20.50
KIT CRO-4 48 PSIG R404A	352239-2	$241.80
SNAP BUSHING HEYCO SB-500-6	21528-3	$0.72
CONNECTOR 5 WIRE WAGO 221-415	4350812-1	$5.30
PILOT LIGHT - BLUE 125V	1755901-1	$6.10
HOT-COLD PAN LIFTER	46536-2	$130.60
CONDENSING UNIT 1/4HP, R404A	23859-1	$1,004.50
KIT, TXV (PCN 017132)	352238-2	$191.90
COIL, FOR SOLENOID VALVE	4350818-1	$76.50
THRMSTT 144" CAPILARY 96/BX	17795-1	$136.10
STRAIN RELIEF - FOR 3/8 CORD	26543-3	$2.00
CONNECTOR 3 WIRE WAGO 221-413	4350811-1	$8.80
DUAL PRESSURE CNTL PS2-Y7L	4350848-1	$225.60
CONNECTOR 2 WIRE WAGO 221-412	4350810-1	$1.40
