3667201D

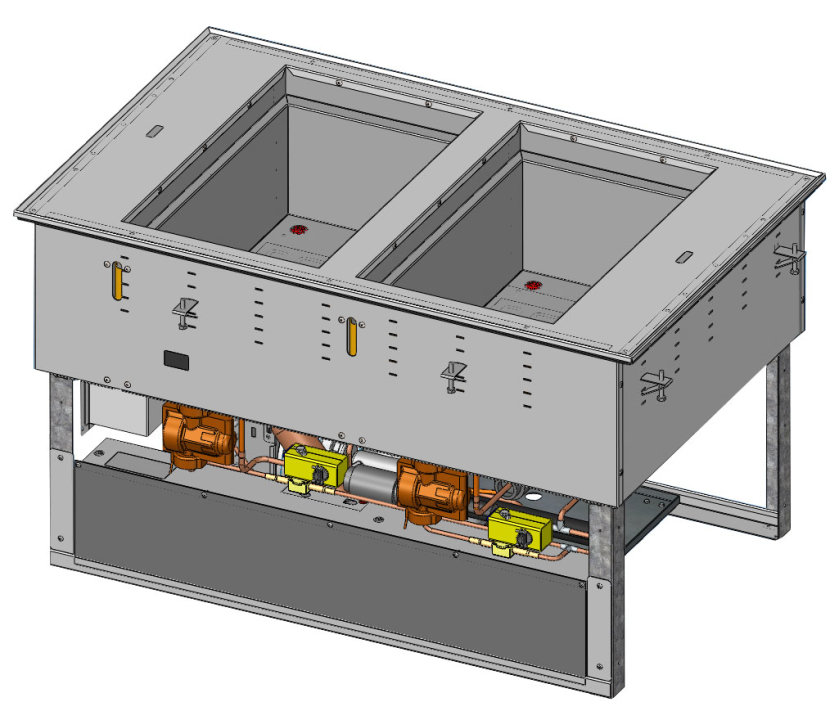

Discontinued120 Volt Two-Well Top Mount Hot or Cold Drop-In
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
$6703.14
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$11,171.90
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
Two units in one for the ultimate in convenient serving.
- Versatile hot/cold drop-in units provide the ultimate in convenient serving options
- Allows you to change from a cold salad bar to hot dinner buffet with the flip of a switch
- Wells pass NSF 4 and NSF 7 performance testing for open top hot food holding and refrigerated buffet units. They are listed under NSF/ANSI 169 for special purpose food equipment and devices.
- A full perimeter drip edge contains spills and condensation within the stainless steel countertop area for a clean, appetizing display
- Top and seamless well are 18-gauge 300 series stainless steel
- High-density polyurethane foam insulation surrounds the well exterior for the ultimate in efficient performance and energy savings
- One-well units available in top and bottom mount designs
- Exterior housing is 18-gauge galvanized steel
- Refrigeration coils surround the exterior sidewalls of the well for maximum cooling
- Thermostatic hot control
- Unit comes with 6 ft. (1.5 m) cord and plug and does not require hard wiring
- 4 ft. (1.2 m) flexible control cord
- One year parts and labor warranty - additional four years on compressor
- Note: Item made to order, cannot be canceled or returned.
- Controls wells individually
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419851485 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 41.5 x 26 x 24.3125 |
| (W) Width (IN) | 41.5 |
| (D) Depth (IN) | 26 |
| (H) Height (IN) | 24.31 |
| (W) Width (CM) | 105.4 |
| (D) Depth (CM) | 66 |
| (H) Height (CM) | 61.8 |
Electrical
| Name | Value |
|---|---|
| Plug | 5-15P |
| Voltage | 120 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 30 |
| Case Height | 33 |
| Case Length | 43 |
| Case Lot Cube (ft.) | 24.64 |
| Case Lot Weight (lbs.) | 254.0 |
Product Accessories
| Name | Item # |
|---|---|
| Control panel mounting frame for Two-Well drop-in | 43579-2 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| HOSE CLAMP | 26681-1 | $2.90 |
| DRAIN PLUG | 25136-1 | $62.00 |
| 16 GA. POWER CORD 120V | 17085-1 | $21.30 |
| TEE BARBED 5/8" NYLN 150 PSI | 2913102-1 | $3.40 |
| DROP-IN MOUNTING CLIP | 44179-1 | $3.10 |
| KNOB CONTROL | 23423-1 | $8.98 |
| MOTOR-FAN 6W115SHORT | 351897-1 | $103.10 |
| KIT ELEC PARTS AFE08C4E-IAA | 352240-2 | $124.30 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| FILTER DRIER DCL 032 | 351333-1 | $37.50 |
| TOGGLE SWITCH 3/4HP 125-250VAC | 23562-1 | $39.90 |
| LIQUID LINE SOLENOID VALVE | 23568-1 | $202.60 |
| HOT WELL DRAIN SCREEN | 44406-2 | $2.90 |
| TEMPERATURE CONTROL DIGITAL | 4350849-1 | $224.70 |
| RELAY POWER | 25357-1 | $20.50 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $4.70 |
| DRAIN HOSE-5/8"ID HOT WELLS | 26907-3 | $13.20 |
| KIT 120V 625W ELEMENT | 351884-2 | $328.40 |
| TIMER DELAY ON MAKE ICM102 | 43508149-1 | $106.90 |
| THUMBSCREW 1/4-20 X 2" | 23035-3 | $4.90 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| KIT CRO-4 48 PSIG R404A | 352239-2 | $241.80 |
| SNAP BUSHING HEYCO SB-500-6 | 21528-3 | $0.72 |
| CONNECTOR 5 WIRE WAGO 221-415 | 4350812-1 | $5.30 |
| CONTACTOR GRAINGER 5B134 | 43509180-1 | $142.60 |
| PILOT LIGHT - RED 125V | 23065-3 | $14.76 |
| THRMSTT 144" CAPILARY 96/BX | 17795-1 | $136.10 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.10 |
| SWITCH-120/277V 15A SINGLE POL | 24787-1 | $34.03 |
| HOT-COLD PAN LIFTER | 46536-2 | $130.60 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.00 |
| CONDENSING UNIT 1/4HP, R404A | 23859-1 | $1,004.50 |
| KIT, TXV (PCN 017132) | 352238-2 | $191.90 |
| COIL, FOR SOLENOID VALVE | 4350818-1 | $76.50 |
| DUAL PRESSURE CNTL PS2-Y7L | 4350848-1 | $225.60 |
| CONNECTOR 2 WIRE WAGO 221-412 | 4350810-1 | $1.40 |
