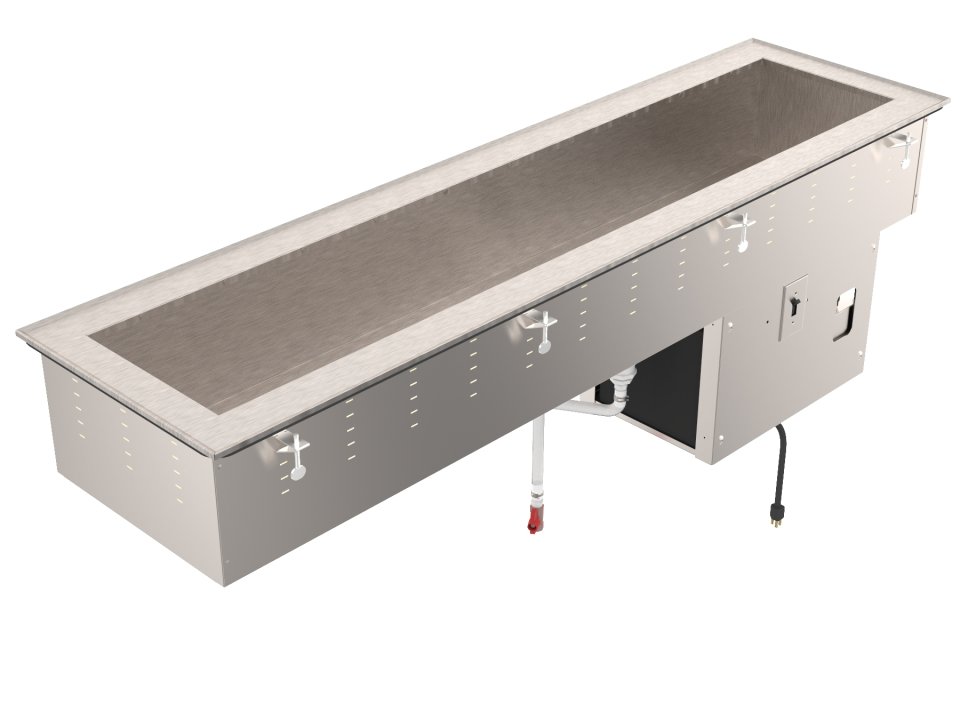

120 Volt Three-Pan Refrigerated Short Side Drop Ins
120 Volt Three-Pan Refrigerated Short Side Drop Ins

36655

Discontinued

120 Volt Three-Pan Refrigerated Short Side Drop Ins

  • Made in USA
  • Underwriter Laboratories

    This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$3610.68 MSRP Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$6,017.80 List Price List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

Our innovative short side drop ins are now available in a refrigerated version.

  • Cutout dimensions has a 7/8" (2.2 cm) corner radius
  • Cold drop-ins are best used for holding periods up to 4 hours - for best performance, stainless steel containers are recommended
  • Display well 6 5/8" (16.8 cm) deep
  • Thick polyurethane foam insulation
  • Zero clearance for flexibility in installation
  • NSF7 units
  • Drain plug included
  • NOTE: Item made to order, cannot be canceled or returned.

Product Specifications

Model Information
Name Value
UPC 029419767991
Unit Dimensions
Name Value
Overall Dimensions (IN) 66.875 x 18.0625 x 22.8125
(W) Width (IN) 66.87
(D) Depth (IN) 18.06
(H) Height (IN) 22.81
(W) Width (CM) 170
(D) Depth (CM) 45.9
(H) Height (CM) 58
Electrical
Name Value
Voltage 120
Case Lot Measurement
Name Value
Case Lot 1
Case Width 22.25
Case Height 34.25
Case Length 72
Case Lot Cube (ft.) 26.75
Case Lot Weight (lbs.) 190.0
Product Parts
Name Part # Price
DROP-IN MOUNTING CLIP 44179-1 $3.10
MOTOR-FAN 352317-1 $199.99
ADAPTOR-1/2" NPT X 1/2 HOSE 26723-3 $3.90
DRAIN HOSE-5/8"ID CLEAR VINYL 26730-3 $5.60
16 GA. POWER CORD 120V 17085-1 $21.30
ADAPTOR-1 1/2 X 1 1/4 PVC 26632-3 $11.90
RECEPTACLE-125V 15A SINGLE 26549-3 $26.80
SWITCH PLATE FOR 1 TOGGLE SW. 24786-3 $14.66
SWITCH-120/277V 15A SINGLE POL 24787-1 $34.03
FITTING-DRAIN 1-1/4" X 5" 21450-3 $60.90
STRAIN RELIEF - FOR 3/8 CORD 26543-3 $2.00
THUMBSCREW 1/4-20 X 2" 23035-3 $4.90
THERMOSTAT RANCO O10-1416-000 26892-1 $430.50
KIT ELEC PARTS ARE25C5E-IAA 352312-2 $404.10

Warranty Information

Terms of Sale

Product Downloads

Resource preview Drop-in, Cold, Refrigerated, Short-Side - Specification Sheet (English)
Resource preview Drop-in, Cold, Refrigerated, NSF - Operator's Manual (Multi-Language)
Resource preview Drop-in, Hot, Cold and Hot/Cold Wells - Installation Instructions (Multi-Language)

CAD / REVIT

For the most updated list for Vollrath products and CAD drawings

Visit VOLLRATH.KCLCAD.COM

Customer Questions

Be the first to ask a question
