72500

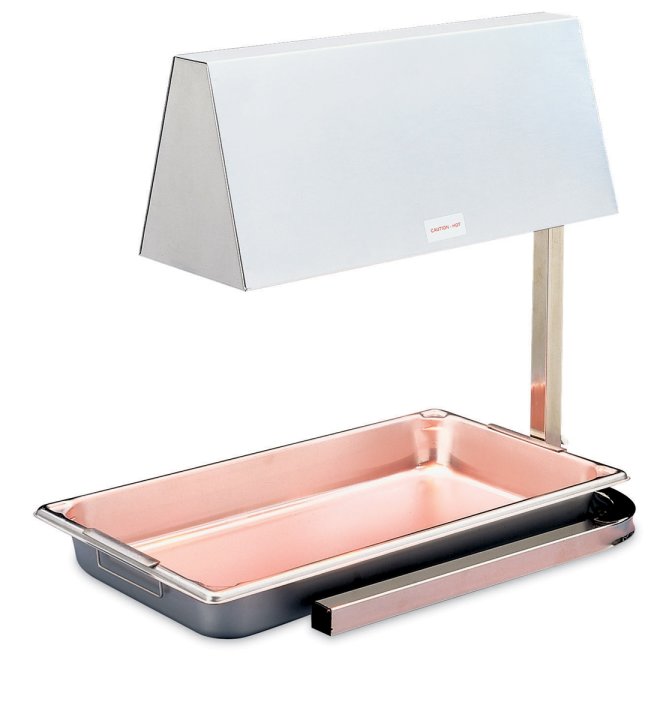

120-volt Cayenne® OHC-500 heat lamp
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
$365.58
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$609.30
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
Maintain serving temperatures with the Vollrath® Cayenne OHC-500 heat lamp. This stainless steel hood evenly directs heat over a 12” x 20” area, and the lamp height is adjustable, accommodating your preference. The chrome-plated legs and uprights give this lamp a clean finish, and the on/off switch is cord-mounted for ultimate convenience. Nonskid feet prevent movement, while the two shatterproof red bulbs maintain safety.
- Ideal for sides, entrees, soups and more
- Pan not included
- Lamp height is adjustable from 12 1/2 inches to 20 1/2 inches above counter
- Wide base assembly holds standard 12” x 20” pan or Vollrath 71001 warmer
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | OHC-500 |
| UPC | 029419159093 |

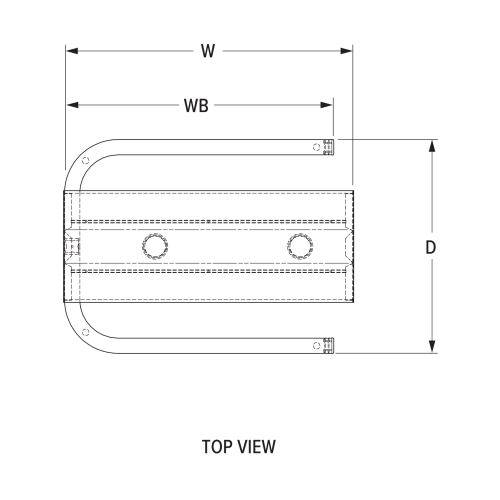

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 19 x 14 x 20.75 |
| (W) Width (IN) | 19 |
| (WB) Width Base (IN) | 17.625 |
| (D) Depth (IN) | 14 |
| (H) Height (IN) | 20.75 |
| Usable Height (IN) | 12.5 - 20.5 |
| Max Height (IN) | 28.75 |
| (W) Width (CM) | 48.3 |
| (WB) Width Base (CM) | 44.8 |
| (D) Depth (CM) | 35.6 |
| (H) Height (CM) | 52.7 |
| Usable Height (CM) | 32 - 52.4 |
| Max Height (CM) | 73 |
Electrical
| Name | Value |
|---|---|
| Amps | 4.2 |
| Cord Length (IN) | 60 |
| Cord Length (CM) | 152 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 500 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Material Type | Metals |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 14.5 |
| Case Height | 10.75 |
| Case Length | 20.25 |
| Case Lot Cube (ft.) | 1.83 |
| Case Lot Weight (lbs.) | 12.5 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| OHC-500 PLATED BASE ASSEMBLY | 44281-2 | $123.40 |
| 022-254-HDWE-RM SOCKET | 17153-1 | $14.60 |
| KNOB - 3 ARM CLAMING PHENOLIC | 17277-1 | $4.50 |
| O RING OHC-500 | 17150-3 | $2.10 |
| HEYCO STRAIN RELIEF | 17045-3 | $2.40 |
| OHC-500 HOOD SUPPORT | 44276-2 | $66.00 |
| 1 X 1" Black Tube Plug | 17156-3 | $1.70 |
| POWER CORD W/SWITCH | 17152-1 | $54.00 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| BLACK RUBBER FOOT OHC-500 | 17157-3 | $1.70 |
| LAMP 250W 120V RED SHAT RES | 17500-1 | $62.80 |
Product Downloads
CAD / REVIT
