CT4H-23055003

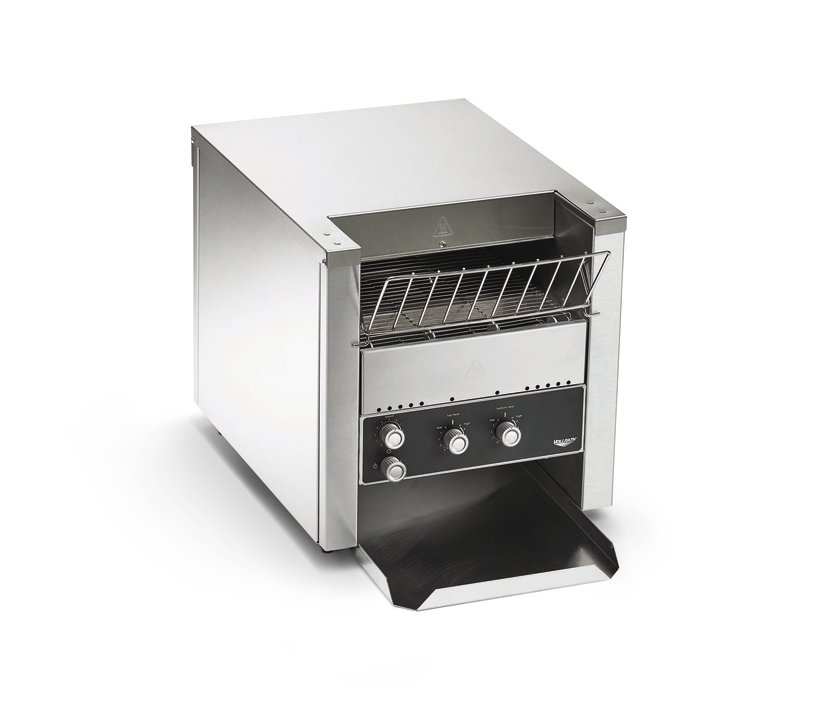

DiscontinuedInternational Conveyor Toasters
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$0.00
List Price
Vollrath Conveyor Toasters feature industry-leading design technology and are made in the USA. Forced convection and energy-efficient quartz heaters provide consistent toasting of bread products.
- Forced convection toasting promotes uniform results and energy efficiency.
- Energy efficient, fast reacting, quartz heaters.
- Standby mode saves up to 75 percent energy during slow periods when unit is not in use and allows unit to quickly return to full power.
- Variable speed control to achieve desired color.
- Stainless steel and aluminized steel construction.
- 10-1/2” (26.7 cm) 2-slice wide conveyor is larger than industry standard for better toasting results.
- High-temperature bearings ensure smooth operation and do not require lubrication.
- High-quality, insulated wires help prevent against dry rotting and cracking.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JT2H |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 14.125 x 23.75 x 15.125 |
| (W) Width (IN) | 14.12 |
| (D) Depth (IN) | 23.75 |
| (H) Height (IN) | 15.12 |
| (WL) Width between legs | 12.187 |
| (DL) Depth between legs | 14.062 |
| Product Opening Dimensions (IN) | 1.5 - 3 |
| (DB) Depth of Body (IN) | 18.25 |
| Conveyor Width (IN) | 10.5 |
| Overall Dimensions (CM) | 35.9 x 60.3 x 38.4 |
| (W) Width (CM) | 35.9 |
| (D) Depth (CM) | 60.3 |
| (H) Height (CM) | 38.4 |
| (WL) Width between legs (CM) | 31 |
| (DL) Depth between legs (CM) | 35.7 |
| Product Opening Dimensions (CM) | 3.8 - 7.6 |
| (DB) Depth of Body (CM) | 46.4 |
| Conveyor Width (CM) | 26.7 |
Electrical
| Name | Value |
|---|---|
| Amps | 11.2 |
| Cord Length (IN) | 54 |
| Cord Length (CM) | 140 |
| Hz | 50/60 |
| Plug | UK |
| Domestic / International | United Kingdom |
| Voltage | 220 - 240 |
| Watts | 2800 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Food Type | Standard Breads, Specialty Breads, Buns, Bagels |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $13.80 |
| SPROCKET 25B17-8MM | B401300 | $31.10 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $17.00 |
| MOTOR DRIVE 208/240V RMS 344 | B401201 | $228.30 |
| 14 Ga Straight Strain Relief | B400320 | $7.60 |
| LABEL RESET CT4 | B401425 | $8.22 |
| SHAFT DRIVE 10.5" | B401340 | $79.90 |
| 2PK HEAT ELEM 11-3/8 120V 700W | 59854 | $172.90 |
| SILVER PUSH-ON KNOB | B405018 | $9.30 |
| SPRING .038" DIA 2.462" LENGTH | B400260 | $9.90 |
| CT4 TOAST CHUTE | B300012 | $68.43 |
| TERMINAL BLOCK 5 POSITION | B401033 | $17.90 |
| GUARD FAN | B401220 | $9.90 |
| SWITCH 240 V | B401102 | $52.20 |
| SWITCH FAN CERAMIC | B401107 | $47.30 |
| LOAD-UP RACK WIRE CT4 | B400381 | $34.20 |
| BELT WIRE CONVEYOR 10.5"X30" | B204273 | $423.40 |
| SHAFT IDLER 10.5" | B401341 | $79.50 |
| CORD UK 13 AMP FUSE | B401054 | $48.98 |
| CONTROL SPEED 500 OHM CT4 | B200901 | $79.10 |
| BEARING FRONT SPRING LOADED | B401350 | $17.90 |
| RESET SWITCH | B401100 | $47.30 |
| CHAIN LADDER DRIVE 15" | B401388 | $52.40 |
| BEARING ASSEMBLY 5/16 | B201100 | $27.70 |
| SWITCH ROTARY POWER SAVER | B401103 | $65.30 |
| LEGS BLACK 1" 1/4-20 | B400300 | $18.10 |
| BEARING, TEFLON 5/16 | B401355 | $8.84 |
| 7/8 WIRE CLAMP | B400331 | $1.14 |
| TERMINAL BLOCK 2 POSITION | B401034 | $6.50 |
| 1 1/4" SNAP BUSHING | B400330 | $0.62 |
| 5/8 SNAP BUSHING | B400332 | $0.10 |
| CT4H HEAT SHUTTER | B300058 | $14.77 |
| CORD WARNING LABEL | B401404 | $0.42 |
| LABEL CONTROL CT4 | B401401 | $22.00 |
| MOTOR FAN | B401211 | $93.10 |
