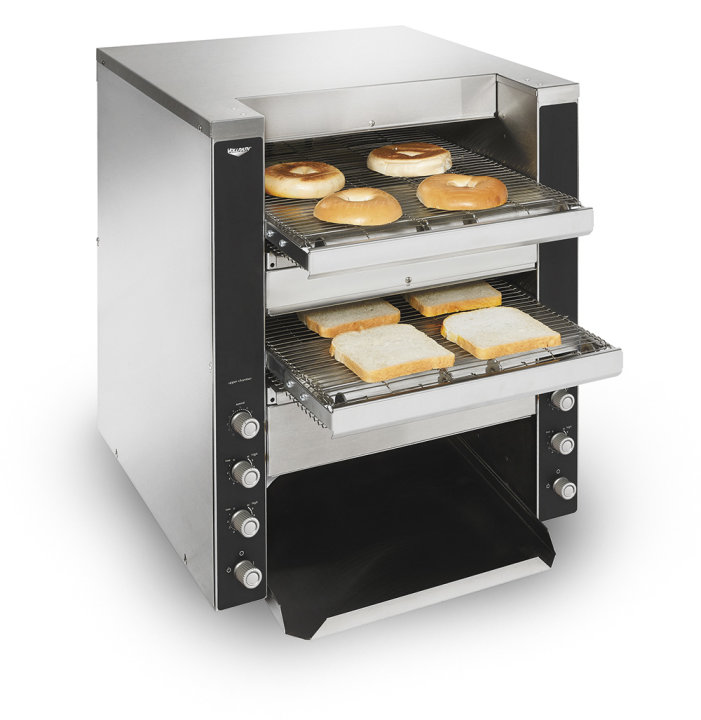

CT4-230DUAL
Dual Conveyor toaster
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
$3741.60
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$6,236.00
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
Vollrath Conveyor Toasters feature industry-leading design technology and are made in the USA. Forced convection and energy-efficient quartz heaters provide consistent toasting of bread products.
- Forced convection toasting promotes uniform results and energy efficiency.
- Energy efficient, fast reacting, quartz heaters.
- Standby mode saves up to 75 percent energy during slow periods when unit is not in use and allows unit to quickly return to full power.
- Variable speed control to achieve desired color.
- Stainless steel and aluminized steel construction.
- High-temperature bearings ensure smooth operation and do not require lubrication.
- High-quality, insulated wires help prevent against dry rotting and cracking.
- 14½" (36.8 cm) 3-slice wide conveyors are larger than industry standard for better toasting results.
- Top chamber product entry opening is adjustable from 1½" - 3" (3.8 - 7.6 cm).
- Bottom chamber product entry opening is adjustable up to 1½" (3.8 cm).
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JT4 |
| UPC | 671080844336 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 20.25 x 28.75 x 23.5 |
| (W) Width (IN) | 20.25 |
| (D) Depth (IN) | 28.75 |
| (H) Height (IN) | 23.5 |
| (WL) Width between legs | 17.375 |
| (DL) Depth between legs | 15.5 |
| Product Opening Dimensions (IN) | 1.5 - 3 |
| Conveyor Width (IN) | 14.5 |
| Overall Dimensions (CM) | 51.4 x 73 x 59.7 |
| (W) Width (CM) | 51.4 |
| (D) Depth (CM) | 73 |
| (H) Height (CM) | 59.7 |
| (WL) Width between legs (CM) | 44.2 |
| (DL) Depth between legs (CM) | 39.4 |
| Product Opening Dimensions (CM) | 3.8 - 7.6 |
| Conveyor Width (CM) | 36.8 |
Electrical
| Name | Value |
|---|---|
| Amps | 19.8 |
| Hz | 50/60 |
| Plug | Stripped ends |
| Domestic / International | International |
| Voltage | 220-240 |
| Watts | 4950 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Food Type | Standard Breads, Specialty Breads, Buns, Bagels |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 26.000014 |
| Case Height | 28 |
| Case Length | 34.000018 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $13.80 |
| SPROCKET 25B17-8MM | B401300 | $31.10 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $17.00 |
| MOTOR DRIVE 208/240V RMS 344 | B401201 | $228.30 |
| SILVER PUSH-ON KNOB | B405018 | $9.30 |
| CHAIN LADDER 26" | B401387 | $36.40 |
| CT4-2000 NOSE GUARD | B300807 | $49.61 |
| SHAFT IDLER | B401349 | $69.70 |
| SWITCH FAN CERAMIC | B401107 | $47.30 |
| CT4-DUAL SIDE PANEL | B300230 | $96.10 |
| TERMINAL BLOCK 5 POSITION | B401033 | $17.90 |
| GUARD FAN | B401220 | $9.90 |
| CORD POWER 12/3 60" 6-30P | B401051 | $66.40 |
| 2PK HEAT ELEM 15-3/8 80V 413W | 59852 | $178.80 |
| LOWER CHAMBER LABEL | B401424 | $67.00 |
| CONTROL SPEED 500 OHM CT4 | B200901 | $79.10 |
| RESET SWITCH | B401100 | $47.30 |
| UPPER CHAMBER LABEL | B401423 | $64.60 |
| SWITCH 240 V | B401102 | $52.20 |
| FRONT BEARING SPRING-LOADED | B401352 | $27.50 |
| LEGS BLACK 1" 1/4-20 | B400300 | $18.10 |
| CT4 18" TOAST CHUTE | B300013 | $100.78 |
| MOTOR DRIVE 208/240V REVERSED | B401203 | $218.00 |
| BEARING ASSEMBLY 5/16 | B201100 | $27.70 |
| SWITCH ROTARY POWER SAVER | B401103 | $65.30 |
| CHAIN LADDER 13.25." | B401386 | $28.40 |
| WIRE CONVEYOR BELT 14.5" X 42" | B205138 | $210.10 |
| SHAFT DRIVE 14.5" | B401342 | $60.20 |
| SPRING .038" DIA 1.500" LENGTH | B400261 | $3.50 |
| MOTOR FAN | B401211 | $93.10 |
| BEARING, TEFLON 5/16 | B401355 | $8.84 |
| 7/8 WIRE CLAMP | B400331 | $1.14 |
| CORD WARNING LABEL | B401404 | $0.42 |
| CT4H 18" HEAT SHUTTER | B300059 | $18.72 |
| SO2 14.5" CRUMB TRAY ASSM | B205129 | $111.07 |
| STRGHT 12 GA STRAIN RLF BSHNG | B400321 | $0.80 |
| 1 1/4" SNAP BUSHING | B400330 | $0.62 |
