CT2H-23025003
DiscontinuedInternational Conveyor Toasters
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$0.00
List Price

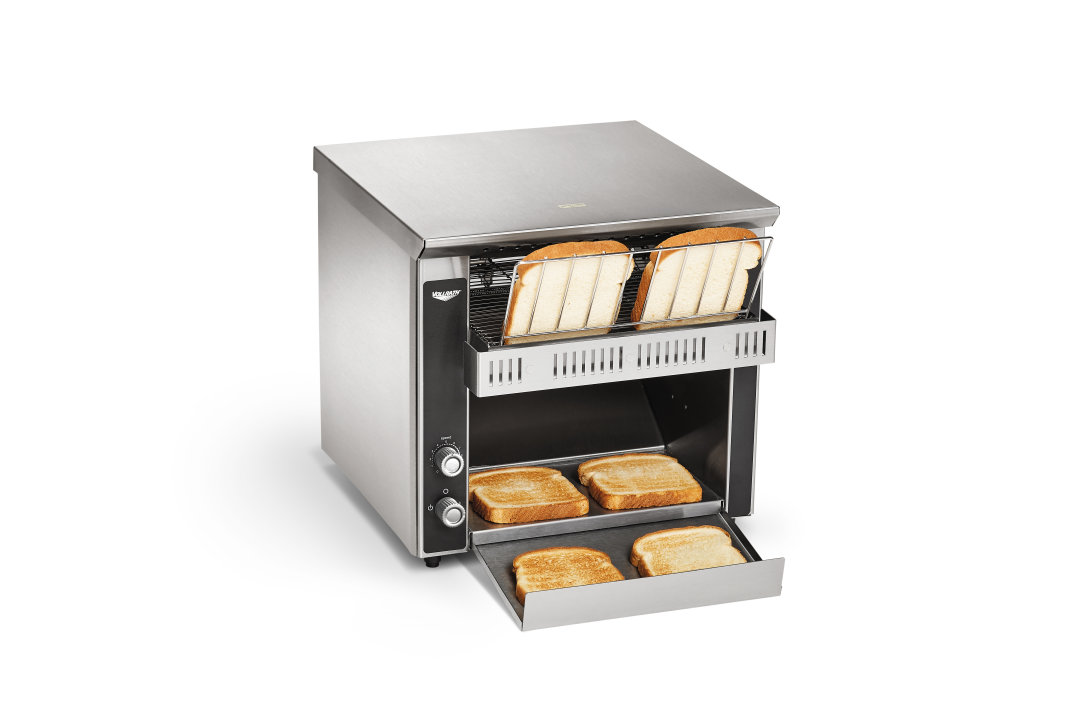

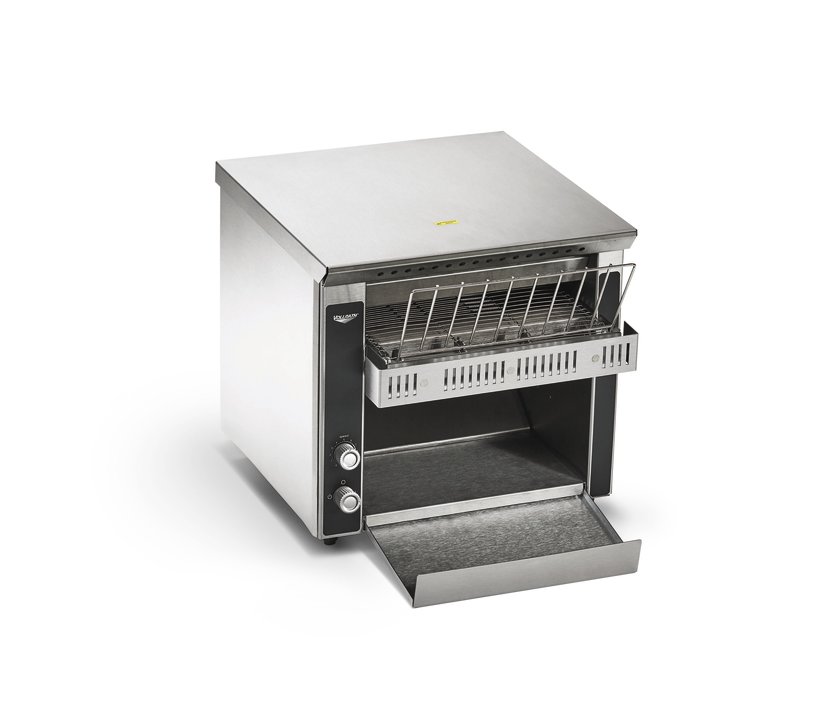

Vollrath Conveyor Toasters feature industry-leading design technology and are made in the USA. Forced convection and energy-efficient quartz heaters provide consistent toasting of bread products.
- Forced convection toasting promotes uniform results and energy efficiency.
- Energy efficient, fast reacting, quartz heaters.
- Standby mode saves up to 75 percent energy during slow periods when unit is not in use and allows unit to quickly return to full power.
- Variable speed control to achieve desired color.
- Stainless steel and aluminized steel construction.
- 10½" (26.7 cm) 2-slice wide conveyor is larger than industry standard for better toasting results.
- Up to 250 slices or bun halves/hour.
- 2-1/8” product opening.
- High-quality, insulated wires help prevent against dry rotting and cracking.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JT1H |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 14.5 x 16.5 x 14.187 |
| (W) Width (IN) | 14.5 |
| (D) Depth (IN) | 16.5 |
| (H) Height (IN) | 14.18 |
| (WL) Width between legs | 12.437 |
| (DL) Depth between legs | 11.312 |
| Product Opening Dimensions (IN) | 1 - 2.125 |
| (DB) Depth of Body (IN) | 14.75 |
| Conveyor Width (IN) | 10.5 |
| Overall Dimensions (CM) | 36.8 x 41.9 x 36 |
| (W) Width (CM) | 36.8 |
| (D) Depth (CM) | 41.9 |
| (H) Height (CM) | 36 |
| (WL) Width between legs (CM) | 31.6 |
| (DL) Depth between legs (CM) | 28.7 |
| Product Opening Dimensions (CM) | 2.5 - 7.6 |
| (DB) Depth of Body (CM) | 37.5 |
| Conveyor Width (CM) | 26.7 |
Electrical
| Name | Value |
|---|---|
| Amps | 7.6 |
| Hz | 50/60 |
| Plug | UK |
| Domestic / International | United Kingdom |
| Voltage | 220 - 240 |
| Watts | 1900 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Food Type | Standard Breads, Specialty Breads, Buns, Bagels |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $13.80 |
| SPROCKET 25B17-8MM | B401300 | $31.10 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $17.00 |
| 14 Ga Straight Strain Relief | B400320 | $7.60 |
| CONTROL SPEED 500 OHM | B200906 | $83.00 |
| 2PK HEAT ELEM 11-3/8 | 59893 | $299.40 |
| SHAFT DRIVE 10.5" | B401340 | $79.90 |
| MOTOR DRIVE 230/240V 50 HZ R | B401206 | $219.90 |
| TERMINAL BLOCK 5 POSITION | B401033 | $17.90 |
| GUARD FAN | B401220 | $9.90 |
| SHAFT IDLER 10.625" CT2 | B401344 | $91.30 |
| FRONT BEARING SPRING-LOADED | B401352 | $27.50 |
| CORD UK 13 AMP FUSE | B401054 | $48.98 |
| CURVED FRONT CT2/CT2H | B300133 | $29.85 |
| TRAY SLIDE OUT | B300115 | $26.62 |
| SPRING .038" DIA 1.500" LENGTH | B400261 | $3.50 |
| BEARING ASSEMBLY 5/16 | B201100 | $27.70 |
| JT1H SWING SHUTTER | B300131 | $20.49 |
| SILVER PUSH-ON KNOB | B405018 | $9.30 |
| CHAIN DRIVE LADDER 19" | B401384 | $43.30 |
| SWITCH ROTARY POWER SAVER | B401103 | $65.30 |
| CT2H CONTROL LABEL | B401109 | $23.09 |
| TERMINAL BLOCK 2 POSITION | B401034 | $6.50 |
| RESET SWITCH | B401100 | $47.30 |
| BELT WIRE CONVEYOR 10.5"X25" | B204272 | $226.20 |
| 1 1/4" SNAP BUSHING | B400330 | $0.62 |
| MOTOR FAN | B401211 | $93.10 |
| BEARING, TEFLON 5/16 | B401355 | $8.84 |
| CORD WARNING LABEL | B401404 | $0.42 |
| SIDE PANEL CT2H | B300123 | $45.55 |
| LEGS BLACK 1" 1/4-20 | B400300 | $18.10 |
| CT2 RESET LABEL | B401093 | $5.93 |
| LABEL 1 X 11.845 | B405004 | $9.36 |
Product Downloads
CAD / REVIT
